ALCIUS
Pressure Switches
PRESSURE SWITCH REFER NOTES FOR APPLICATIONS TRINARY 3/8"-24 UNF
A19-8851
Description

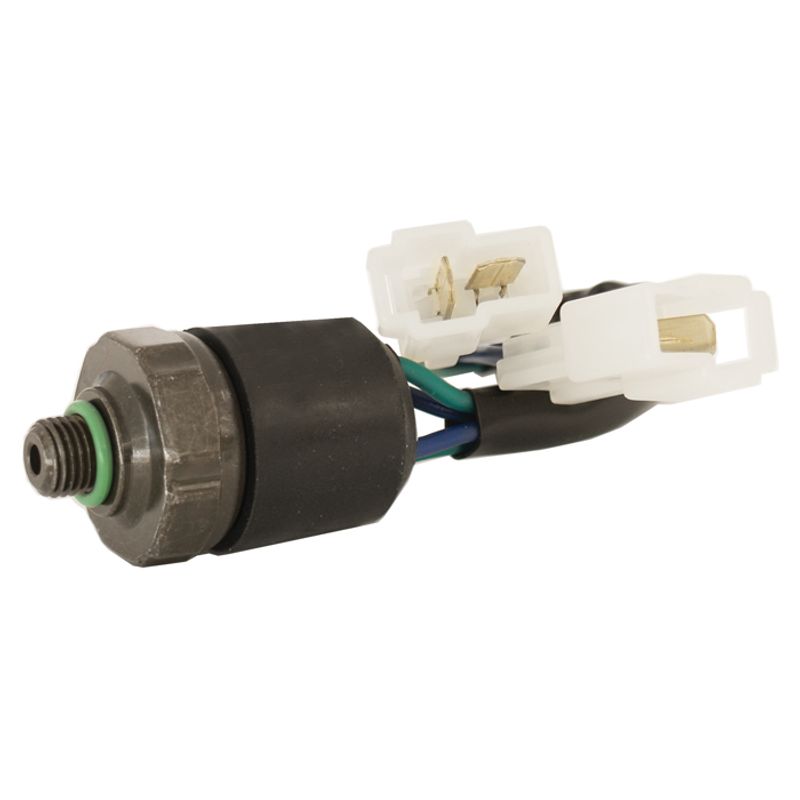

This Alcius trinary pressure switch features a male 3/8"-24 UNF thread and is designed for R134a A/C systems. It provides low pressure cut-off, high pressure cut-off, and electric fan control. The switch has a low-pressure cut-off at 2.0kg and a high-pressure cut-off at 17.0kg.
Specifications
| LP | 2.0KG |
| HP | 17.0KG |
| THREAD | Male 3/8"-24UNF |
| Unit of Measure | EACH |
Documents
Weight: 0.15 kg
