Maradyne
Electric Fans & Motors

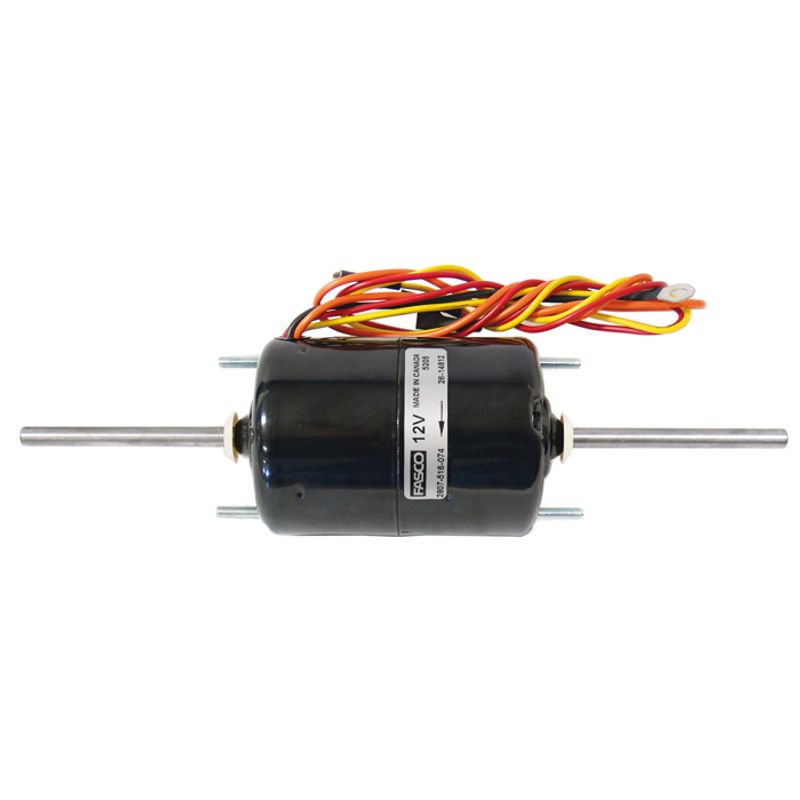

ELECTRIC MOTOR UNIVERSAL 12V DUAL SHAFT 3 SPD VENTED CW
A11-1330
Description
This Maradyne universal electric motor is a 12V, dual-shaft, 3-speed unit with a vented housing for heat dissipation. It features clockwise rotation and is designed for versatile mounting in various AC and HVAC fan applications.
Specifications
| VOLTAGE | 12 |
| SHAFT DIAMETER | 8 |
| SHAFT LENGTH | 80 |
| OVERALL LENGTH | 595 |
| HOUSING LENGTH | 105 |
| HOUSING DIAMETER | 75 |
| Unit of Measure | EACH |
Documents
Weight: 2.5 kg
