Sanden International Aust
Compressors

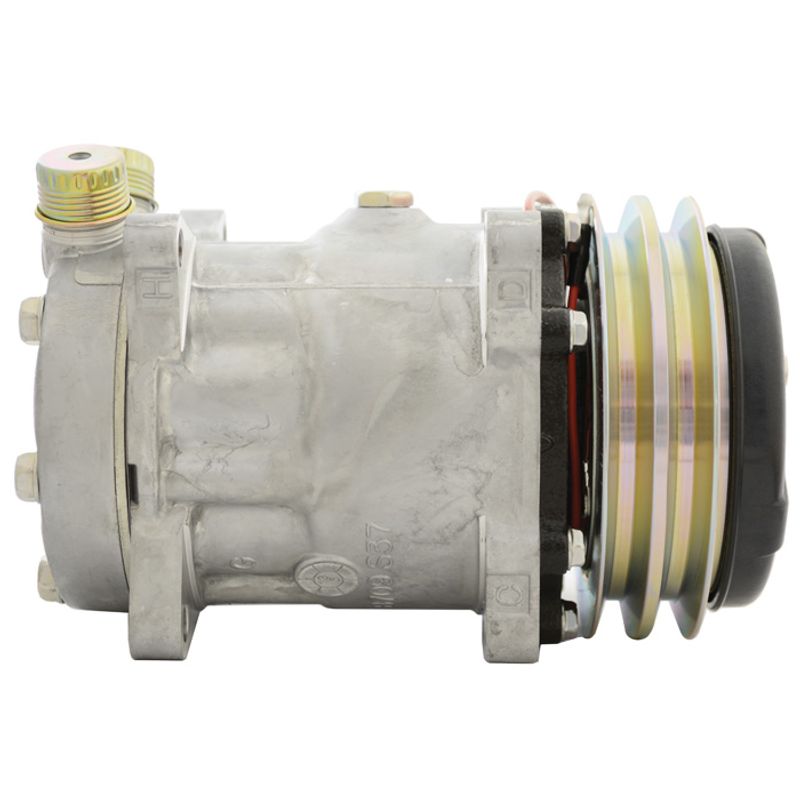

SANDEN COMP SD7H15 12V 2GA 132MM EM VTO CB HEAD
A10-A976
Description
This Sanden SD7H15 air conditioning compressor operates on 12V and features a 2GA (2 groove A-section V-belt) clutch with a 132mm diameter. It is designed with an ear mount and VTO (Vertical Tube O-ring) CB head fittings. The compressor has a displacement of 154.98 cc/rev and is compatible with R134a refrigerant.
Specifications
| MAKE | SANDEN |
| MODEL | SD7H15 |
| VOLTS | 12 |
| CLUTCH | 2GA |
| GROOVES DIAMETER | 132 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | EAR |
| OIL AND BEARING | A20-8939 |
| Unit of Measure | EACH |
Documents
Weight: 6 kg
