Sanden International Aust
Compressors

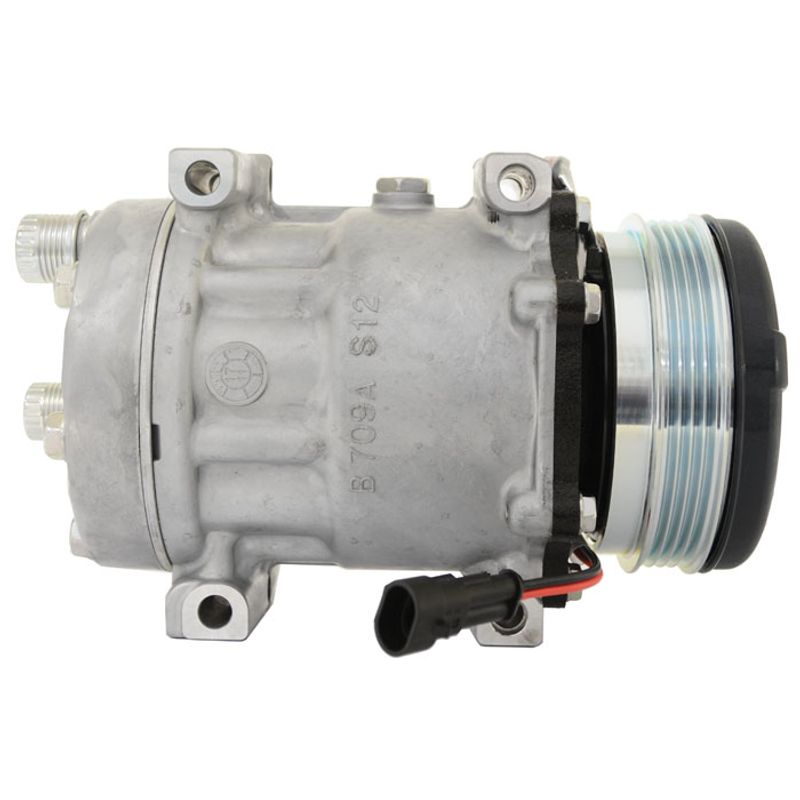

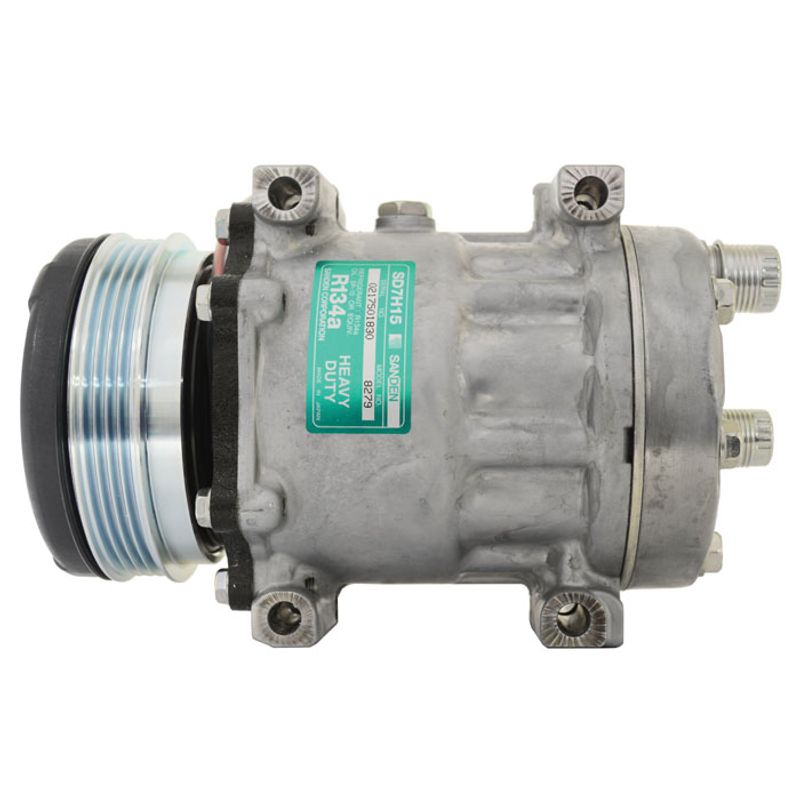

SANDEN COMP SD7H15 DM HORIZONTAL PAD 12V 4PV 112MM SD7H15
A10-8279
Description
This Sanden SD7H15 air conditioning compressor operates on a 12V electrical system and features a 4-groove (4PV) clutch with a 112mm diameter. It is designed for direct mount applications with a horizontal pad fitting. The compressor uses PAG 100 or SP15 oil and R134a refrigerant.
Specifications
| MAKE | SANDEN |
| MODEL | SD7H15 |
| VOLTS | 12 |
| CLUTCH | 4PV |
| GROOVES DIAMETER | 112 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | PAD |
| Unit of Measure | EACH |
Weight: 6 kg
