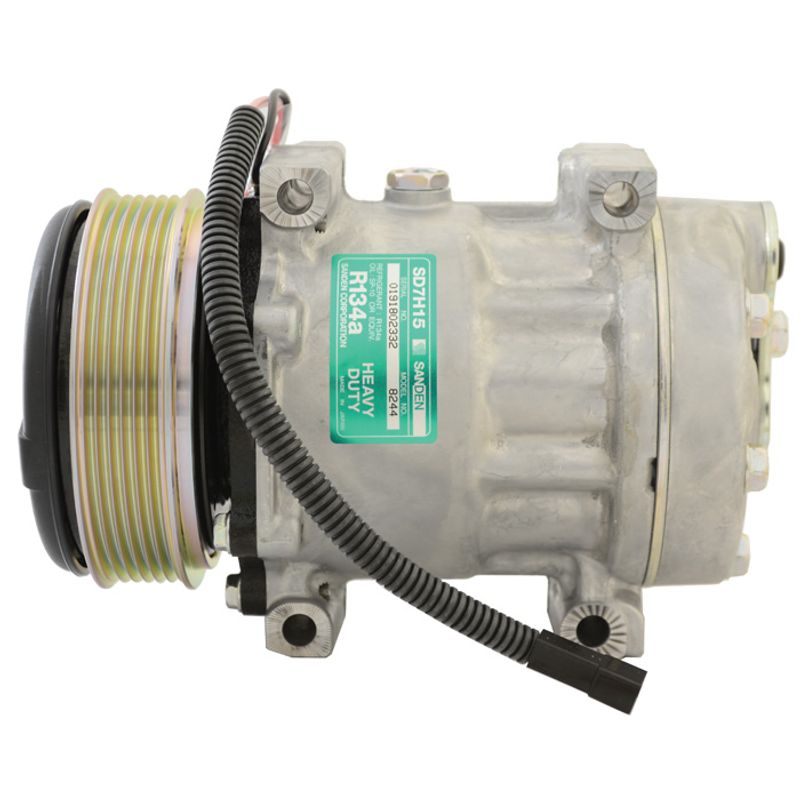

COMP MASSEY FERGUSON SD7H15 12V 6PV 119MM
A10-8244
Description
This Sanden SD7H15 fixed displacement air conditioning compressor is designed for Massey Ferguson applications, operating on a 12V system. It features a 6-groove (6PV) clutch with a 119mm pulley diameter and a PAD-style compressor mount. The compressor has a displacement of 154.9 ccm and uses PAG 46 oil with a quantity of 190 ccm.
Specifications
| MAKE | SANDEN |
| MODEL | SD7H15 |
| VOLTS | 12 |
| CLUTCH | 6PV |
| GROOVES DIAMETER | 119 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | PAD |
| Unit of Measure | EACH |
| Weight | 7.62 |
Documents
Weight: 7.62 kg
