Sanden International Aust
Compressors
SANDEN COMP SD7H15 24V 8PV 119MM DM HTO MD HEAD
A10-8144
Description

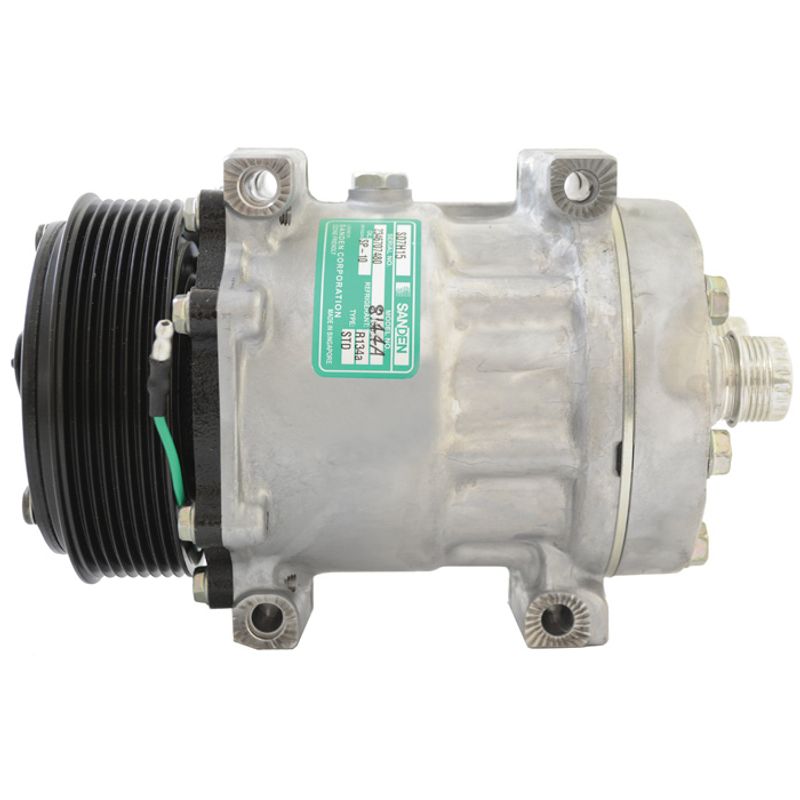

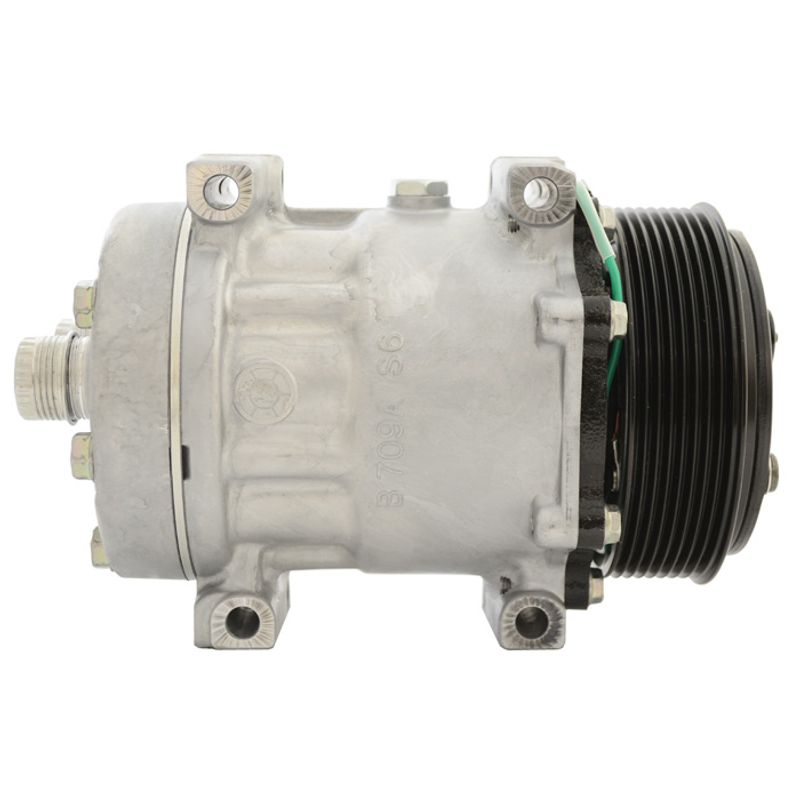

This Sanden SD7H15 compressor is a 24V unit with an 8-groove serpentine clutch and a 119mm diameter pulley. It features a direct mount (DM) configuration with HTO fittings and an MD cylinder head. The compressor is designed for R134a refrigerant systems and has a displacement of 155 cc.
Specifications
| MAKE | SANDEN |
| MODEL | SD7H15 |
| VOLTS | 24 |
| CLUTCH | 8PV |
| GROOVES DIAMETER | 119 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | DM |
| OIL AND BEARING | A20-8939 |
| Unit of Measure | EACH |
Documents
Weight: 6 kg
