SANDEN TRUCK TGA TGS 02-09 VSTO 24V 8PV 119MM SD7H15
A10-8117A
Description

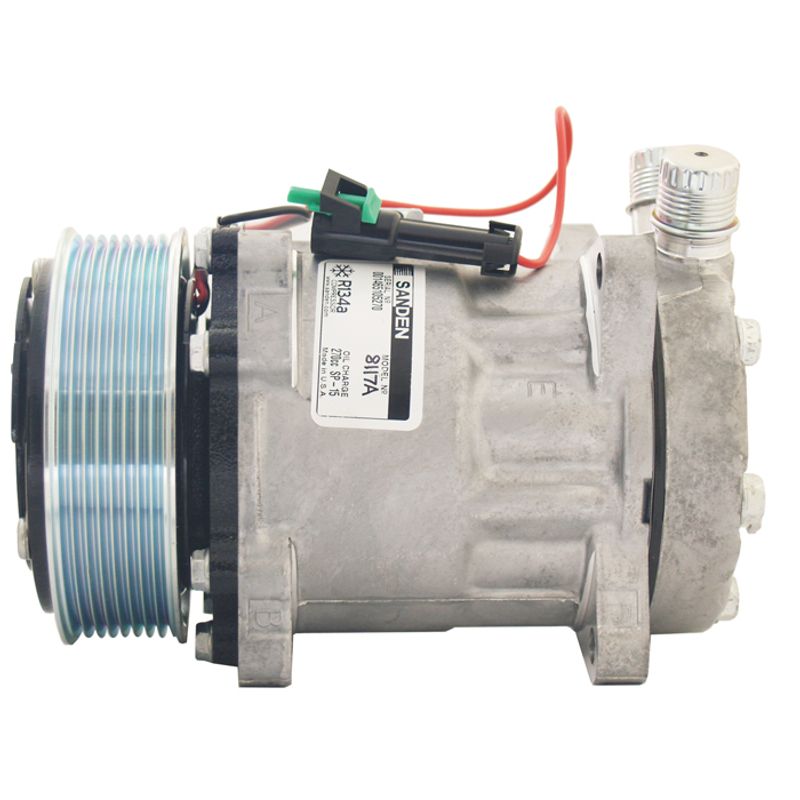

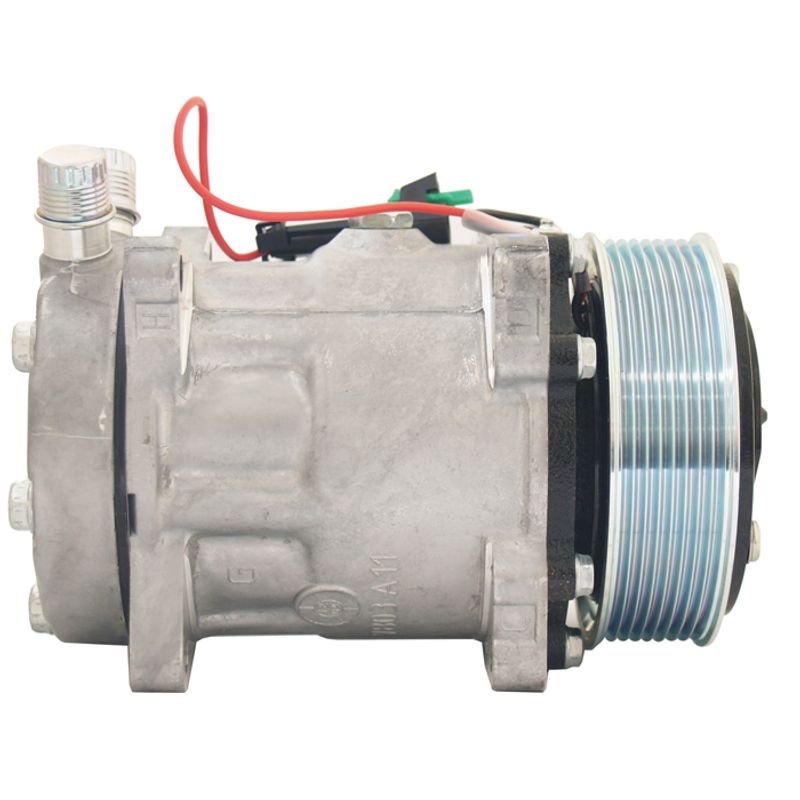

This is a Sanden SD7H15 fixed displacement compressor featuring a 24V, 8-groove clutch with a 119mm pulley diameter. It is designed with an ear mount and is suitable for R134a refrigerant systems. The compressor has a displacement of 155cc and utilises SP-10 or SP-15 PAG oil.
Specifications
| MAKE | SANDEN |
| MODEL | SD7H15 |
| VOLTS | 24 |
| CLUTCH | 8PV |
| GROOVES DIAMETER | 119 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | EAR |
| OIL AND BEARING | A20-8939 |
| Unit of Measure | EACH |
Documents
Weight: 1 kg
