COMP SD7H15 12V 125MM 10PV CLUTCH VOR VARIOUS APPLICATION AC EDGE BY SANDEN
A10-8035AC
Description

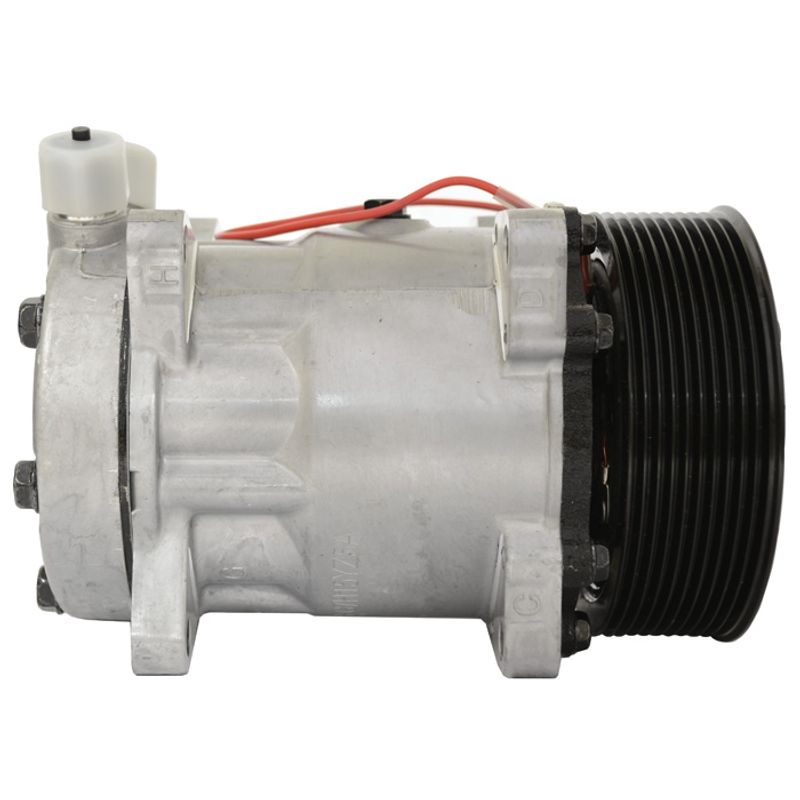

This AC Edge by Sanden SD7H15 compressor operates on a 12V system and features a 125mm, 10-groove serpentine clutch. It is designed with an ear mount and VOR (Vertical O-Ring) fittings. The compressor is compatible with R134a refrigerant and uses PAG100 oil, offering a displacement of 155.00cc.
Specifications
| MAKE | AC EDGE BY SANDEN |
| MODEL | SD7H15 |
| VOLTS | 12 |
| CLUTCH | 10PV |
| GROOVES DIAMETER | 125 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | EAR |
| OIL AND BEARING | A20-8939 |
| Unit of Measure | EACH |
| Weight | 7.81 |
Weight: 7.81 kg
