AC Edge
Compressors
AC EDGE BY SANDEN COMP SD7H15 12V 132MM 2A SECT VOR WITH RUBBER
A10-8031AC
Description

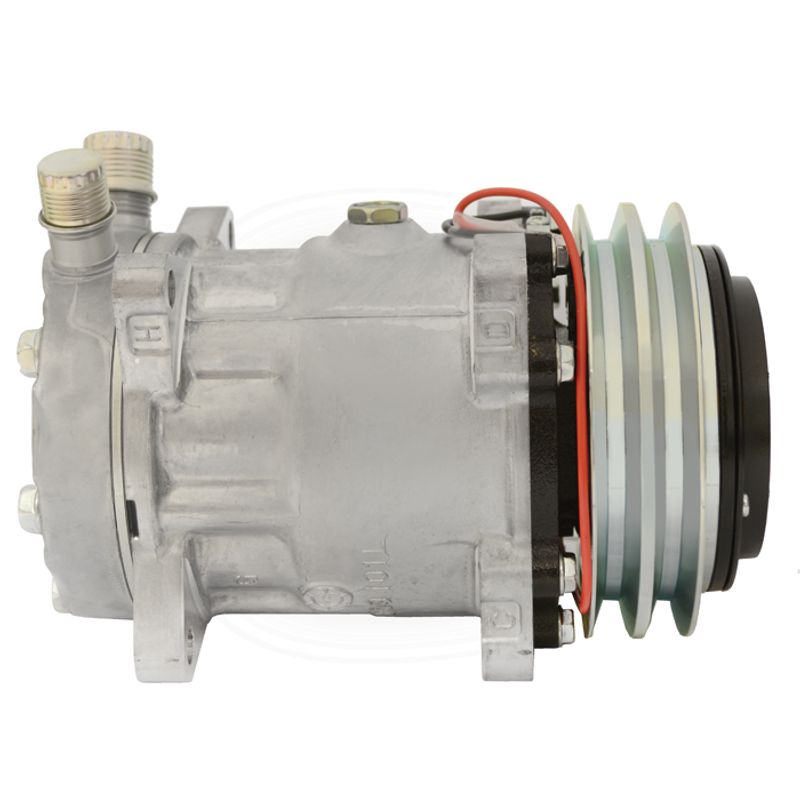

This AC Edge by Sanden SD7H15 compressor operates on a 12V system and features a 132mm, 2A section V-belt clutch. It is designed with a VOR (Vertical O-Ring) fitting type and an ear mount. The compressor is compatible with R134a refrigerant and uses PAG100 oil, offering a displacement of 155.00cc.
Specifications
| MAKE | ACEDGE |
| MODEL | SD7H15 |
| VOLTS | 12 |
| CLUTCH | 2A |
| GROOVES DIAMETER | 132 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | VOR |
| Unit of Measure | EACH |
| Weight | 7.55 |
Weight: 7.55 kg
