Sanden International Aust
O-Rings
SANDEN COMP SD5H14 12V 132MM 2A SECTION CLUTCH FITT VERT ORING (D/C A06-6153)
A10-6626
Description

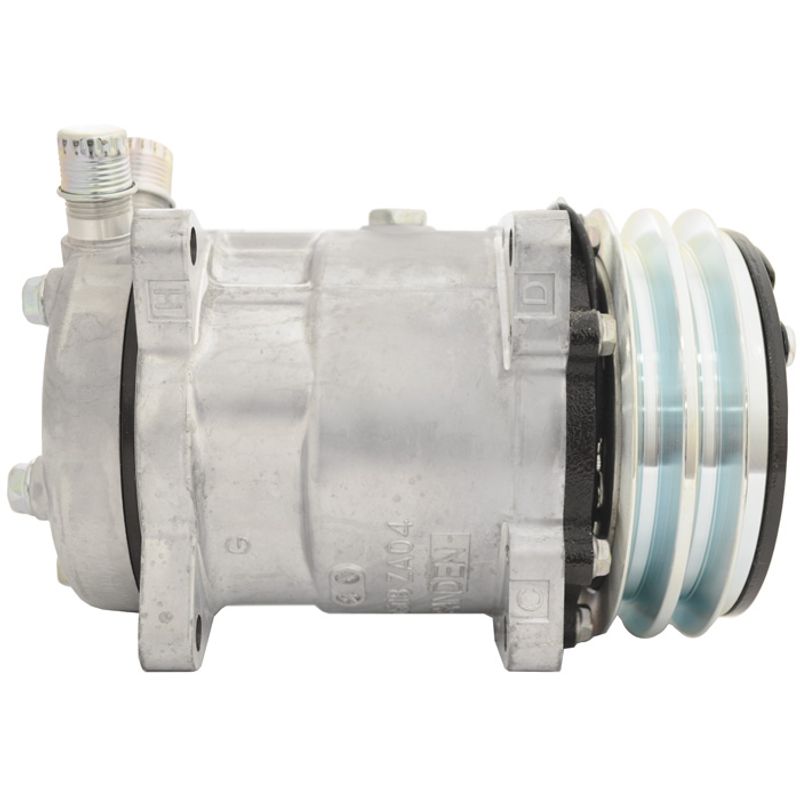

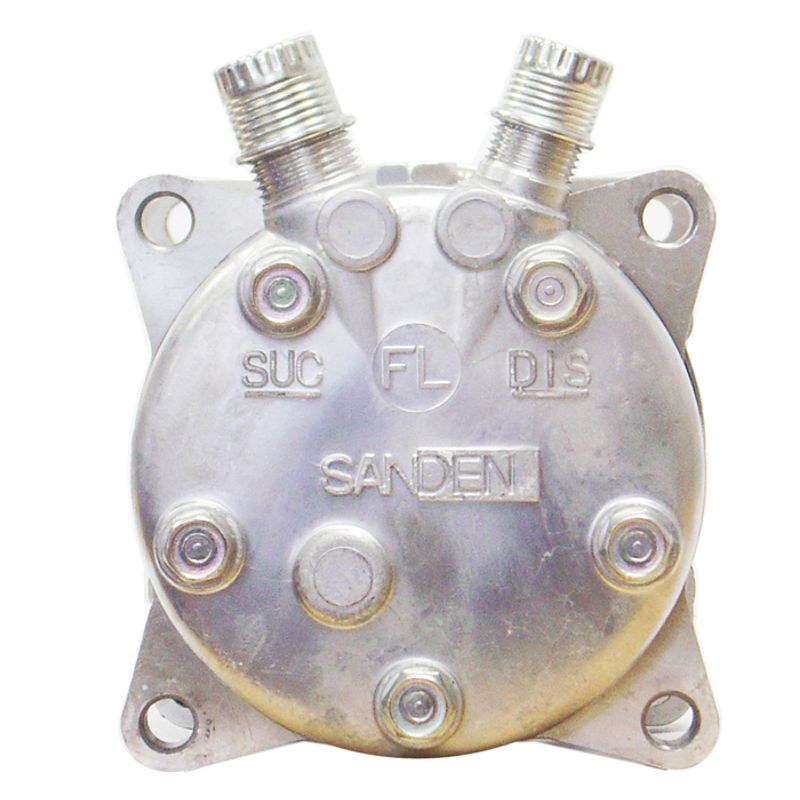

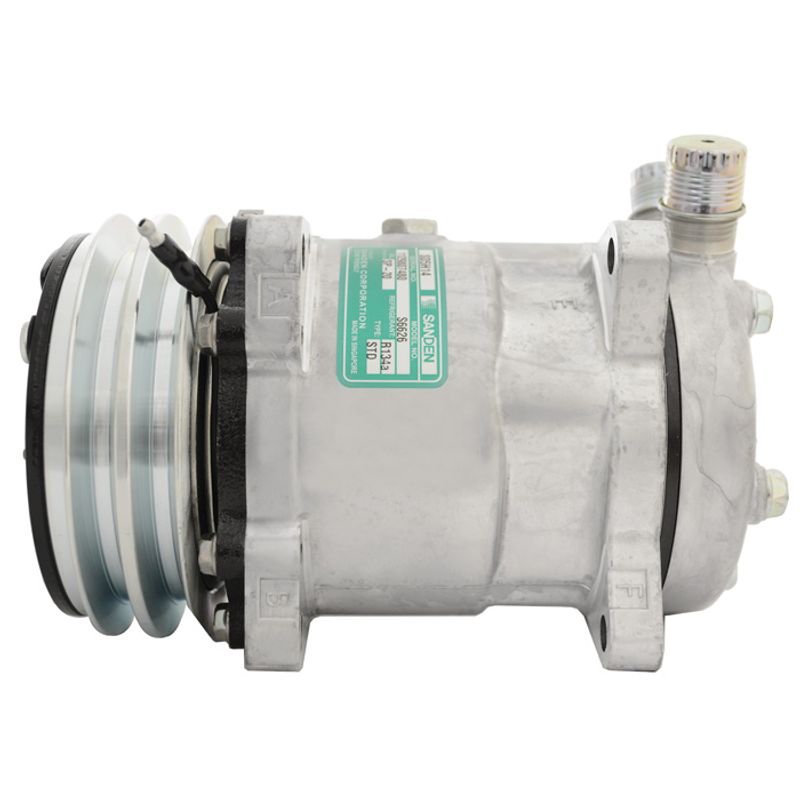

The Sanden SD5H14 A/C compressor is a 5-piston fixed displacement unit, operating on a 12V electrical system with a 132mm diameter, 2A section V-belt clutch. It features vertical O-ring fittings and an ear mount configuration, designed for various heavy-duty and commercial mobile air conditioning applications.
Specifications
| MAKE | SANDEN |
| MODEL | SD5H14 |
| VOLTS | 12 |
| CLUTCH | 2GA |
| GROOVES DIAMETER | 132 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | EAR |
| OIL AND BEARING | A20-8939 |
| Unit of Measure | EACH |
| Weight | 7.7 |
| Dimensions | 0.012 |
Weight: 7.7 kg
