Sanden International Aust
Compressors
SANDEN COMP MACK DM VOR JD HEAD 12V 6PV 125MM SD7H15HD
A10-4883
Description

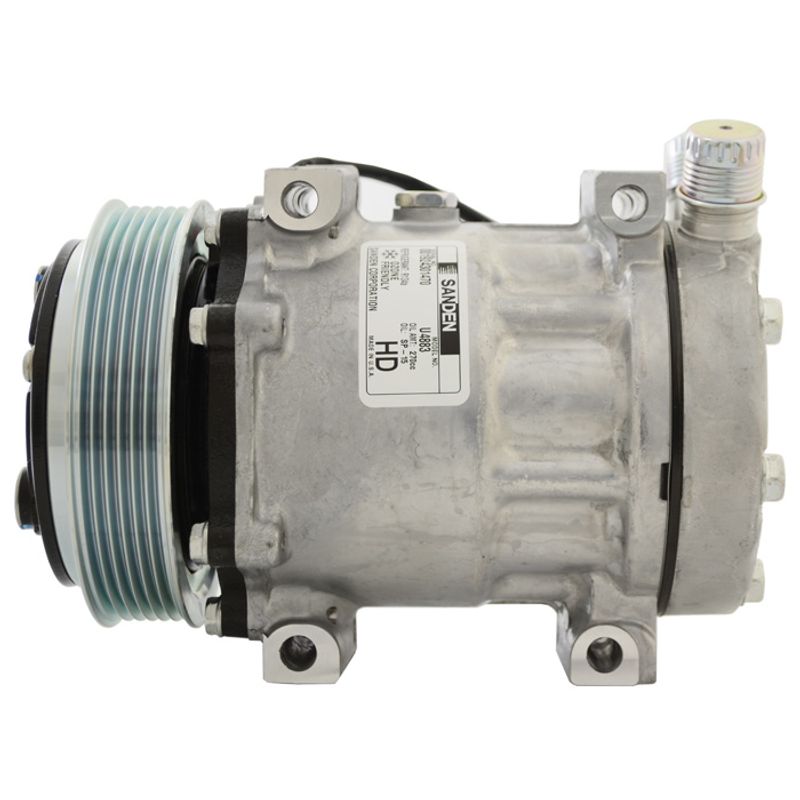

This Sanden SD7H15HD A/C compressor is a 12-volt unit featuring a 6-groove serpentine clutch with a 125mm diameter. It is designed with a JD (Vertical Pad) head for specific mounting and hose routing. The compressor has a 9.5 cubic inch displacement and utilises PAG 100 oil and R134a refrigerant.
Specifications
| MAKE | SANDEN |
| MODEL | SD7H15SHD |
| VOLTS | 12 |
| CLUTCH | 6PV |
| GROOVES DIAMETER | 125 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | PAD |
| Unit of Measure | EACH |
Documents
Weight: 6 kg
