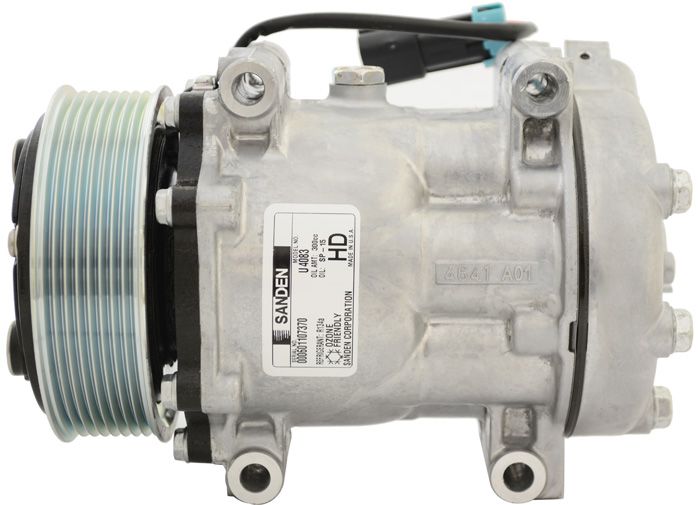

SANDEN COMP SD7H15 24V 8PV 152MM DM HTO MD HEAD
A10-4795
Description
This Sanden SD7H15-SHD (Super Heavy Duty) air conditioning compressor operates on a 24V electrical system. It features an 8-groove (8PV) serpentine clutch with a 152mm pulley diameter and a direct mount configuration with an MD head and horizontal 1"-14 UNF fittings.
Specifications
| MAKE | SANDEN |
| MODEL | SD7H15 |
| VOLTS | 24 |
| CLUTCH | 8PV |
| GROOVES DIAMETER | 152 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | PAD |
| Unit of Measure | EACH |
Weight: 6 kg
