SANDEN COMP WESTERN STAR 4800 4900 15.2L 08-10 6900 12V 8PV 119MM SD7H15SHD
A10-4073
Description

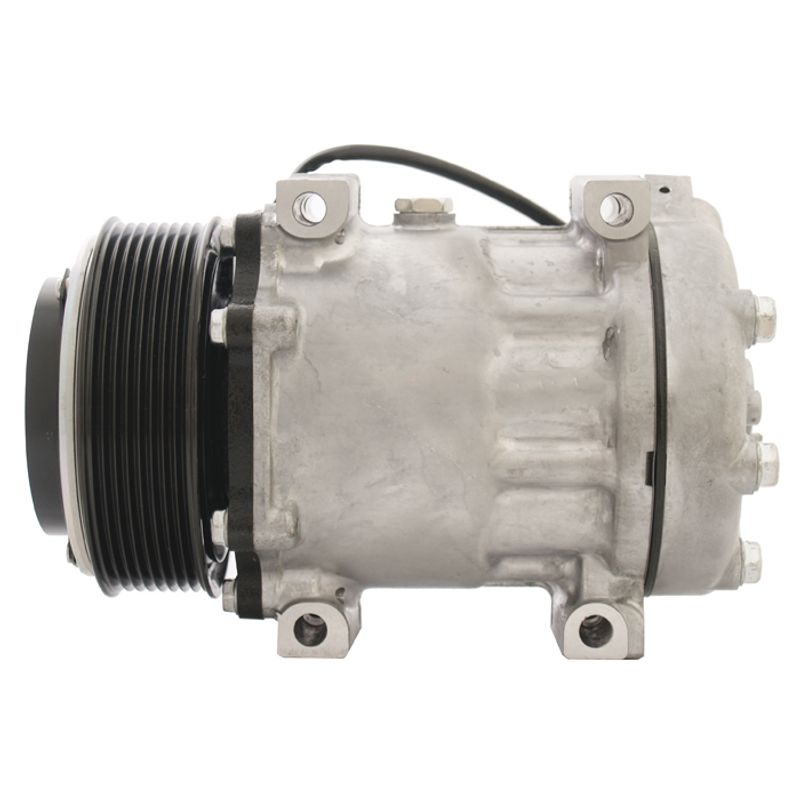

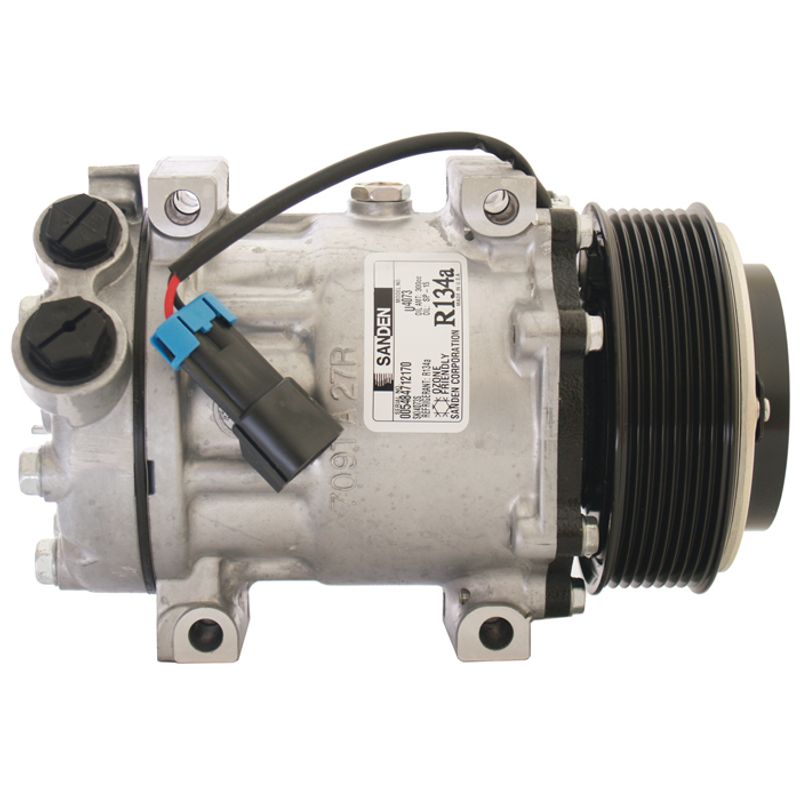

This Sanden SD7H15SHD compressor is a 12V unit featuring an 8-groove serpentine clutch with a 119mm diameter. It is a Super Heavy Duty, direct mount compressor designed for R134a refrigerant systems. The compressor has a displacement of 155 cc and a WH cylinder head with vertical 3/4" x 7/8" internal thread port fittings.
Specifications
| MAKE | SANDEN |
| MODEL | SD7H15 |
| VOLTS | 12 |
| CLUTCH | 8PV |
| GROOVES DIAMETER | 119 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | DM |
| OIL AND BEARING | A20-8939 |
| Unit of Measure | EACH |
| Weight | 7.65 |
| Dimensions | 0.012 |
Documents
Weight: 7.65 kg
