Sanden International Aust
Compressors
SANDEN COMP CROP DUSTER 12V 2A 132MM SD7H15 HTOR
A10-1002
Description

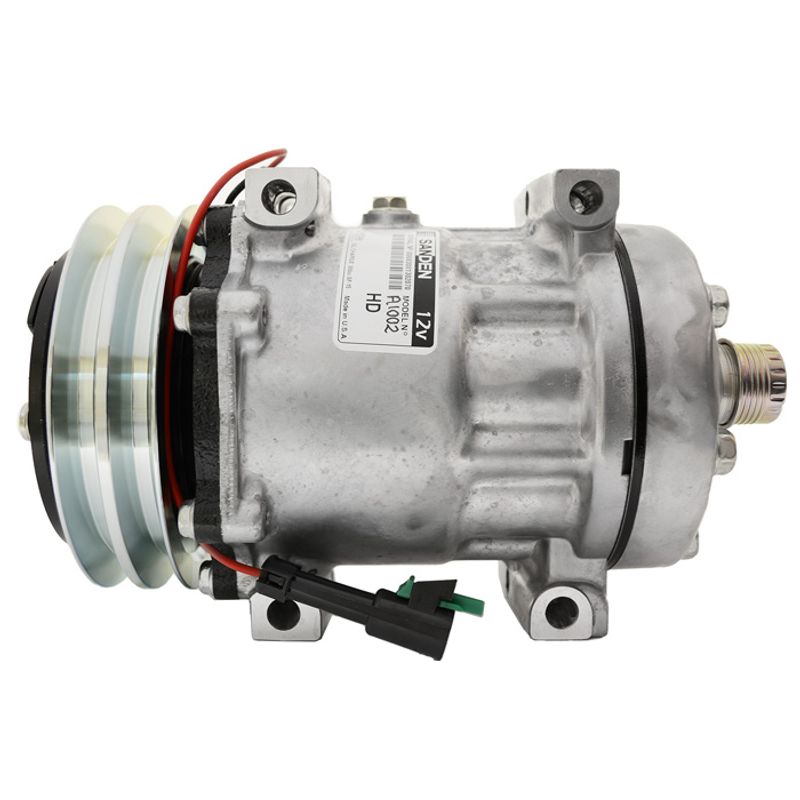

This Sanden SD7H15 is a 12V, 7-piston fixed displacement air conditioning compressor with a 2A clutch. It features a 132mm pulley diameter and HTOR (Horizontal O-Ring) fittings. The compressor has a displacement of 155cc and is suitable for R134a refrigerant.
Specifications
| MAKE | SANDEN |
| MODEL | SD7H15 |
| VOLTS | 12V |
| CLUTCH | 2A |
| GROOVES DIAMETER | 132 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | HTOR |
| Unit of Measure | EACH |
Weight: 6 kg
