ALCIUS
Compressors
COMP SUITS TOYOTA COASTER HBZ30 HZB50 4.2L 90-03 24V 7PV 150MM 10P30C
A09-9852
Description

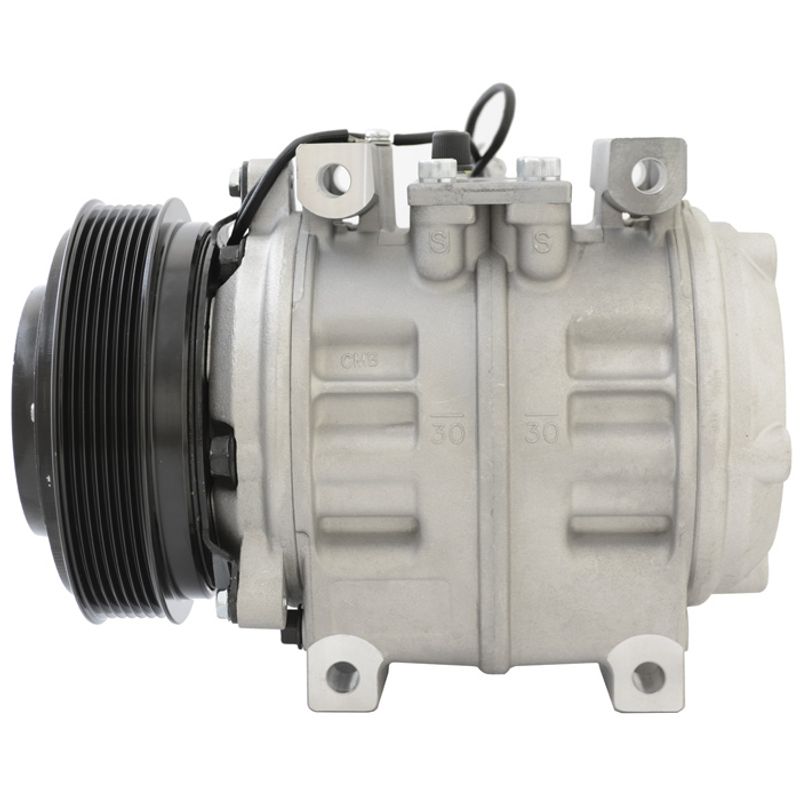

This ALCIUS A/C compressor, model 10P30C, is designed for 24V systems and features a 7-groove, 150mm diameter clutch pulley. It is a pad-mount compressor with a displacement of 300 cubic centimetres and 10 cylinders. The unit operates with R134a refrigerant and requires 400cc of lubricant.
Specifications
| MAKE | DENSO |
| MODEL | 10P30C |
| VOLTS | 24 |
| CLUTCH | 7PV |
| GROOVES DIAMETER | 150 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | PAD |
| OIL AND BEARING | A20-8938 |
| Unit of Measure | EACH |
Documents
Weight: 6 kg
