Denso
Compressors
COMP FREIGHTLINER CORANDO WESTERN STAR 12V 8PV 165MM 10S15C
A09-9713GQ
Description

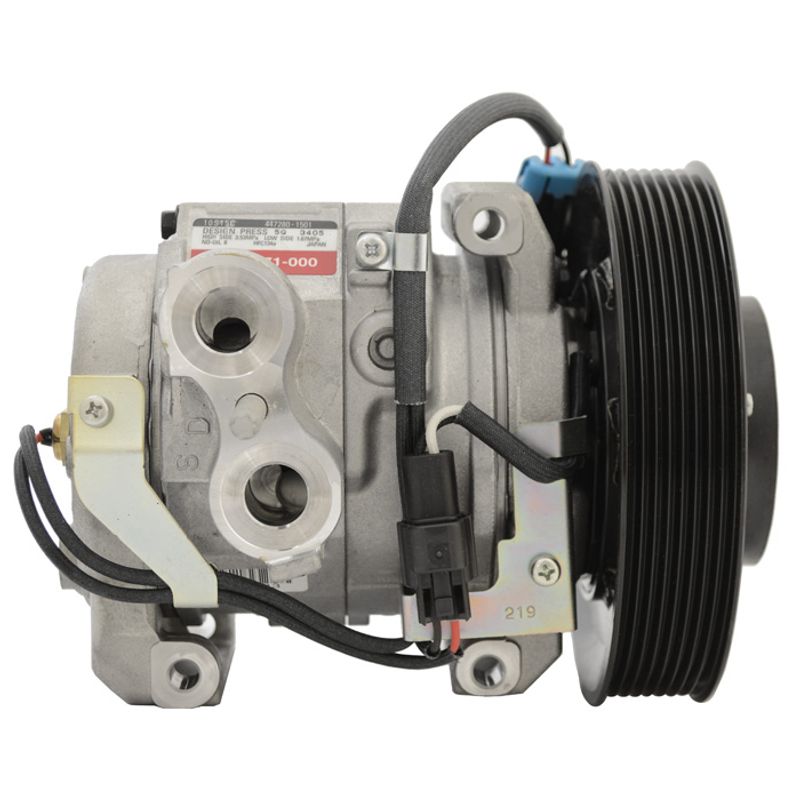

This Denso 10S15C air conditioning compressor is a 12V unit equipped with an 8-groove (8PV) clutch and a 165mm pulley diameter. It is designed for R134a refrigerant systems and uses PAG 46 oil with a 130cc factory charge. The compressor features a direct mount, pad-style fitting.
Specifications
| MAKE | DENSO |
| MODEL | 10S15C |
| VOLTS | 12 |
| CLUTCH | 8PV |
| GROOVES DIAMETER | 165 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | PAD |
| OIL AND BEARING | A20-8938 |
| Unit of Measure | EACH |
| Weight | 7.61 |
Documents
Weight: 7.61 kg
