Denso
Compressors
COMP TOYOTA HIACE KDH 2.5L 3.0L 05-19 12V 7PV 123MM 10S17C
A09-9686GQ
Description

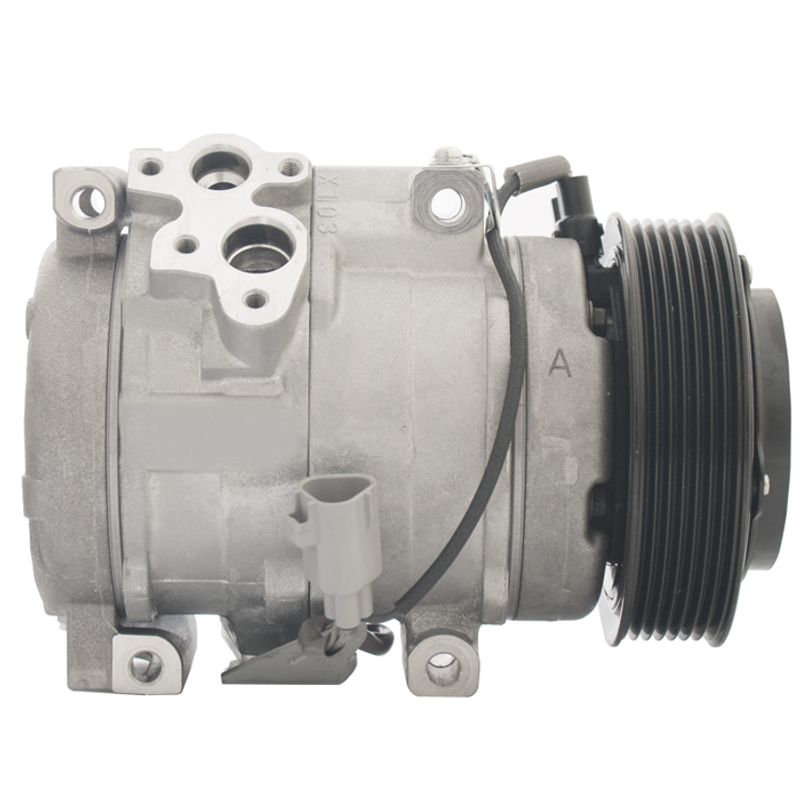

This Denso 10S17C air conditioning compressor is a 12V unit featuring a 7-groove (7PV) ribbed pulley with a 123mm diameter. It is designed for direct mounting and operates with R-134a refrigerant. The compressor includes a magnetic clutch and uses PAG 46 oil.
Specifications
| MAKE | DENSO |
| MODEL | 10S17C |
| VOLTS | 12 |
| CLUTCH | 7PV |
| GROOVES DIAMETER | 123 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | DM |
| OIL AND BEARING | A20-8938 |
| Unit of Measure | EACH |
| Weight | 7.12 |
Documents
Weight: 7.12 kg
