Delphi
Compressors

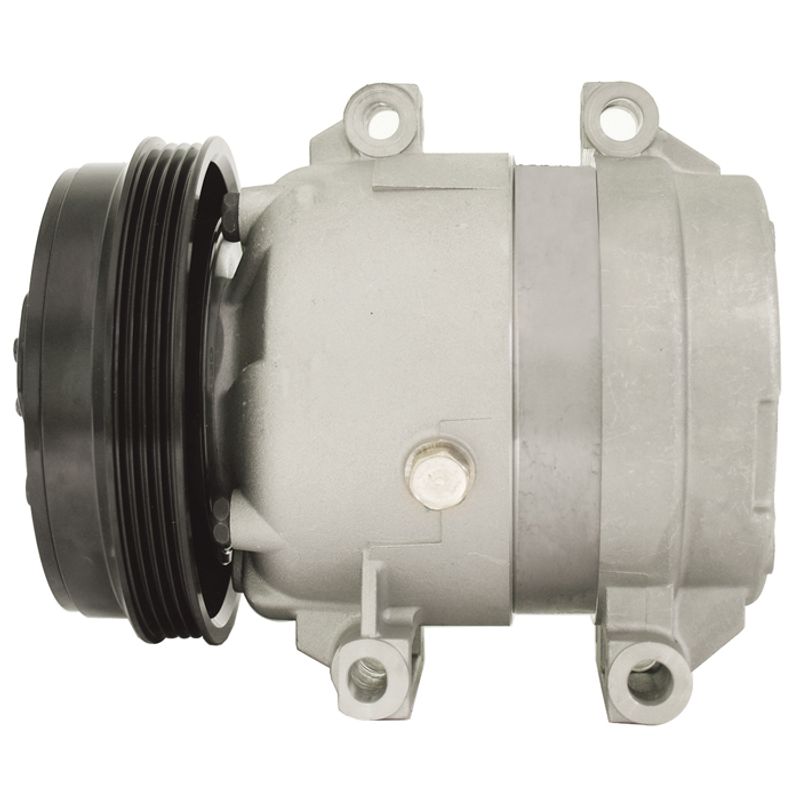

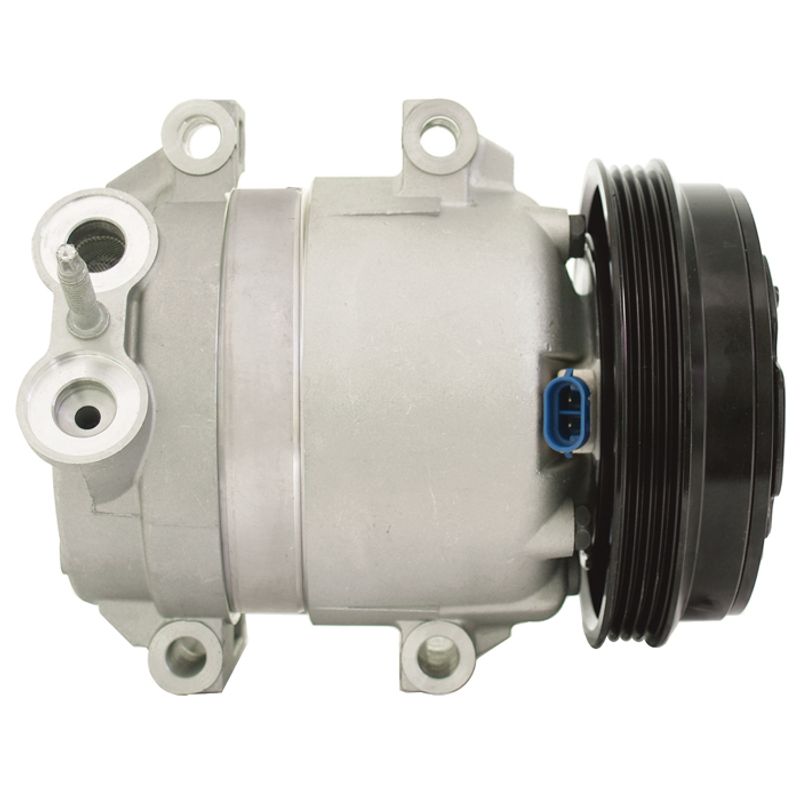

COMP HOLDEN COMMODORE VZ 6.0L 04-06 8MM STUD 12V 4PV 146MM CVC
A09-9222GQ
Description
This Delphi CVC air conditioning compressor is a 12V unit featuring a 4-groove (4PV) clutch with a 146mm diameter. It is designed for R134a refrigerant systems and mounts via an 8mm stud fitting. This compressor is engineered for direct replacement in compatible vehicles.
Specifications
| MAKE | DELPHI |
| MODEL | CVC |
| VOLTS | 12 |
| CLUTCH | 4PV |
| GROOVES DIAMETER | 146 |
| COMPRESSOR MOUNT-HEAD/FITTINGS | DM |
| OIL AND BEARING | A20-8939 |
| Unit of Measure | EACH |
Documents
Weight: 6 kg
