Denso
Thermostats and TX Valves

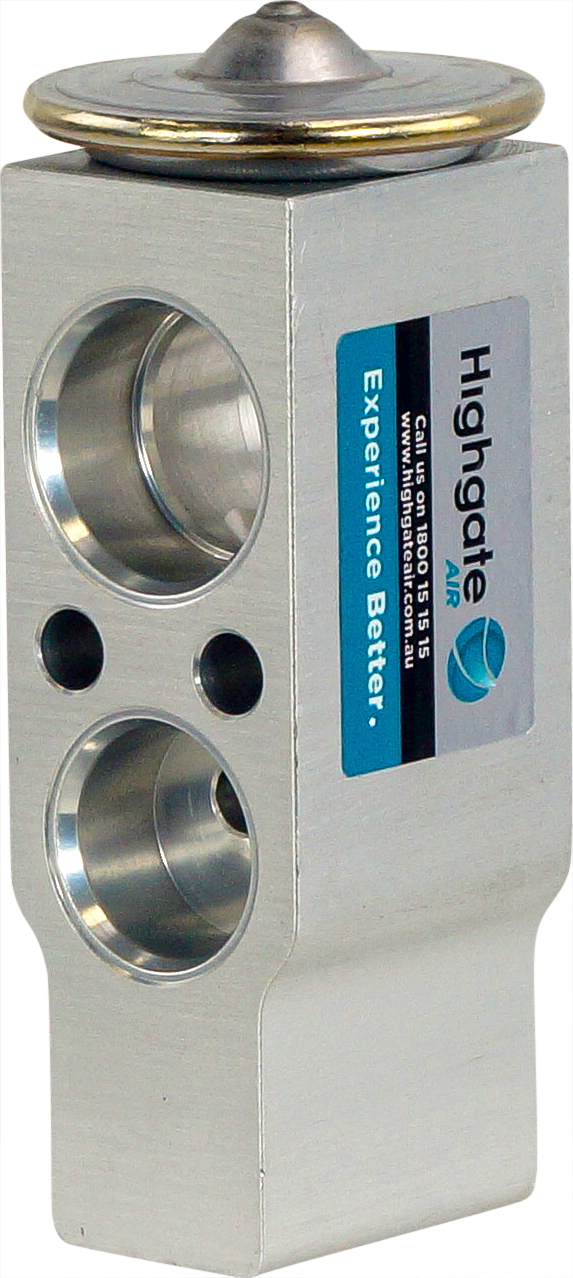

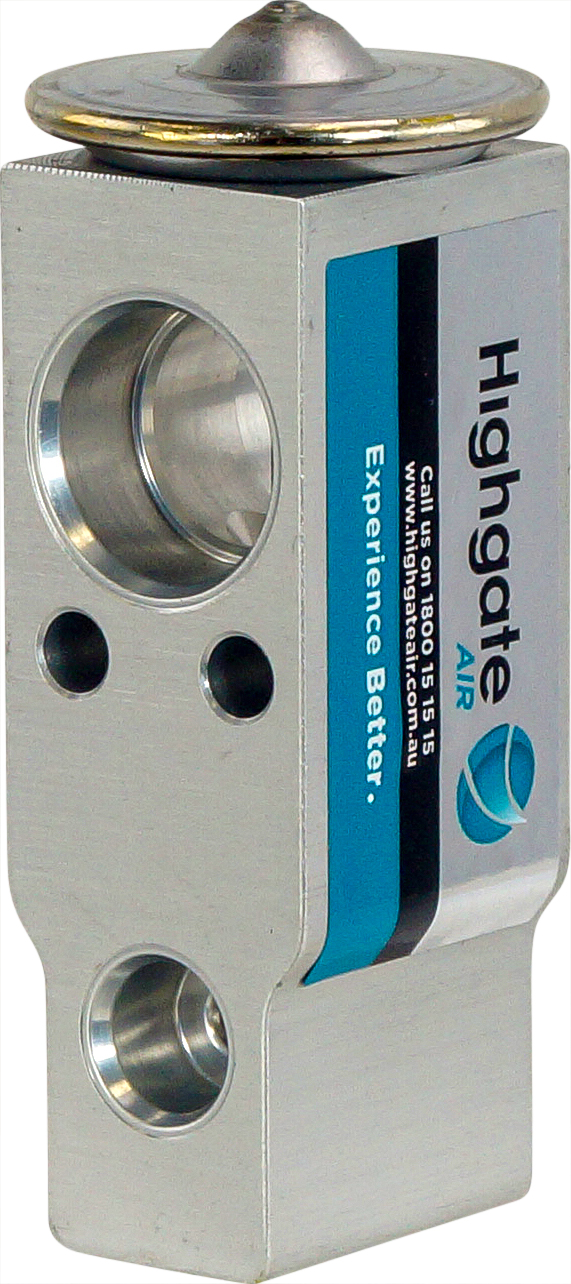

VALVE, TX BLOCK, PAD, DENSO
VA-48945
Description
This Denso TX block pad valve decompresses and cools hot, high-pressure liquid refrigerant, regulating its flow to ensure the refrigerant gas at the evaporator outlet achieves a suitable heating degree. Denso expansion valves are designed to improve fuel efficiency through high-efficiency system components. It features a block-pad style.
Specifications
| inlet fitting | #6 (10.10mm) |
| outlet fitting | #8 (15.40mm - 15.50mm) |
| suction inlet fitting | #10 (18.20mm - 18.30mm) |
| suction outlet fitting | #10 (18.30mm) |
| tx type | Block |
| tx style | Block - Pad |
| tonnage | 1 Ton |
Weight: 0.3 kg
