Hino Thermostats and TX Valves

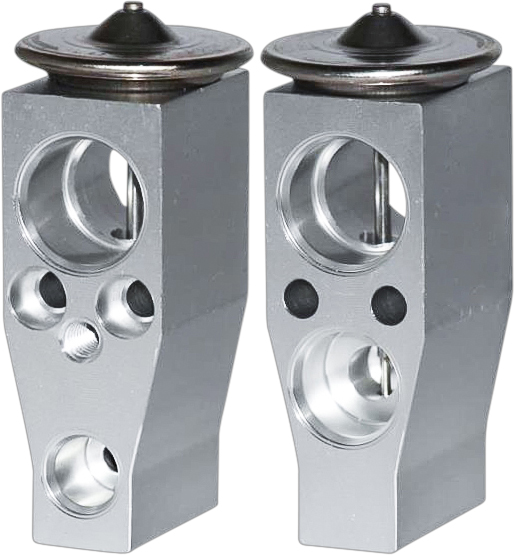

VALVE, TX BLOCK, PAD, HINO 300 SERIES (LATE)

VALVE, TX BLOCK, PAD, HINO 300 SERIES (LATE)

VA-48875

Pricing

Sign in for trade pricing

View Full Details & Add to Enquiry

Description

This block-type thermal expansion valve is designed for Hino 300 Series vehicles, regulating refrigerant flow into the evaporator for efficient air conditioning. It features a flange mount design with specific O-ring inlet and outlet dimensions.

Specifications

Valve TypeFlange Mount - Block
Rating1 Ton
Hose Side Inlet10mm
Hose Side Outlet18mm
Evaporator Side Inlet15mm
Evaporator Side Outlet18mm
OEM Cross-referencesHino S885151070, Denso 447500-3750, Denso 447500-2700, Denso 475-0506, Four Seasons 39283, Texas Truck AC 450-6597, Hino 447500-0020, Hino 447500-1390AC

Vehicle / Equipment Applications

Hino 300 Series (2003-2011, 2011 Onwards)Hino Dutro & 300 Series XZU305RHino Dutro & 300 Series XZU307RHino Dutro & 300 Series XZU345RHino Dutro & 300 Series XZU347RHino Dutro & 300 Series XZU404RHino Dutro & 300 Series XZU407RHino Dutro & 300 Series XZU409RHino Dutro & 300 Series XZU414RHino Dutro & 300 Series XZU417RHino Dutro & 300 Series XZU419RHino Dutro & 300 Series XZU427RHino Dutro & 300 Series XZU434RHino Dutro & 300 Series XZU437R

Weight: 0.3 kg
