Volvo
Thermostats and TX Valves

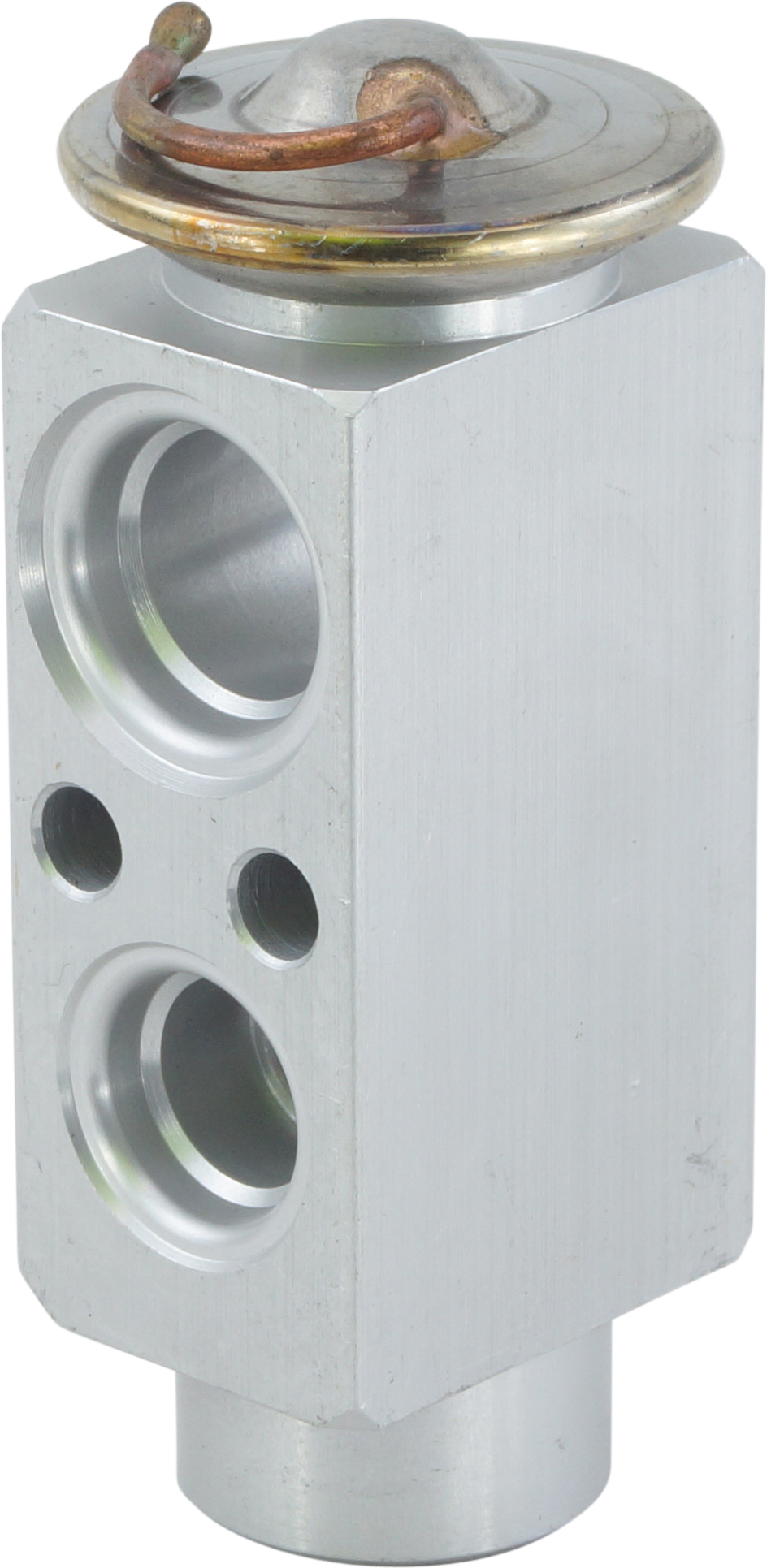

VALVE, TX BLOCK, PAD, VOLVO S60, S80, XC90, V70
VA-46925
Description
This TX block pad valve is designed for automotive air conditioning systems using R134a refrigerant. It features a 1.5-ton capacity and a superheat setting of 2.5. The valve regulates refrigerant flow into the evaporator to maintain optimal cooling performance.
Specifications
| refrigerant | R134a |
| superheat | 2.5 |
| tonnage | 1.5 |
| liquid inlet | 3/8 inch |
| liquid outlet | 1/2 inch |
| suction inlet | 5/8 inch |
| suction outlet | 3/4 inch |
| oem cross references | 30767081, 31291817, 30767018, 31267504 |
Vehicle / Equipment Applications
Volvo S60 (2001-2009)Volvo S80 (2001-2006)Volvo XC90 (2003-2006)Volvo V70 (2000-2004, 2003-2008)Volvo XC70 (2003-)
Weight: 0.3 kg
