Tools & Equipment

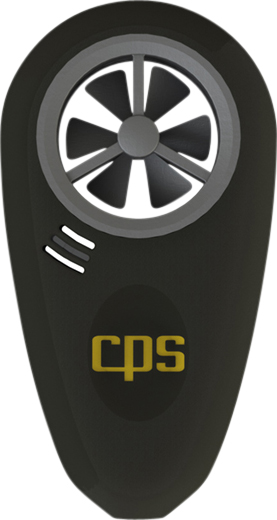

SYSTEM ANALYSER, CPS, AIR FLOW METER, ABM-200
TO-74170
Description
The CPS ABM-200 System Analyser is a portable, wireless airflow and environmental meter designed for HVAC/R technicians. It connects to smartphones and tablets via Bluetooth Smart technology to measure and record various indoor/outdoor conditions.
Specifications
| power supply | Panasonic 3.6V, CR 2450 Coin Cell Lithium Battery. |
| battery life | >500 hours. |
| operational temperature range full accuracy | 0 to 65ºC (-32 to 149ºF). |
| airflow velocity range | 44 to 12,320 fpm (13 - 3,755 mpm). |
| airflow velocity accuracy | ±0.5%. |
| temperature range | -40 to 85ºC (-40 to 185ºF). |
| temperature accuracy | ±0.5ºF (0.4°C). |
| humidity range | 0 to 95%. |
| humidity accuracy | ±3% (or ±4% in some sources). |
| pressure range | 300 to 1100 mbar. |
| pressure accuracy | ±0.12 mbar. |
| wireless connection range | ≤100 ft (30.5 m). |
| compatibility | iPhone, iPad, iPod, and most major Android devices running the CPS Link app. |
| mounting | Ruggedised housing with 1/4" 20 mount fitting for hands-free operation; attachable to EXP-64 extension pole (sold separately). |
| measurements recorded | Temperature Differential, Dry Bulb Temperature, Wet Bulb Temperature, Heat Index, Relative Humidity, Dew Point, Barometric Pressure, Air Density, Indoor vs. Outdoor Conditions, Wind Speed/Direction/Gusts. |
| units of measure | inWC, inHg, psi, mmWC, mmHg, Pa, kPa, mBar, fpm, cfm, l/s, m/s, F, C, RH%, lb/ft3. |
Vehicle / Equipment Applications
Residential HVAC system balancingCommercial HVAC system balancingIndoor air quality assessmentOutdoor environmental condition monitoring
Weight: 1.5 kg
