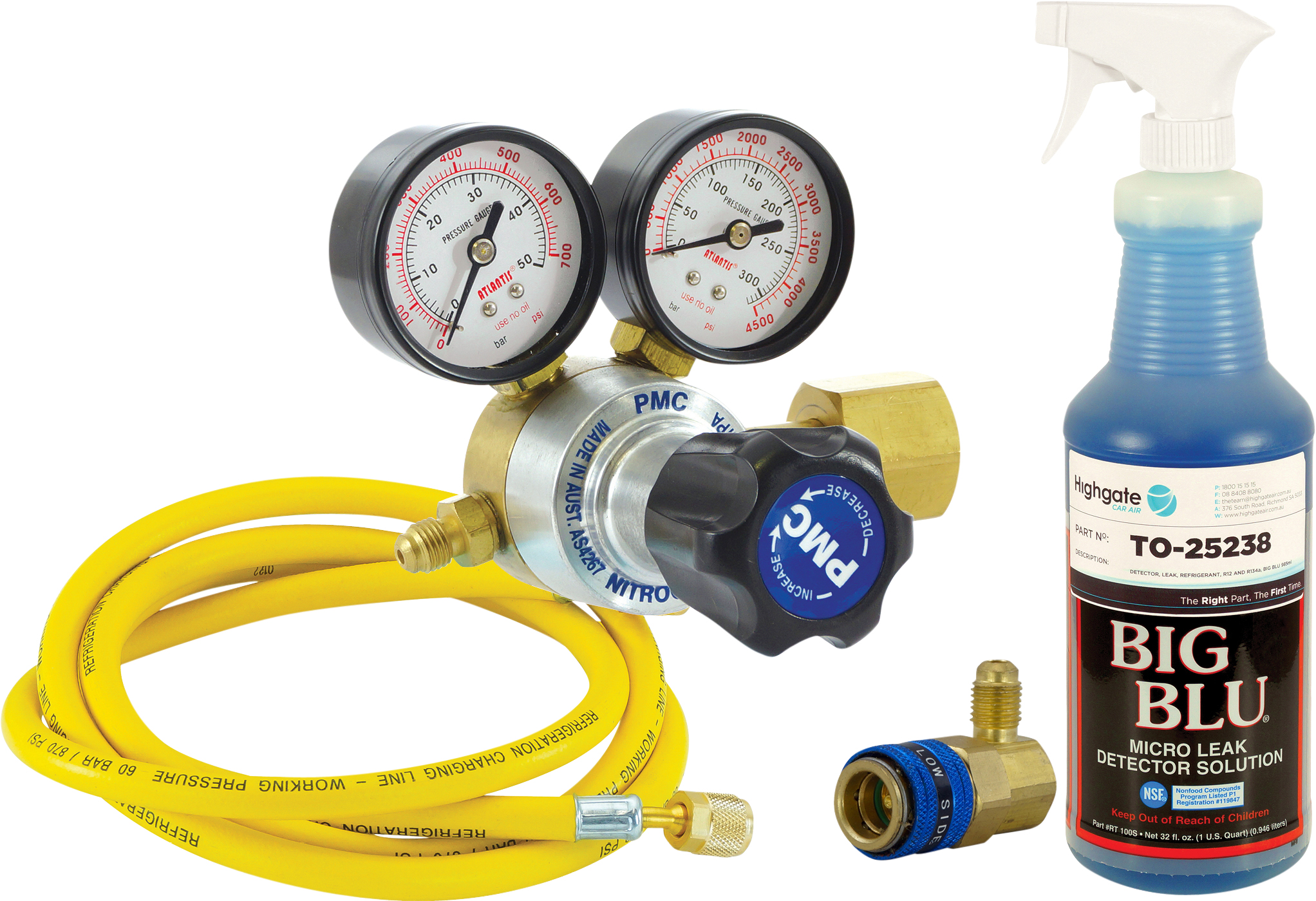

Nitrogen Leak Test Kit
TO-73382
Description
This Nitrogen Leak Test Kit is designed for pressure testing automotive and HVAC/R air conditioning systems to identify leaks before refrigerant charging. It typically includes a 1-valve manifold with a 0-200 PSIG gauge, a nitrogen regulator, service hoses, and high-side automotive snap couplers for R134a and R1234yf systems. The kit utilises pressurised nitrogen to detect leaks, with escaping gas producing an audible indication.
Specifications
| Maximum Pressure | 200 PSIG |
| Gauge | 0-200 PSIG, 3-1/8” diameter |
| Hoses | 6' (180cm) red 1/4” service hose, 15' yellow hose assembly with 1/4” MPT x 1/4” coupler (some kits may have a 25' yellow coiled air hose) |
| Couplers | High-side automotive snap couplers for R134a and R1234yf |
| Compatibility | R134a and R1234yf refrigerant systems |
| Components | Nitrogen regulator, manifold gauge, service hoses, couplers, carrying case |
Vehicle / Equipment Applications
Automotive A/C systemsHVAC/R systemsPre-checking for leaks in mechanical connections, hoses, evaporators, and condensers
Weight: 1.5 kg
