Tools & Equipment

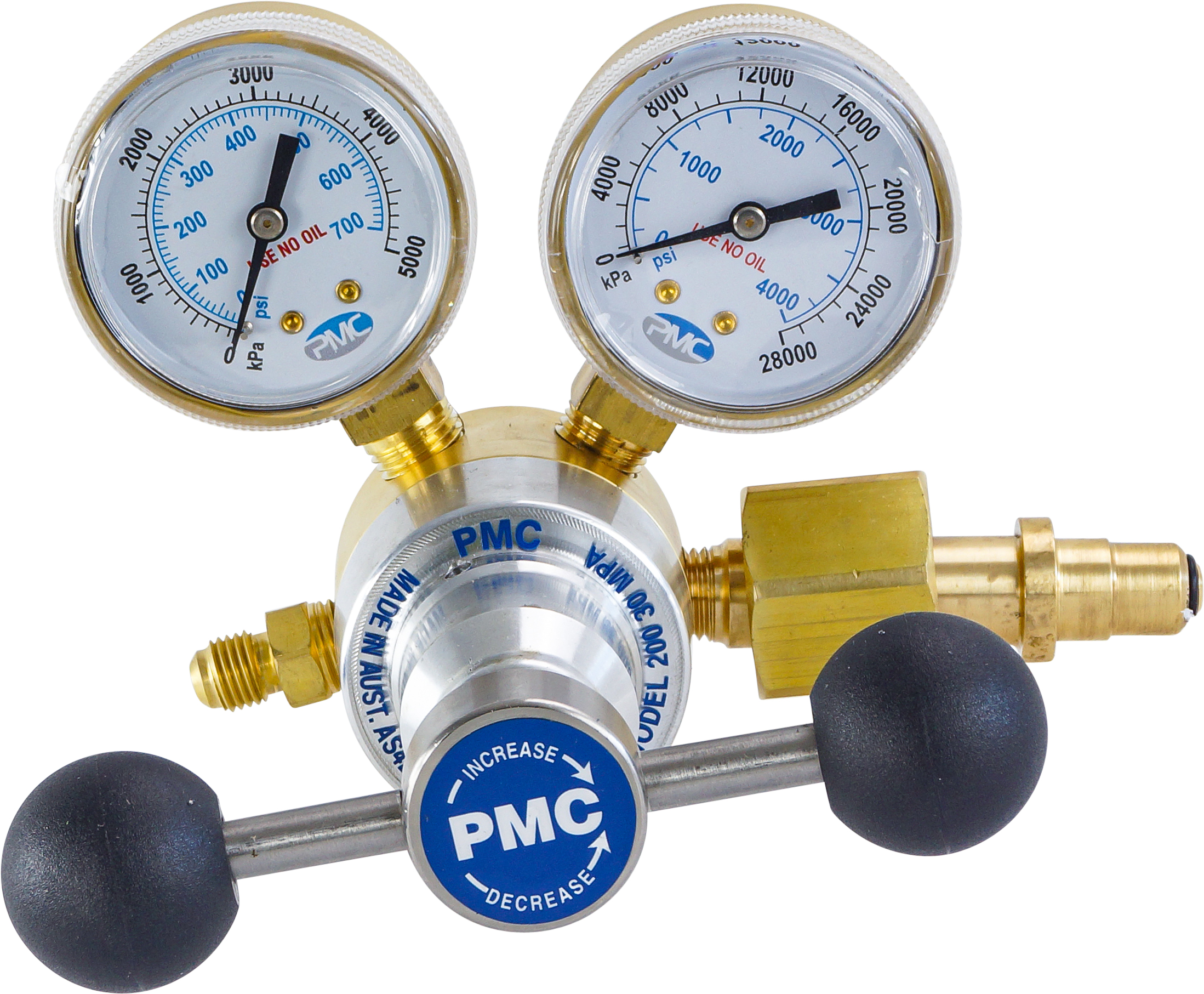

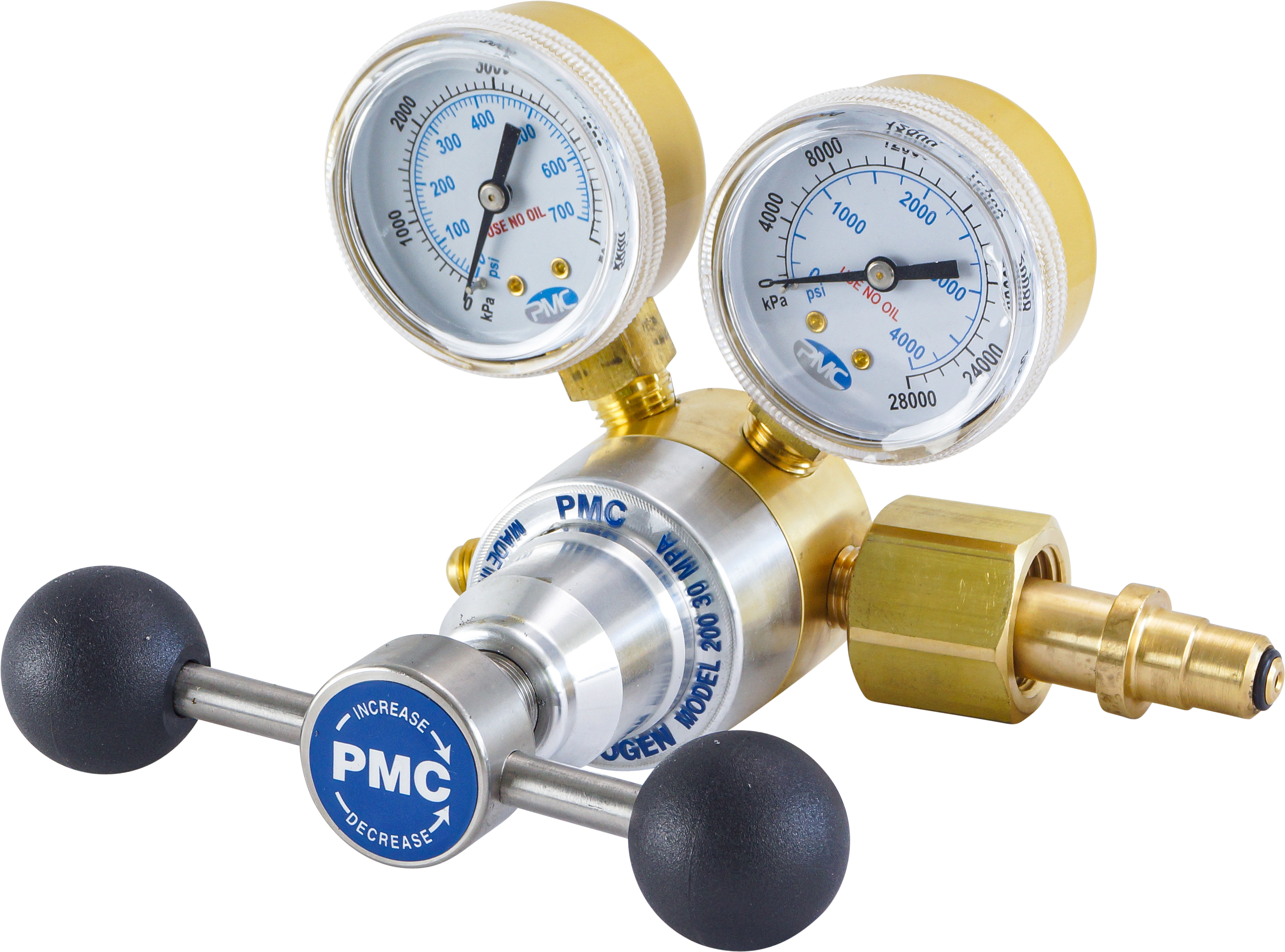

PMC Nitrogen Regulator With T-Bar Handle
TO-66344
Description
This PMC Nitrogen Regulator with T-Bar Handle is a precision-engineered single-stage regulator designed for accurate and safe nitrogen testing in air conditioning and refrigeration systems. It features a T-bar handle for easy pressure adjustment and is constructed from solid brass for durability.
Specifications
| maximum inlet pressure | 300 bar (3000 PSI / 28000 KPa) |
| adjustable outlet pressure range | 0-52 bar (0-750 psi) |
| outlet connection | 1/4" SAE flare |
| inlet connection | CGA580 / Type 50 cylinder connector |
| gauges | Dual 2-inch gauges with protective rubber boots |
| material | Solid brass |
| features | 40 Micron sintered filters, spherical valve system, low friction seat design, brass piston, piston-sensing |
Vehicle / Equipment Applications
HVAC purginginertisationpressure testsleakage testsbrazingsolderingrefrigeration systems
Weight: 1.5 kg
