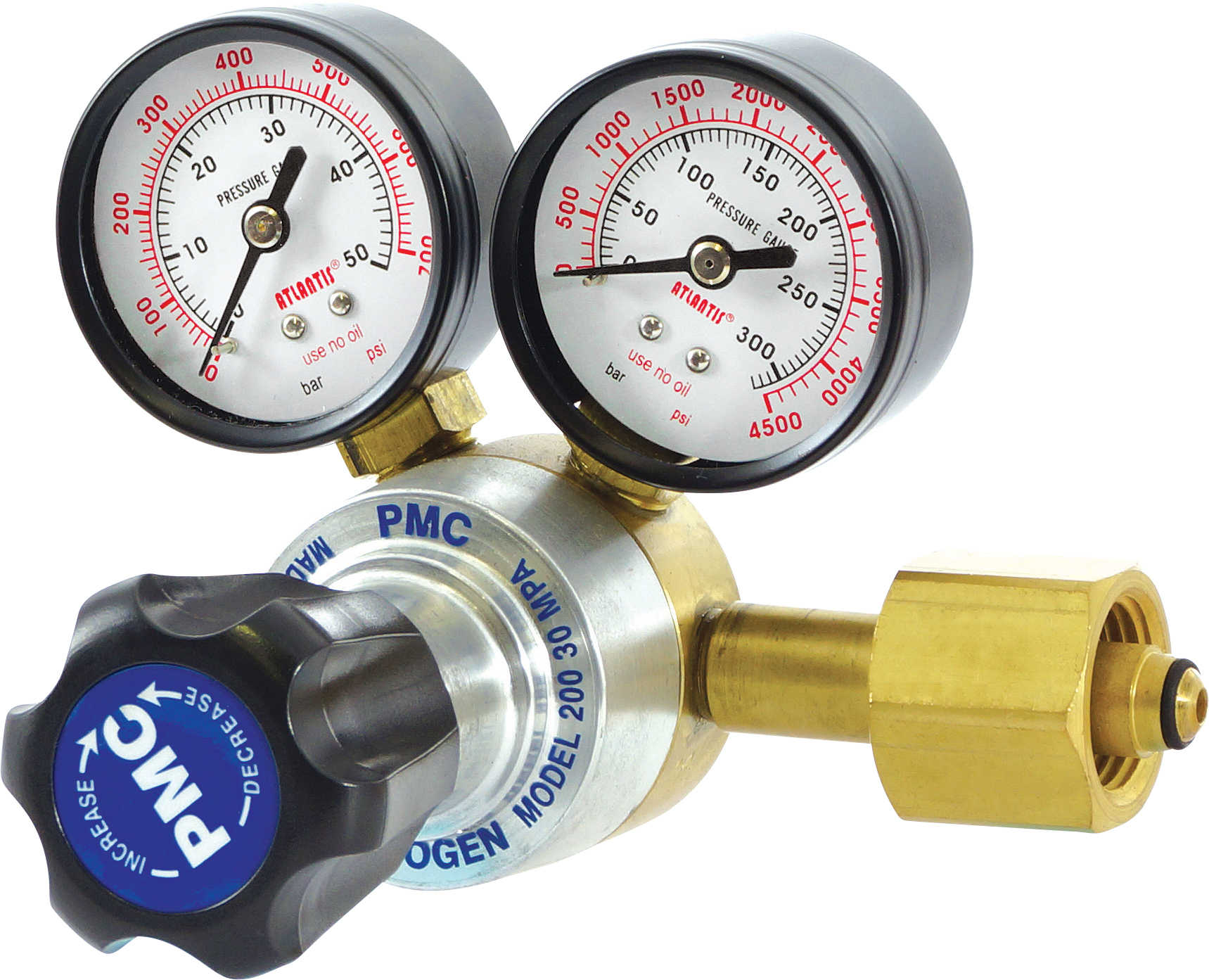

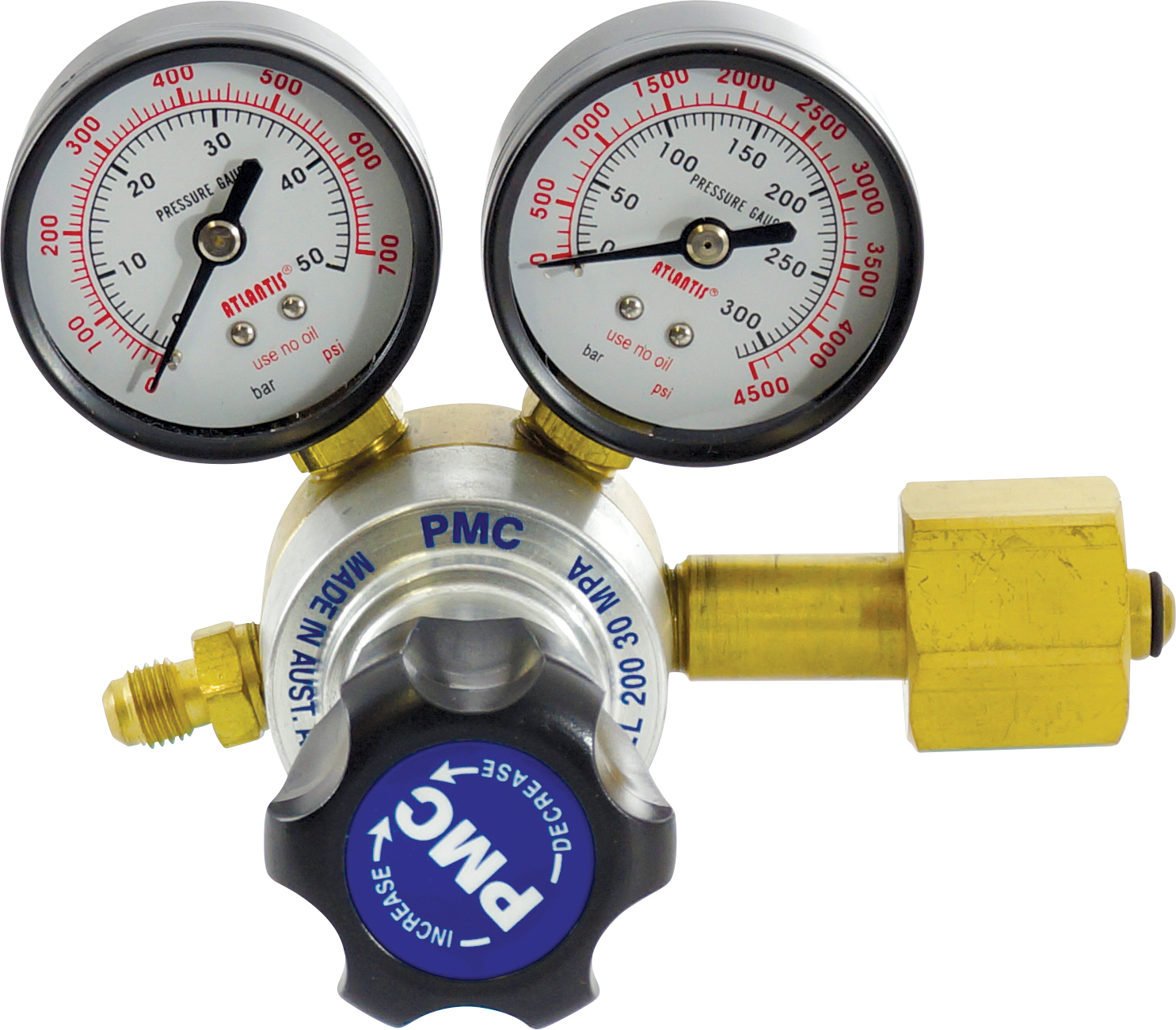

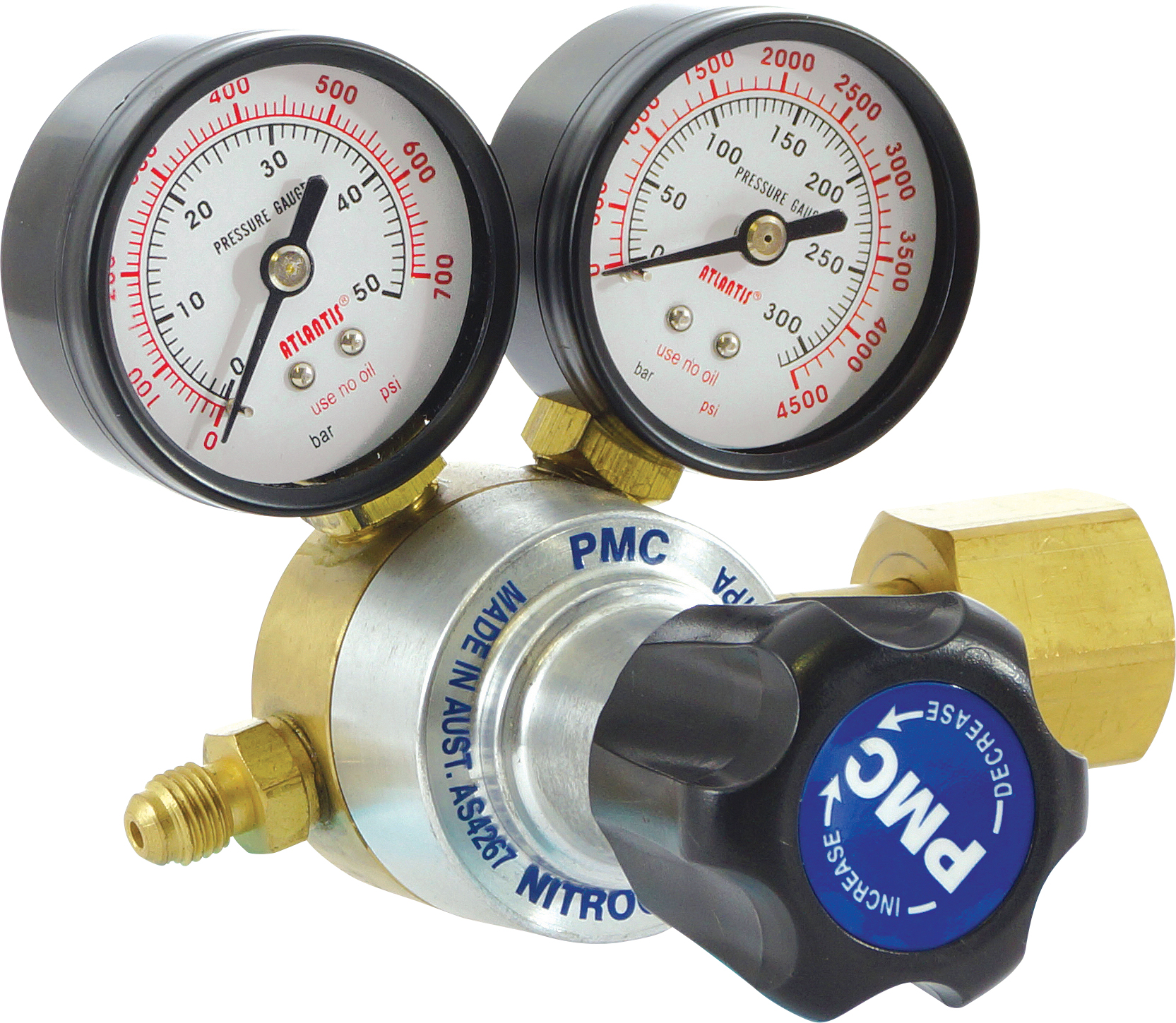

Nitrogen Regulator
TO-66340
Description
This single-stage nitrogen regulator is engineered for pressure testing HVAC/R and automotive A/C systems for leaks when they do not contain refrigerant. It features a 1/4-inch SAE flare outlet port with a control valve and includes high and low-pressure gauges with protective guards for clear, accurate readings.
Specifications
| stages | Single-stage |
| outlet connection | 1/4" SAE flare outlet port with control valve |
| inlet connection | CGA580 (US standard) for nitrogen tanks |
| gauges | 63 mm (2 1/2") gauges with guards |
| high pressure gauge | 4400 psig (300 bar) |
| low pressure gauge | 1000 psig (70 bar) |
| adjustment | T-handle for ease of pressure adjustment |
| compatibility | Can also be used for CO2 with an F36 adaptor |
Vehicle / Equipment Applications
HVAC/R systems for leak testing and pressure testingAutomotive A/C systems for leak testing and pressure testing
Weight: 1.5 kg
