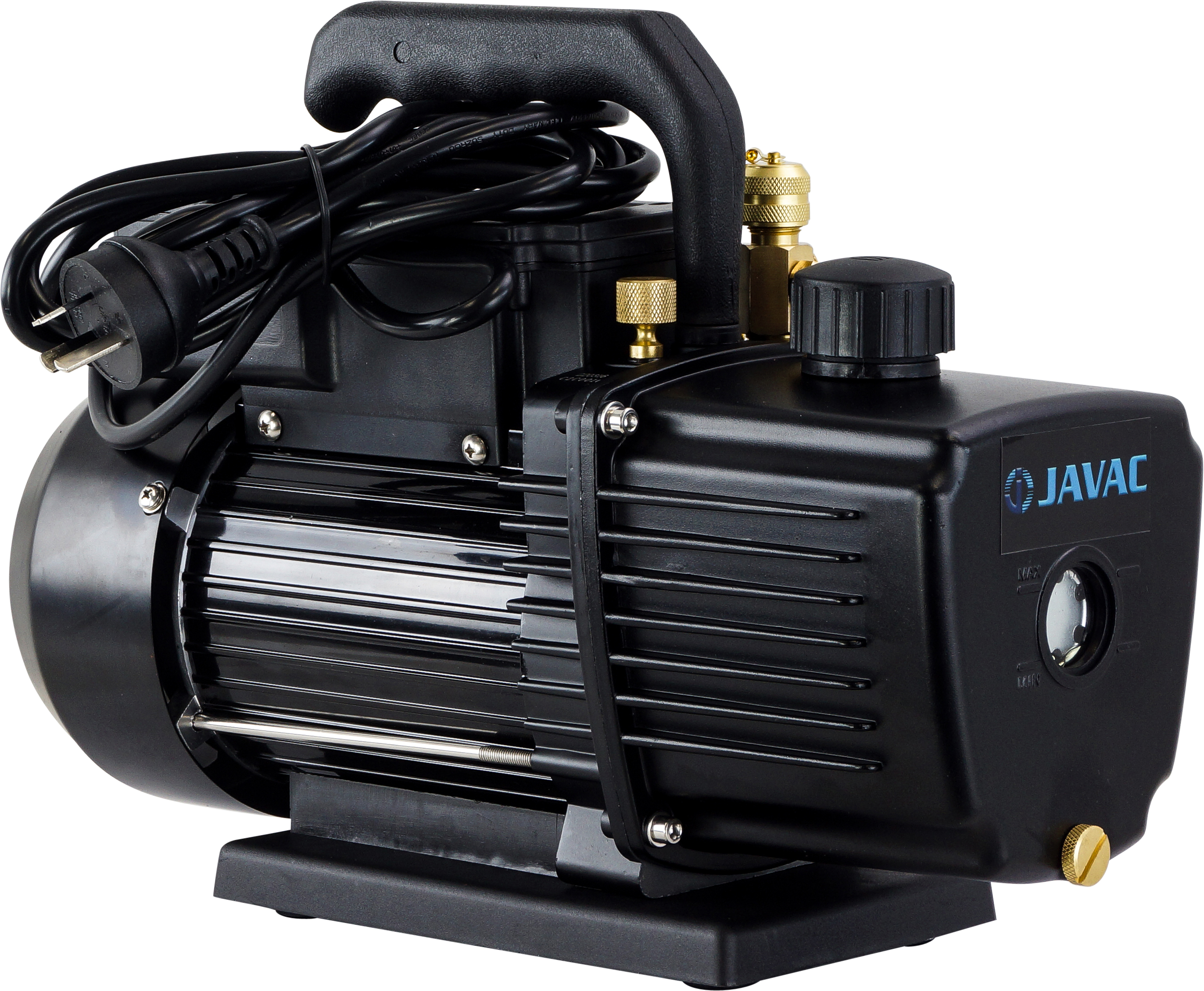

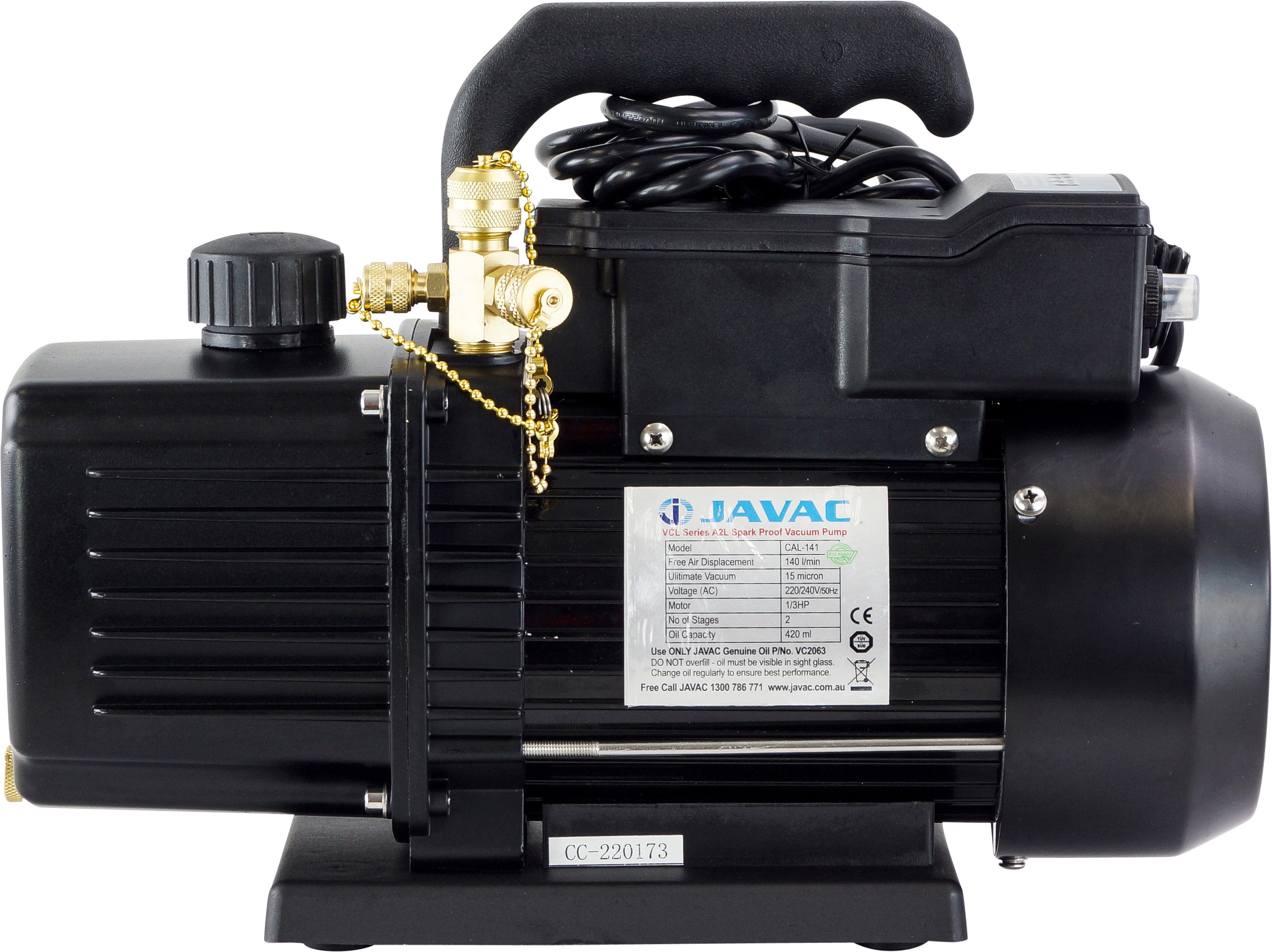

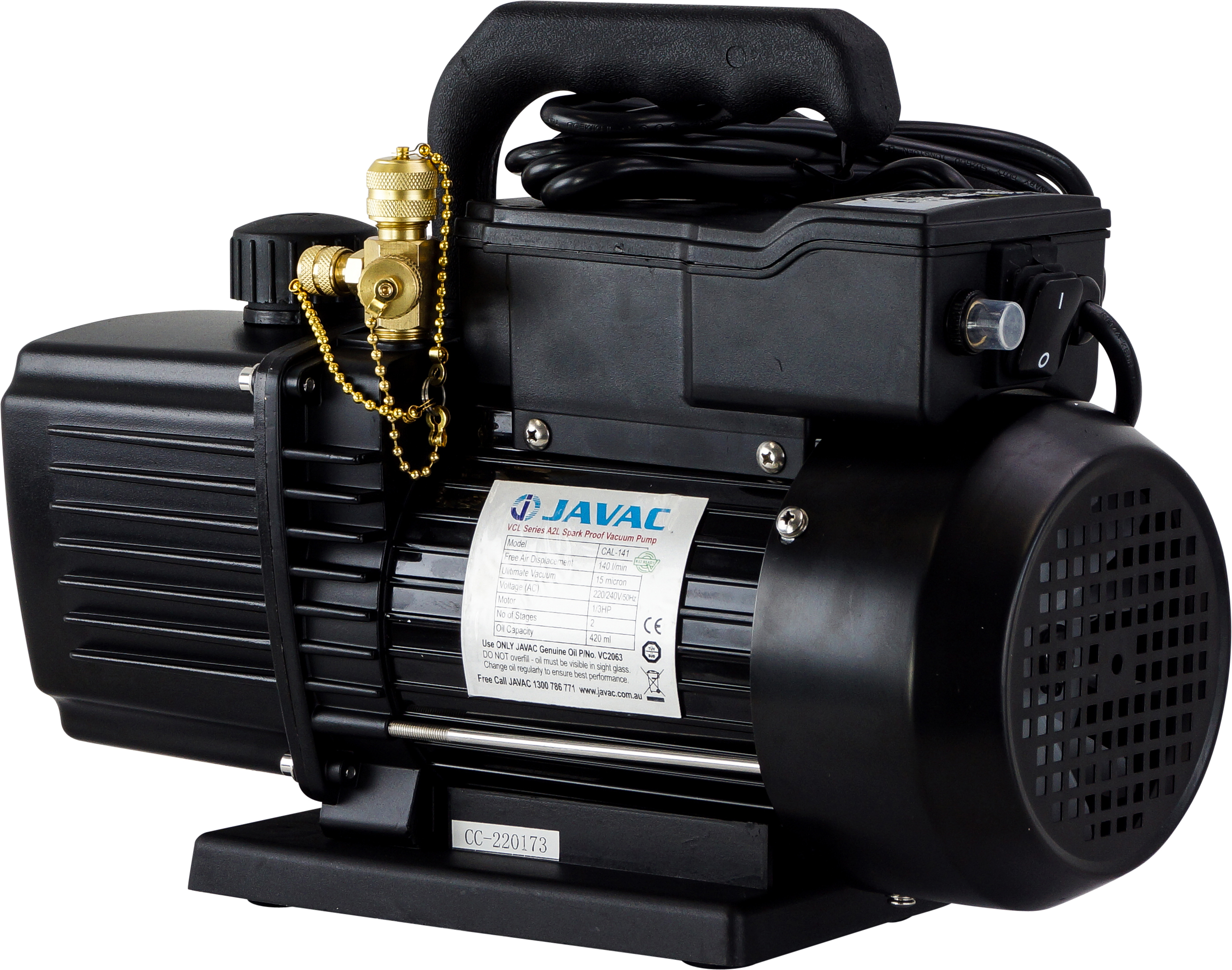

Javac CAL141 2-Stage 140LM Vacuum Pump
TO-62185
Description
The Javac CAL141 is a 2-stage, oil rotary vane vacuum pump designed for efficient evacuation of refrigeration and air conditioning systems. It offers a free air displacement of 140 litres per minute and achieves an ultimate vacuum of 15 microns.
Specifications
| Stages | 2-stage oil rotary vane |
| Free Air Displacement | 140 L/min (or 141 L/min) |
| Ultimate Vacuum | 15 microns |
| Refrigerant Compatibility | R32 and 1234yf compliant; suitable for CFC, HFC, HCFC, HFO refrigerants (e.g., R134a, R410a, R507, R22, R290, R600a), rated for A3 gases |
| Motor | 1/3 HP |
| Motor Speed | 2880 RPM |
| Oil Capacity | 450 mL (or 420 mL) |
| Dimensions | 350 x 143 x 265 mm |
| Weight | 12 kg (or 10.7 kg) |
| Connector | Tri-connector suitable for 1/4”, 5/16” & 3/8” SAE |
| Features | Ballast valve, anti-oil demister to prevent oil spillage |
Vehicle / Equipment Applications
General refrigeration serviceSplit system installation or servicingLight duties in automotiveSmall to medium commercial applications (e.g., pubs, large restaurants, small supermarkets)
Weight: 1.5 kg
