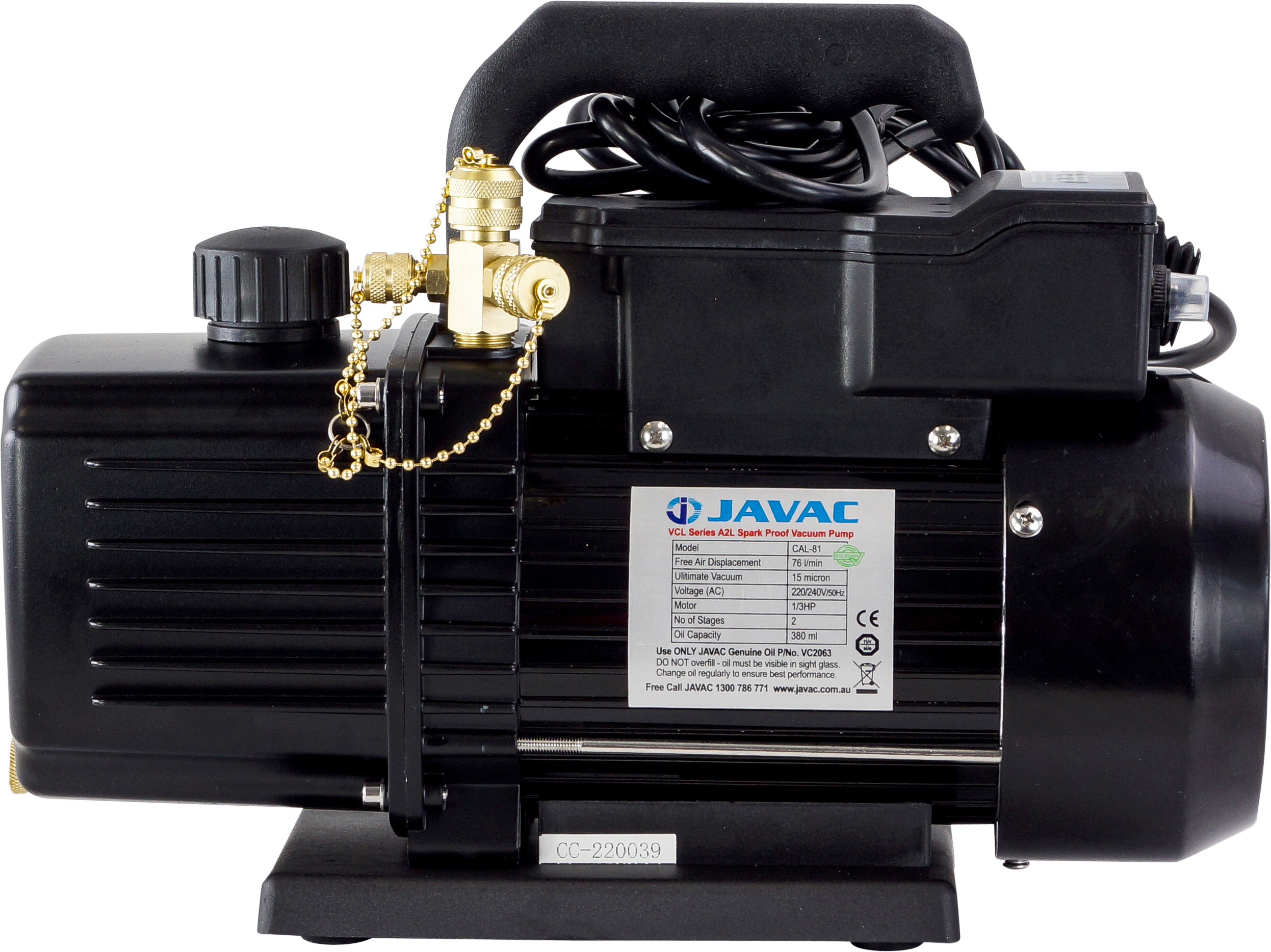

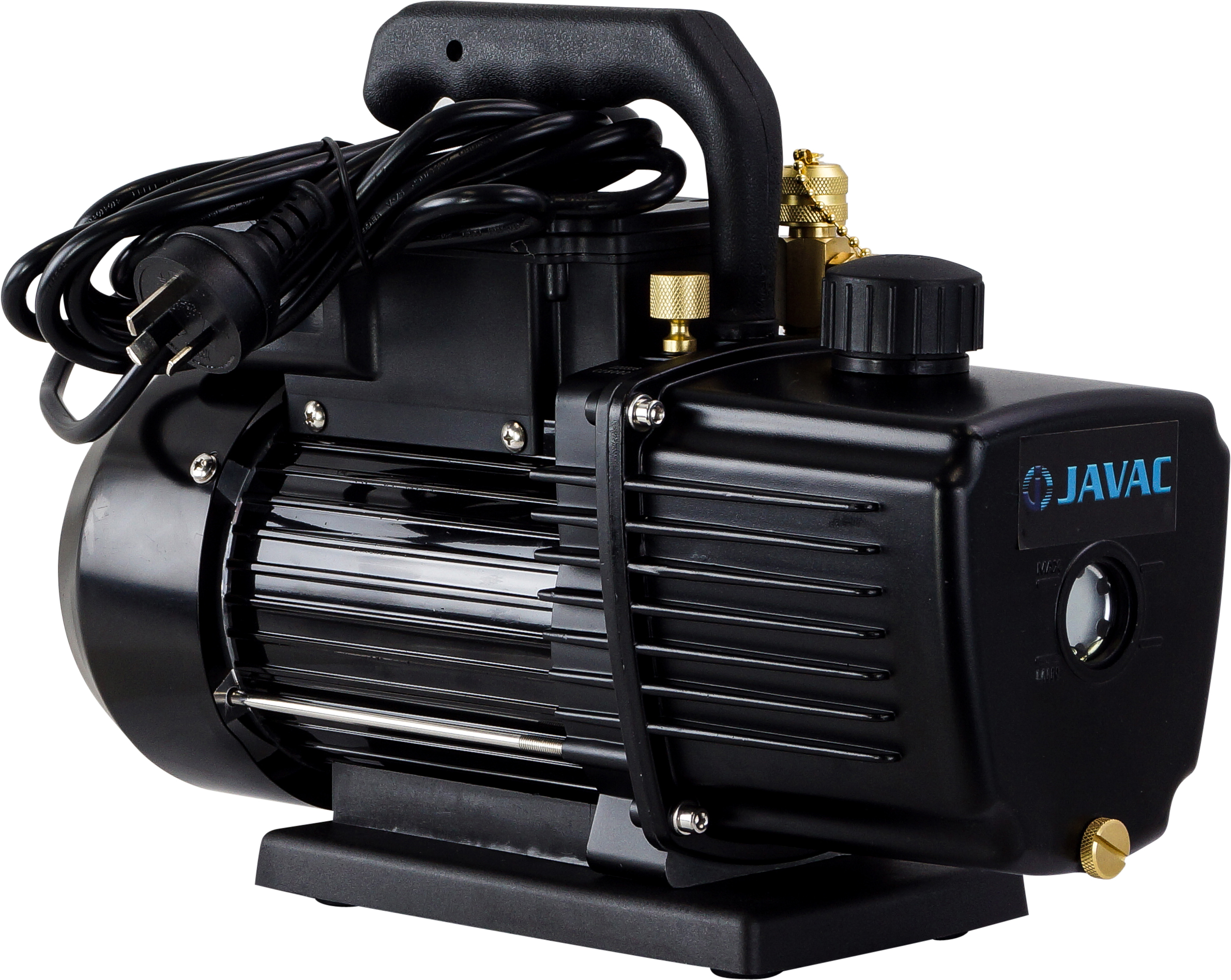

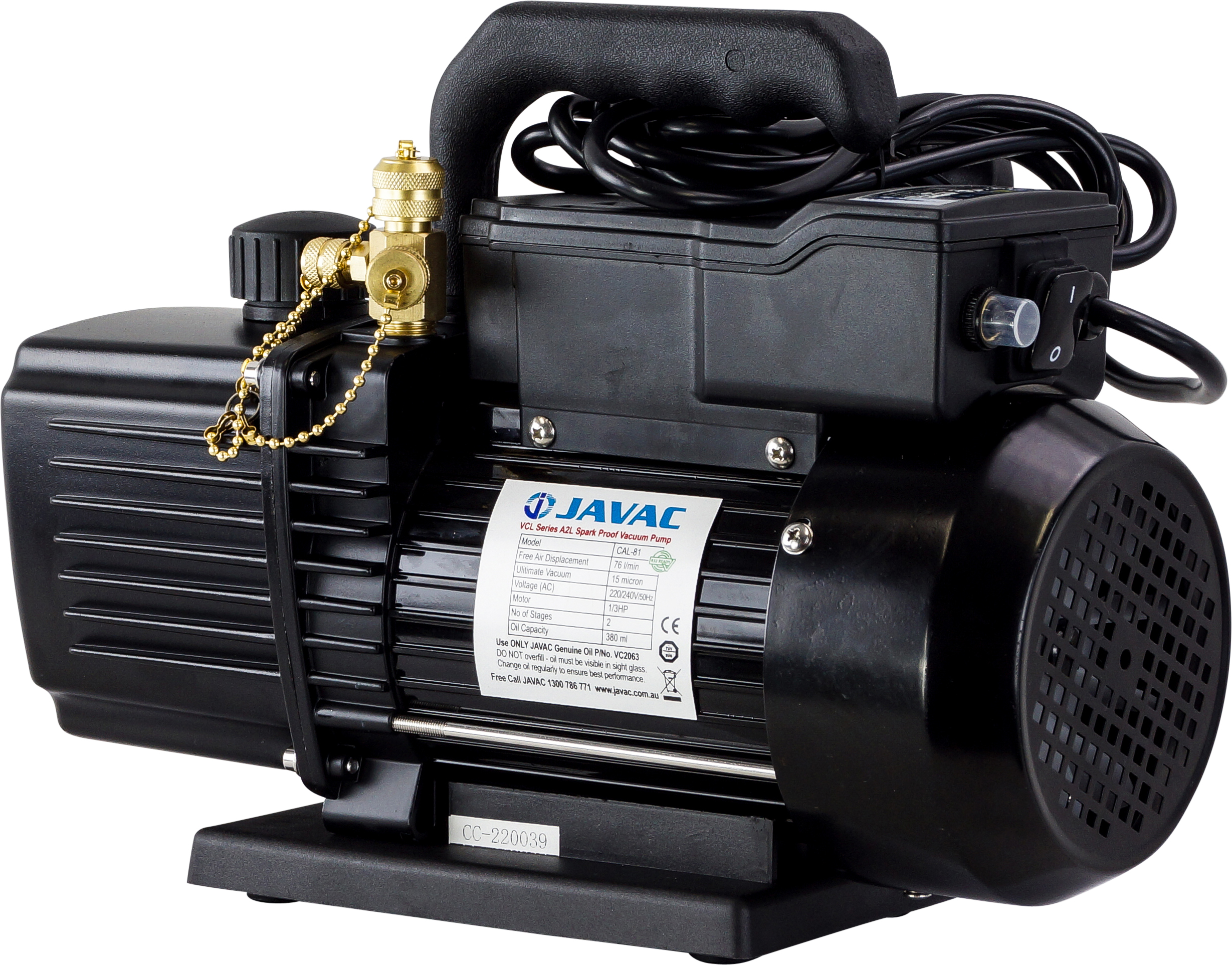

Javac CAL81 2-Stage 75LM Vacuum Pump
TO-62180
Description
This Javac CAL81 is a two-stage oil rotary vane vacuum pump engineered for refrigeration applications. It features a 75 L/min free air displacement and achieves an ultimate vacuum of 15 micron. The pump is compatible with R32, 1234yf, and other refrigerants including CFC, HFC, HCFC, and HFO.
Specifications
| ultimate vacuum | 15 micron |
| free air displacement | 75 L/min |
| stages | 2-stage oil rotary vane |
| refrigerant compatibility | R32, 1234yf, CFC, HFC, HCFC, HFO |
| connectors | Tri-connector suitable for 1/4", 3/8", and 5/16" SAE |
| oil capacity | 420ml |
| dimensions | 350mm x 143mm x 265mm |
| weight | 9.6kg |
| features | Ballast valve, anti-oil demister |
Vehicle / Equipment Applications
General refrigeration serviceBottle shopsConvenience storesRestaurants and catering facilitiesResidential or industrial split system installation or servicing
Weight: 1.5 kg
