Javac CAL45 2-Stage 45LM Vacuum Pump
TO-62175
Description

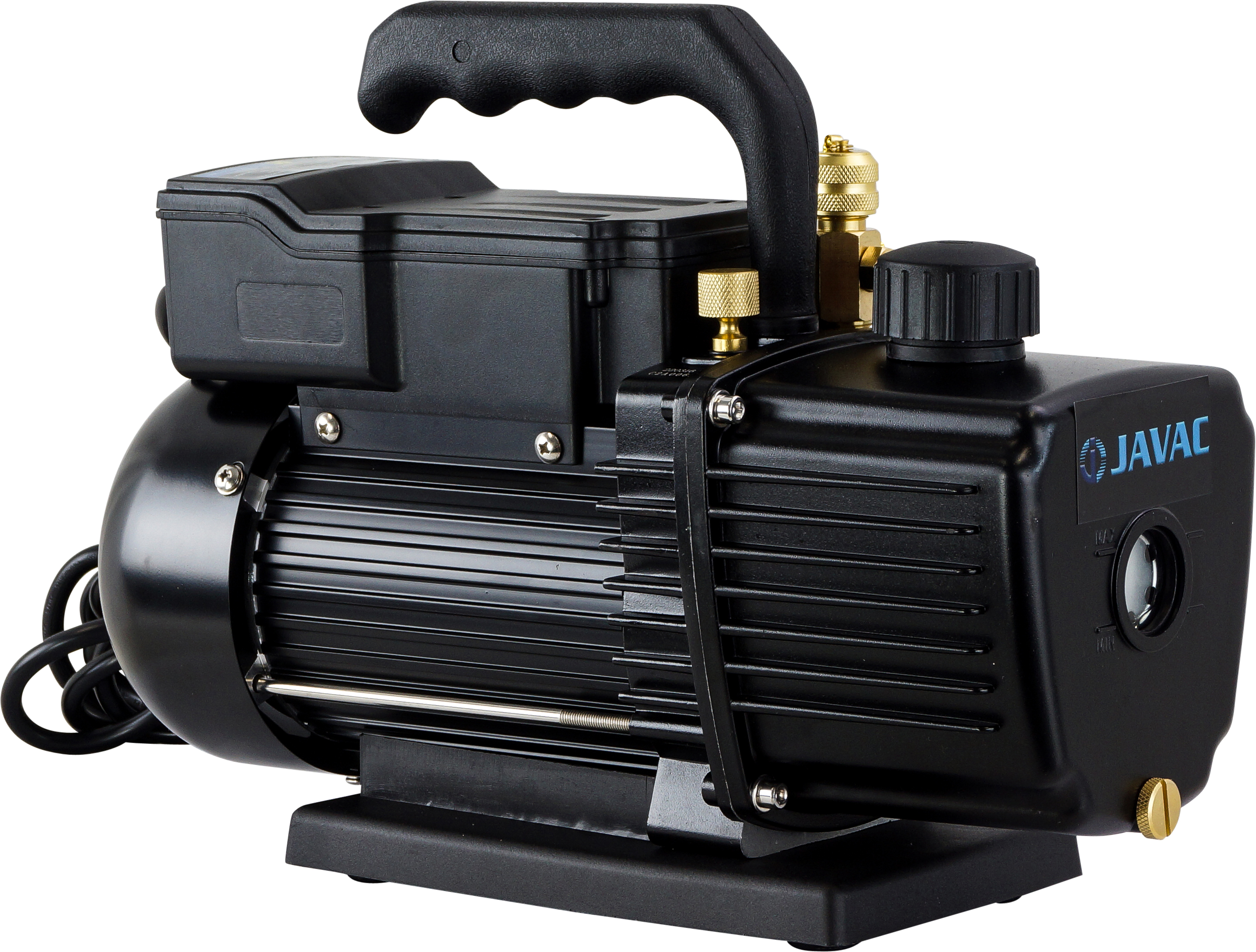

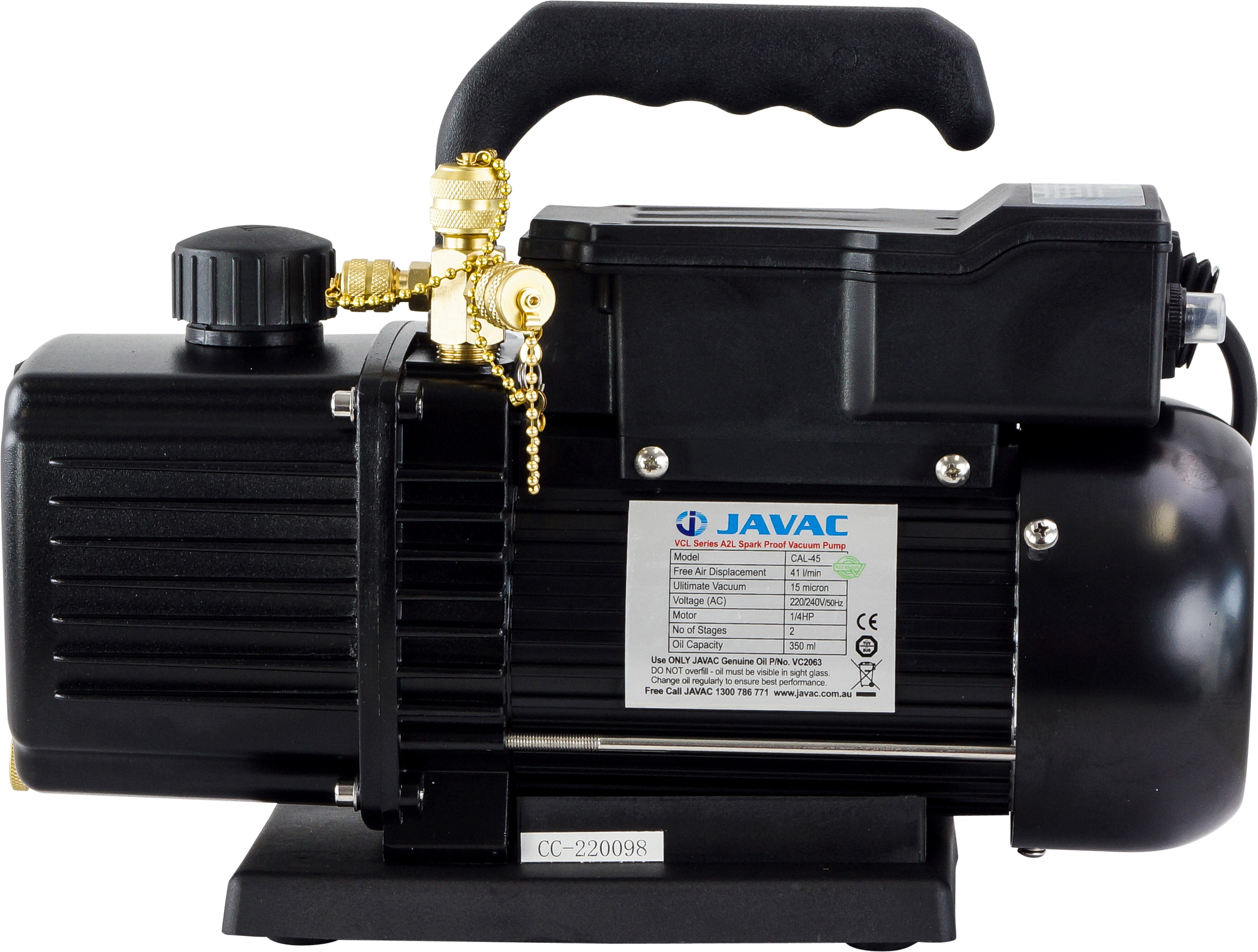

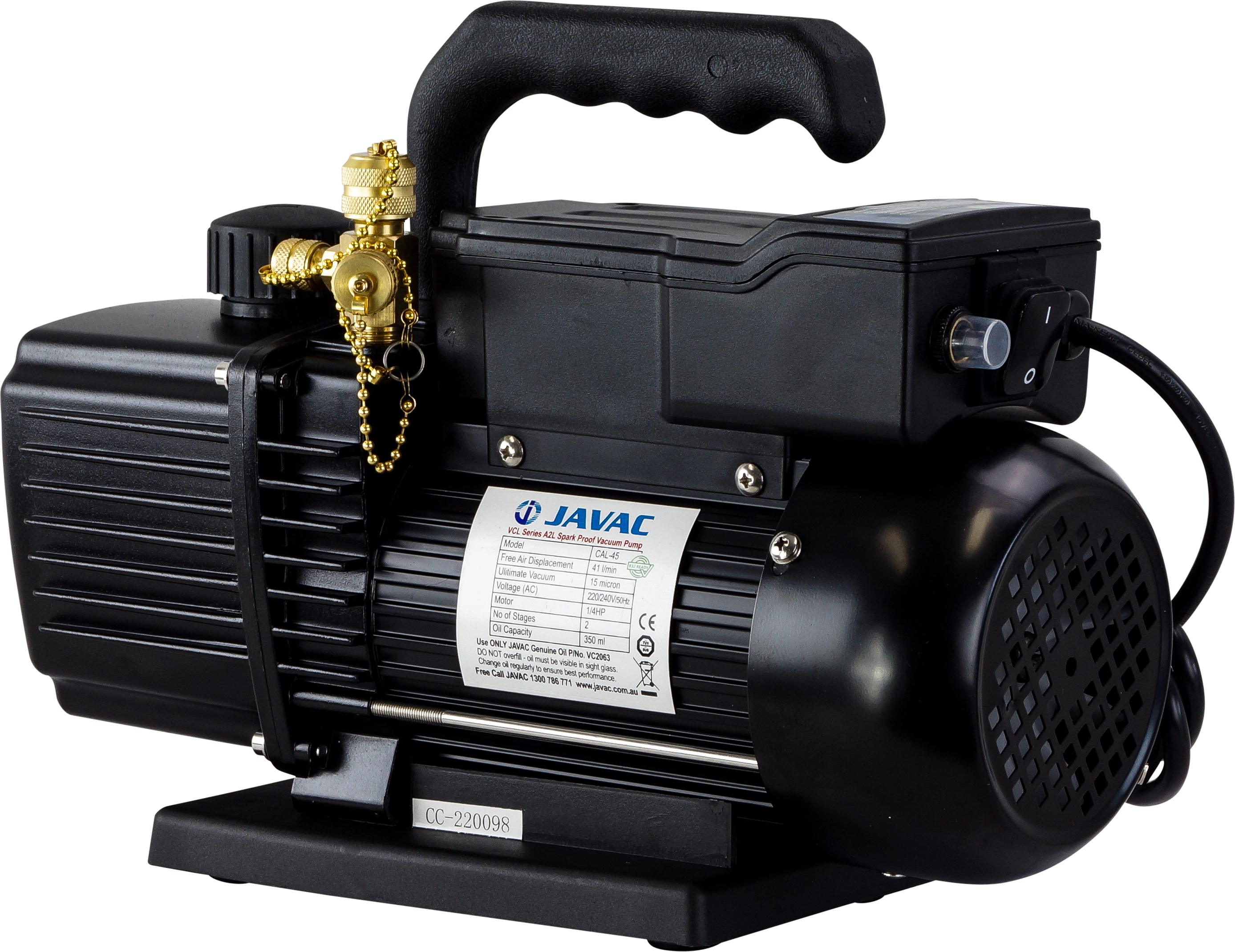

The Javac CAL45 is a two-stage oil rotary vane vacuum pump with a free air displacement of 45 litres/min. It is designed to achieve an ultimate vacuum of 15 micron, suitable for thorough evacuation of AC and refrigeration systems.
Specifications
| free air displacement | 45 litres/min |
| stages | Two-stage oil rotary vane |
| ultimate vacuum | 15 micron |
| refrigerant compatibility | R32, 1234yf, R290, R600a, R134a, R410a, R507, R22 (A2, A2L, A3 gases compatible) |
| ballast valve | Yes |
| anti oil demister | Yes |
| connectors | Tri-connector (1/4", 3/8", 5/16" SAE) |
| oil capacity | 350ml |
| dimensions | 330mm x 135mm x 255mm |
| weight | 9.6kg |
Vehicle / Equipment Applications
General refrigeration serviceResidential split systemsSmall commercial unitsBottle shopsConvenience storesRestaurants and catering facilitiesAutomotive/light commercial service
Weight: 1.5 kg
