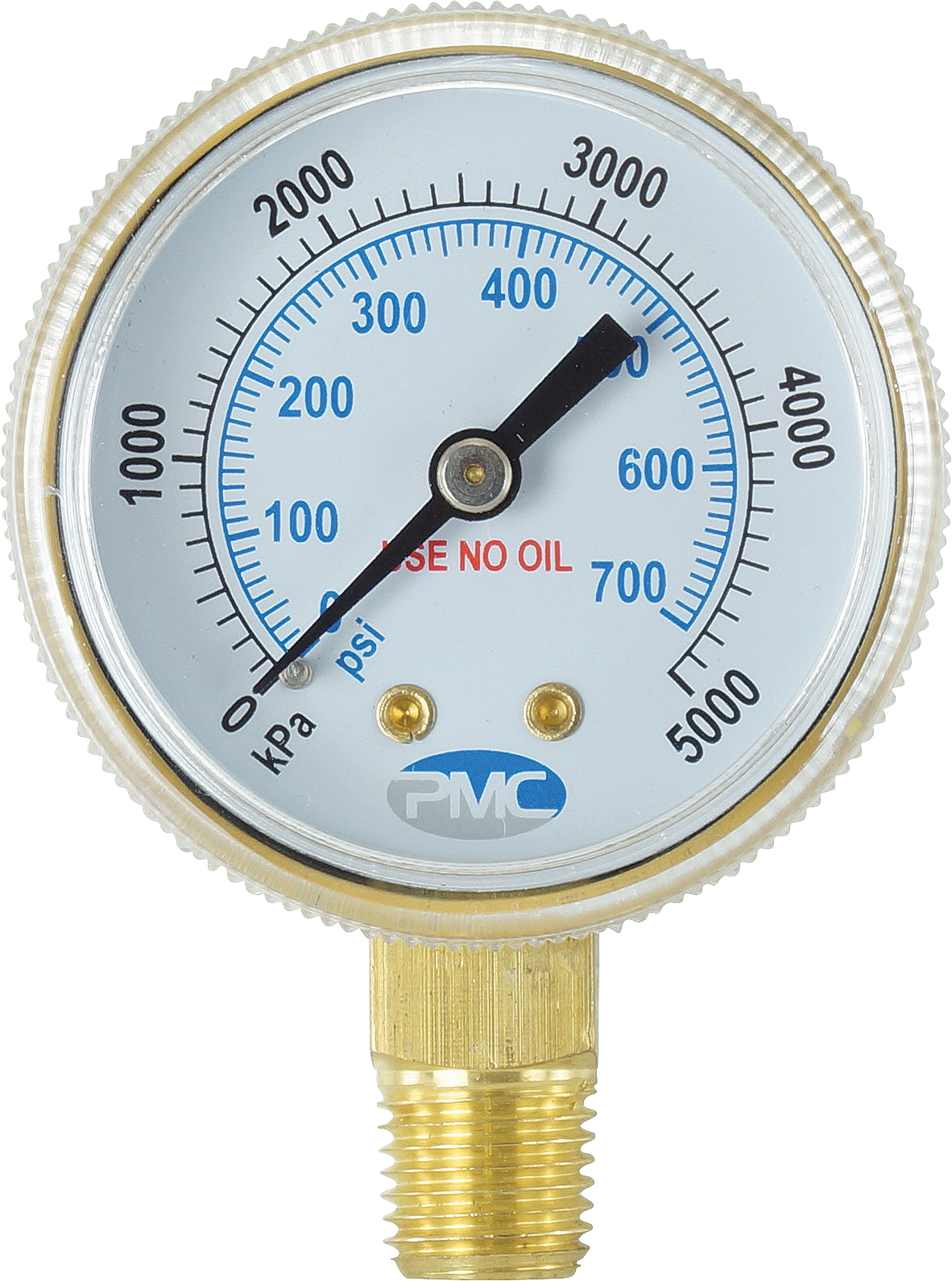

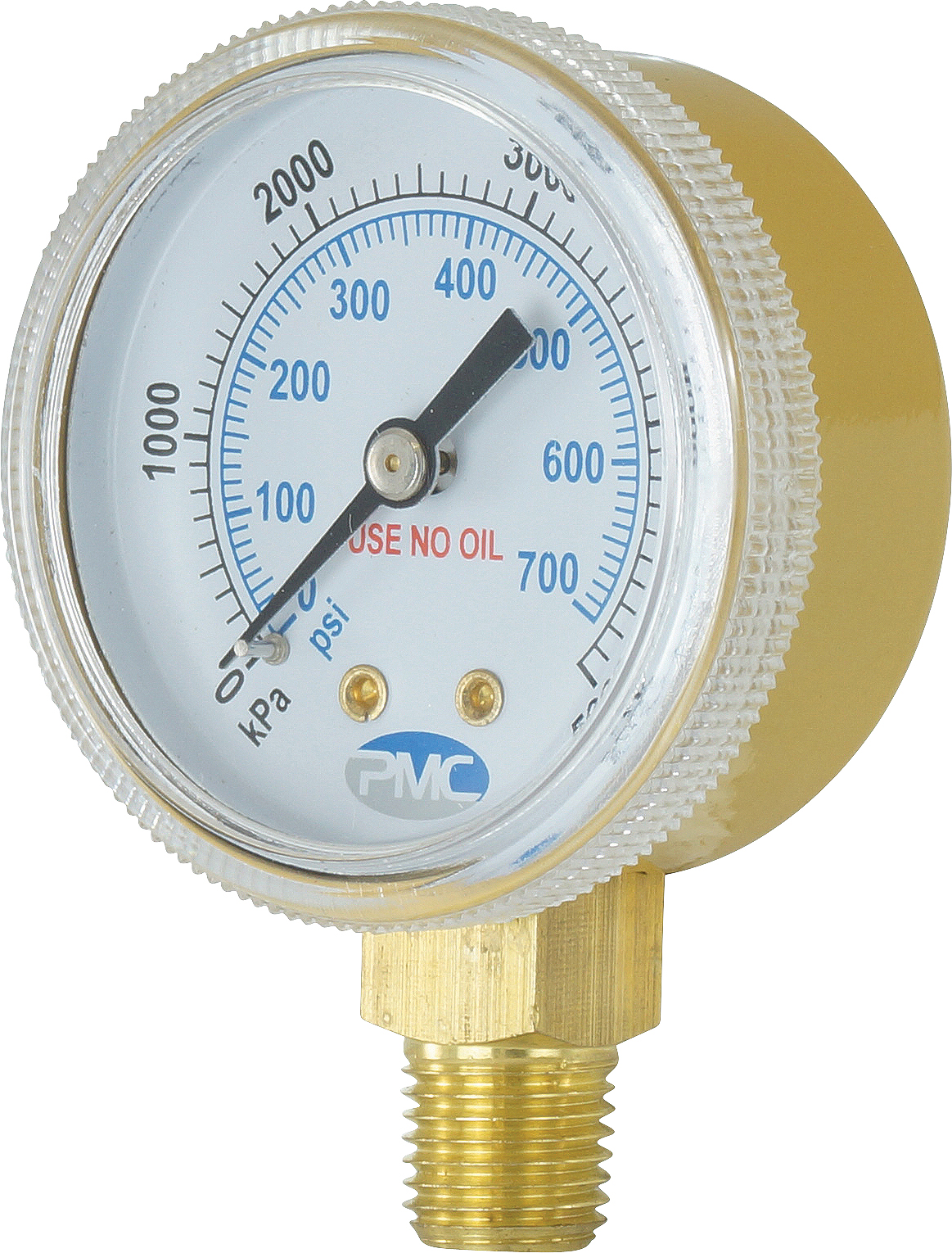

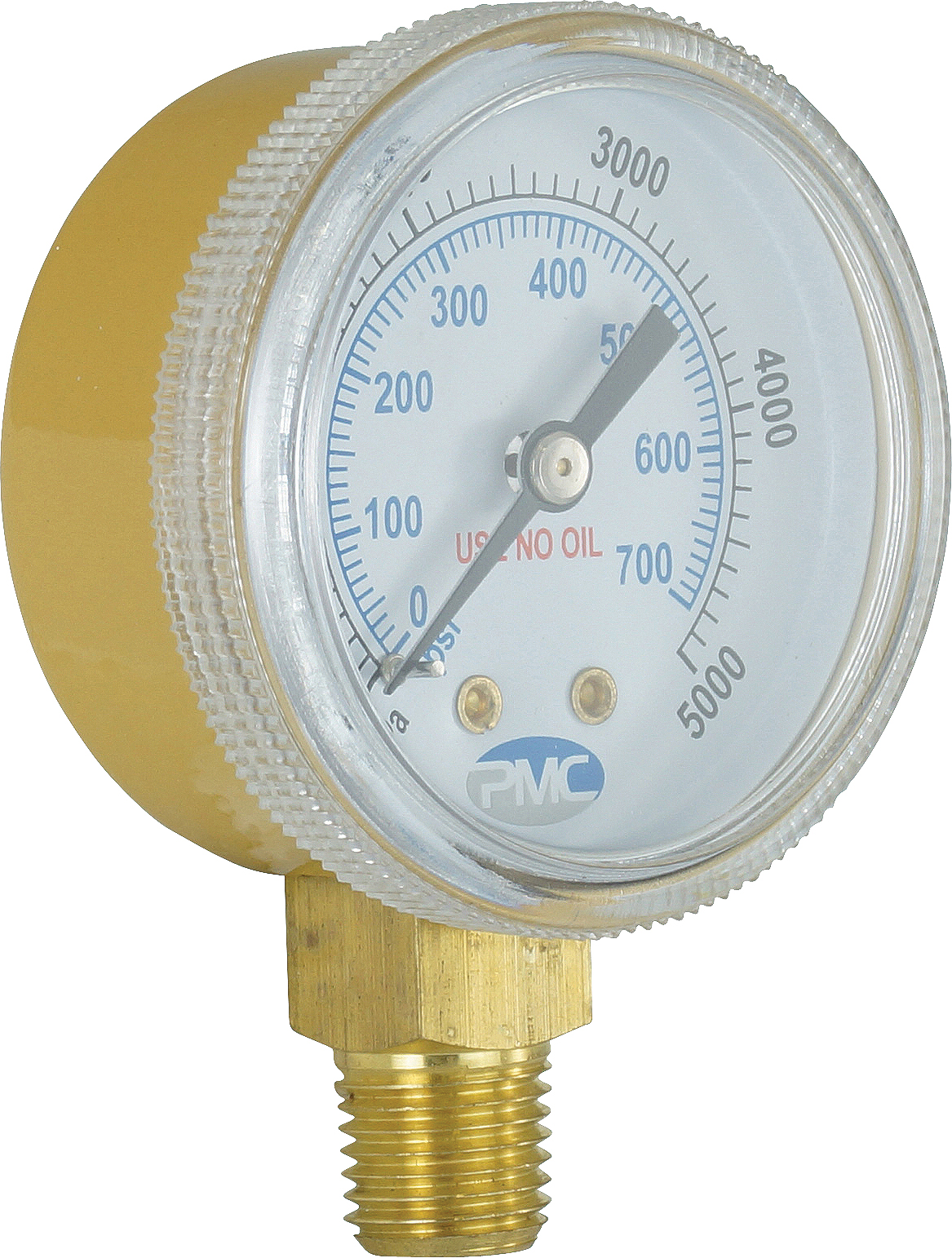

NITROGEN GAUGE, PMC, 0-700 PSI PMC, KPA/PSI, LOW
TO-31955
Description
This PMC dry pressure gauge is designed for accurate measurement of nitrogen pressure. It features a dual scale display, providing readings in both PSI and kPa for versatile applications.
Specifications
| pressure range | 0-700 PSI / 0-5000 kPa |
| mounting type | Direct mounting bottom connection |
| case material | Brass enamel |
| dial size | 2" |
| dial material | Aluminium, black markings on white background |
| dial arc | 270° |
| lens material | Screw-in polycarbonate |
| measuring principle | Bourdon Tube |
| connection | 1/4" NPT male thread, brass |
Vehicle / Equipment Applications
Automotive systemsNitrogen pressure measurement
Weight: 1.5 kg
