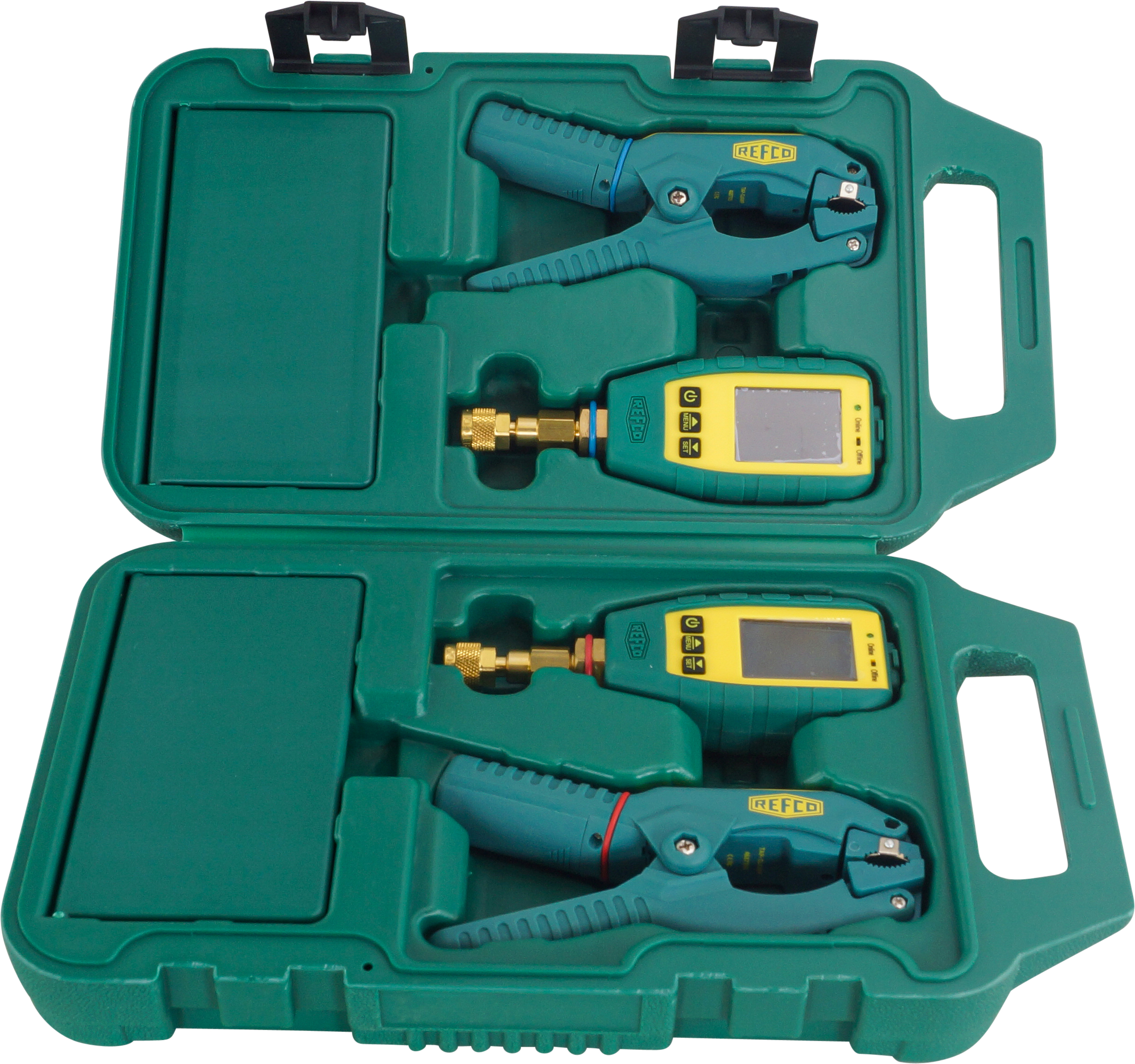

WIRELESS PRESSURE AND TEMPERATURE DOUBLE GAUGE SET, REFCO
TO-31777
Description
The REFCO TAP wireless digital pressure and temperature double gauge set measures temperature and pressure from the low and high sides of air conditioning and refrigeration systems. It includes pressure gauges and K-type temperature clamps, displaying measurements and superheat/subcooling calculations on the gauge or a mobile device.
Specifications
| gauge purpose | Pressure, Temperature |
| features | Digital, Wireless |
| temperature clamp pipe diameter | 6 mm to 42 mm (1/4" to 1 5/8") |
| compatibility | iOS, Android |
| max monitored devices | Up to 6 TAP devices |
| battery type | AAA batteries |
| pressure range | -14 to 870 psi (-1 to 60 bar) |
| temperature measuring range | -40°C to +125°C (-40°F to 257°F) |
| gas connection | 1/4" SAE |
| battery life pressure gauge | 40 hours |
| battery life temperature clamp | 50 hours |
| signal range | 30 m (100 ft) |
| refrigerant charts | Over 50 stored, updatable via Micro USB |
Vehicle / Equipment Applications
Air conditioning systemsRefrigeration systems
Weight: 1.5 kg
