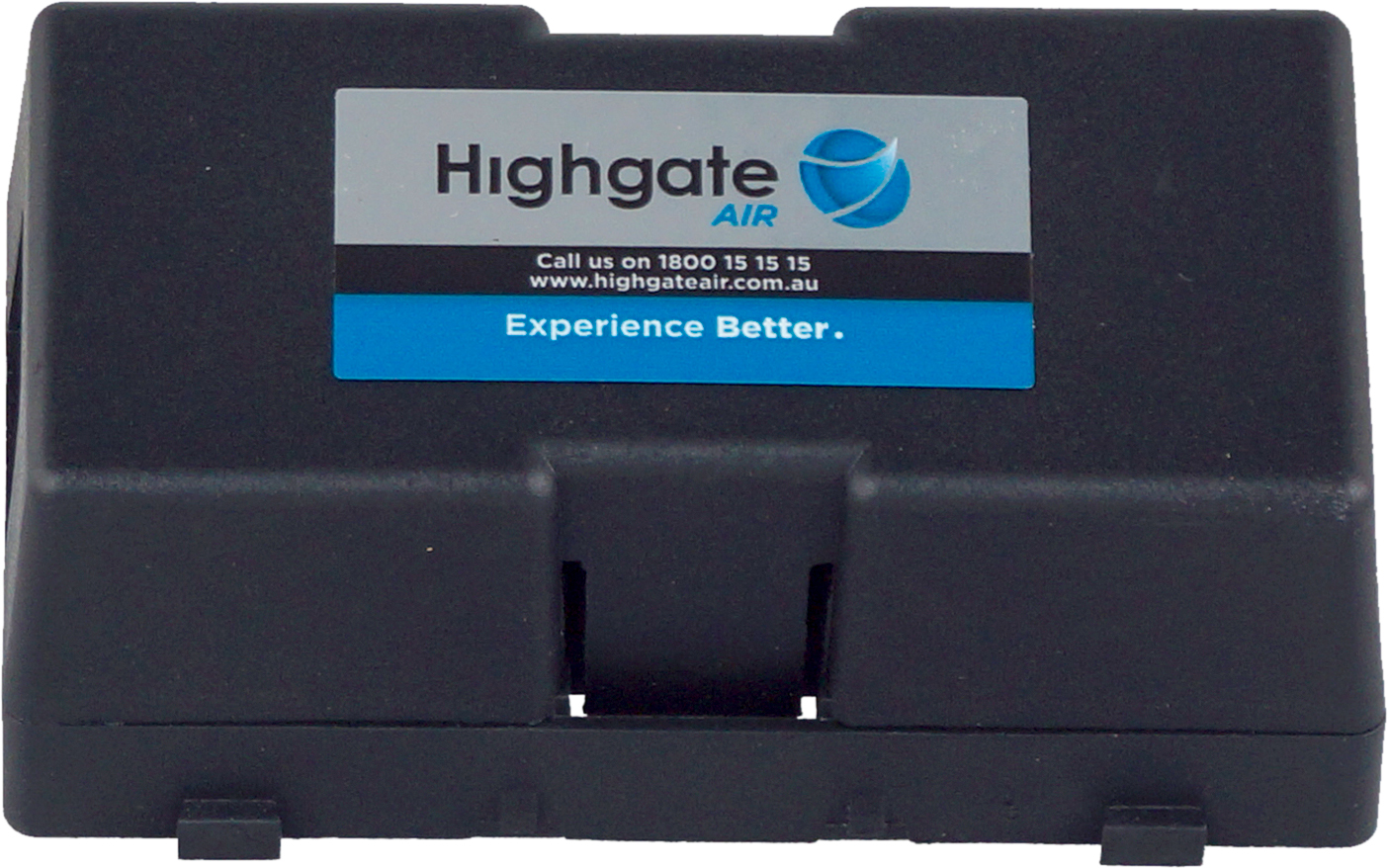

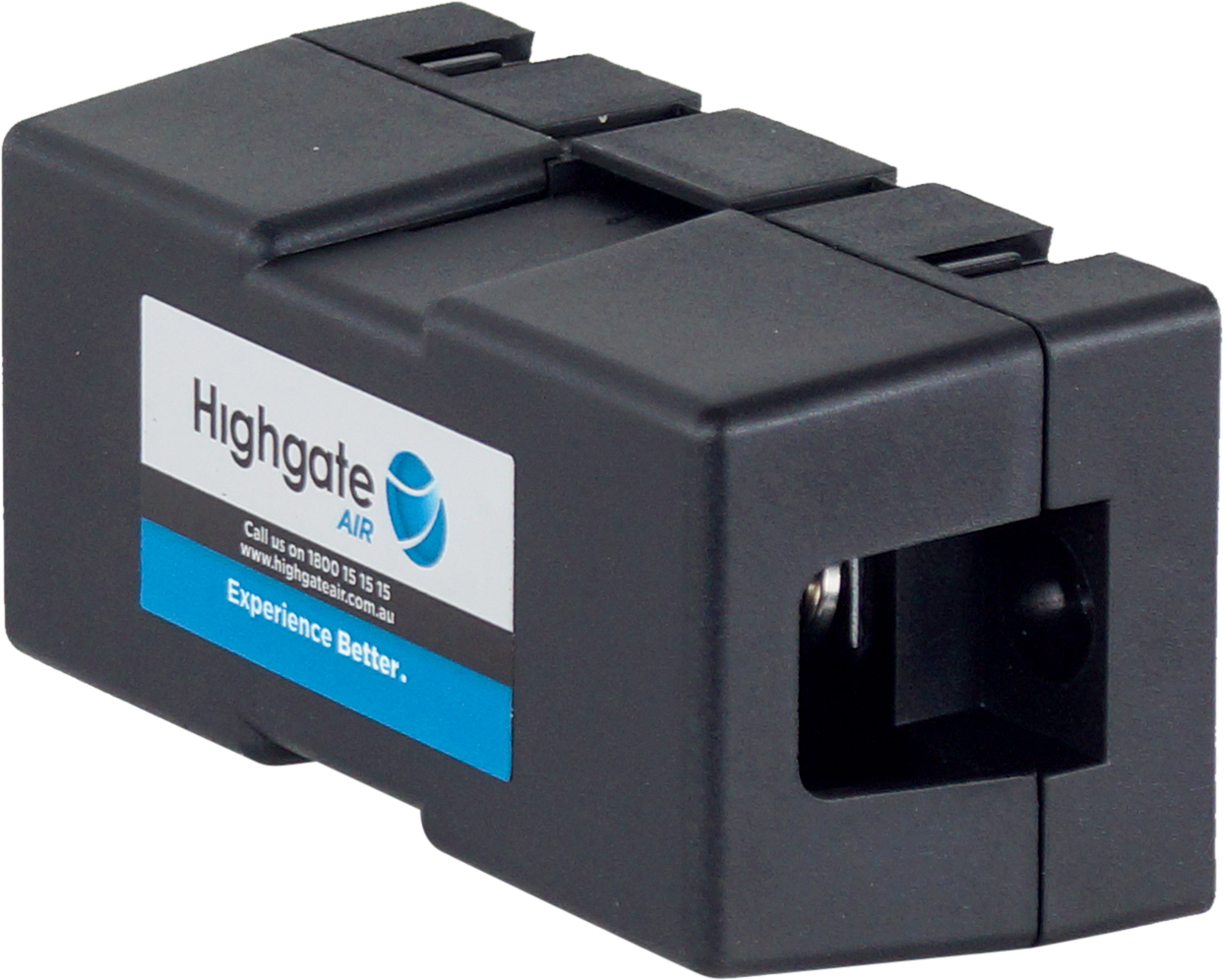

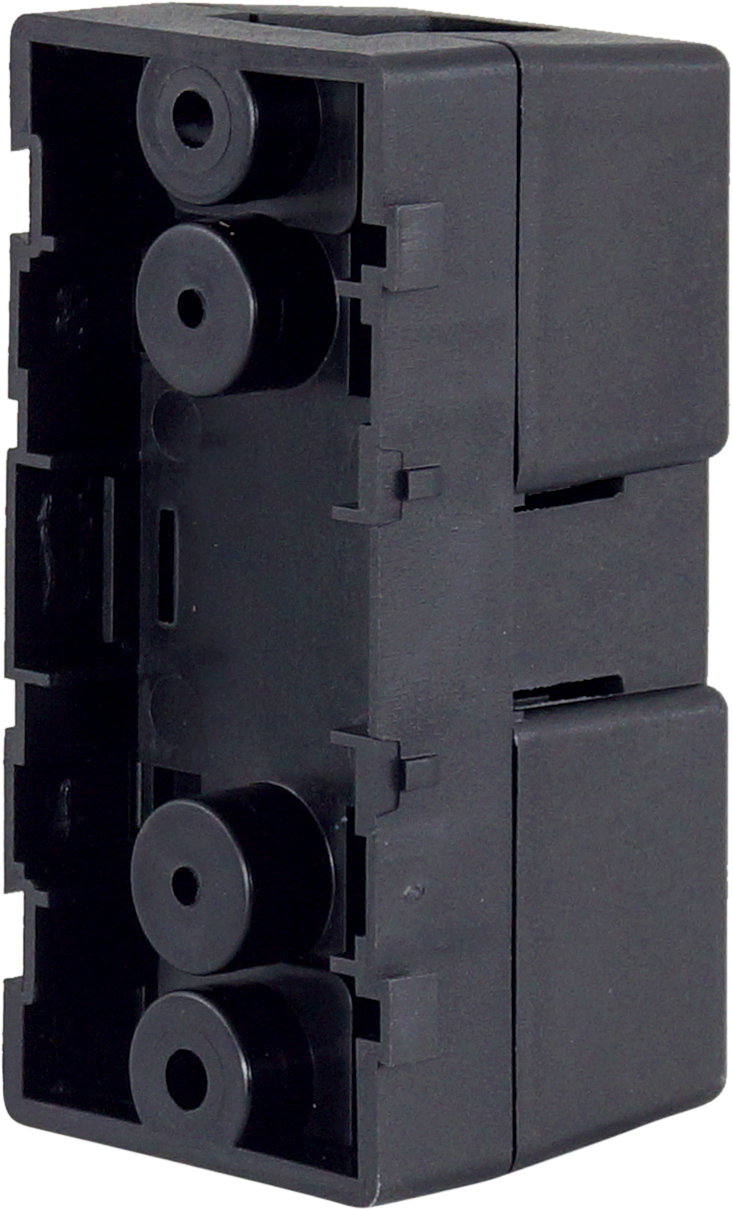

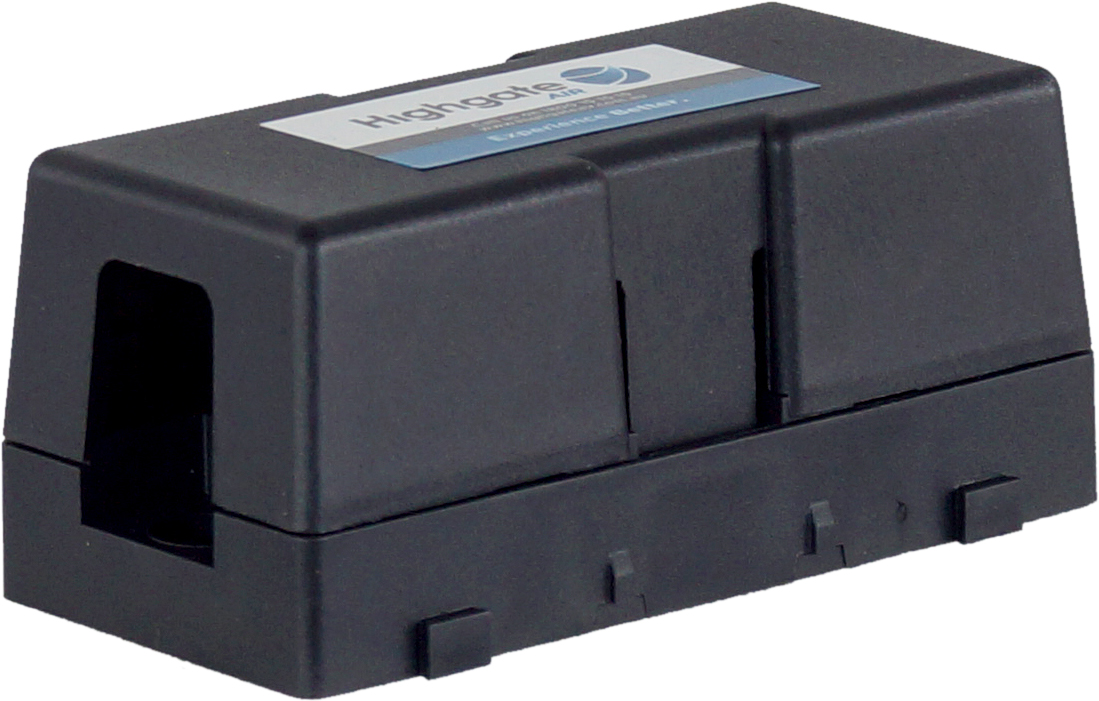

HOLDER, MEGA FUSE, SUITS COE-15101
TO-29837
Description
This is a holder designed for MEGA fuses, providing circuit protection for high-current applications. It is suitable for use on batteries, alternators, and heavy gauge wire harnesses that experience large current inrushes.
Specifications
| fuse type compatibility | MEGA fuses (time-delayed) |
| current rating range | 40 A to 500 A (fuse dependent) |
| max voltage | 32 V DC |
| interrupting rating | 2 kA at 32 V DC |
| mounting hole sizes | M6 (8-14 Nm torque), M8 (12-18 Nm torque) |
Weight: 1 kg
