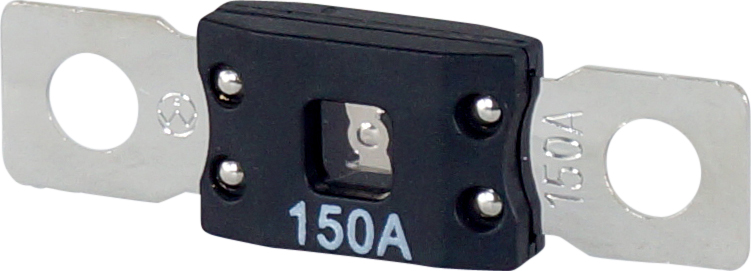

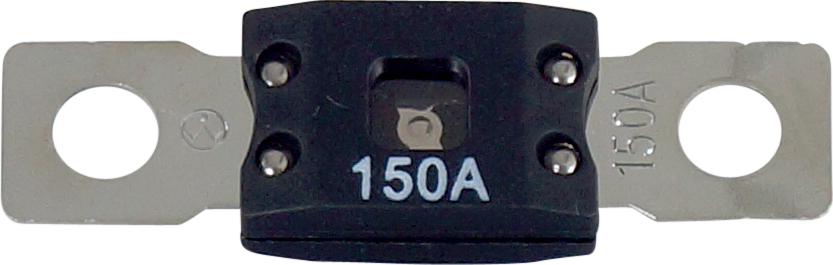

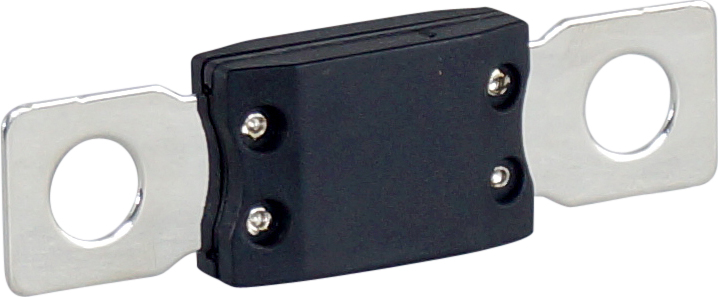

MEGA FUSE, 150A, SUITS COE-15101
TO-29836
Description
This is a 150 Ampere (A) MEGA fuse, engineered for high-current circuit protection in various automotive and heavy equipment electrical systems. It features a bolt-down design and incorporates diffusion pill technology to provide time-delay characteristics, safeguarding against overcurrent situations.
Specifications
| current rating | 150 Amps |
| maximum voltage rating | 32V DC (also available up to 80V) |
| fuse type | MEGA / AMG (bolt-down) |
| technology | Diffusion Pill Technology (time-delayed) |
| interrupting rating | 2 kA at 32V DC |
| operating temperature | Up to 125°C ambient |
| mounting holes | M8 (common) |
| material | Copper alloy with integrated heat sink |
| colour indication | Orange (common for 150A fuses) |
| compatibility | Suits COE-15101 (likely a MEGA fuse holder) |
Vehicle / Equipment Applications
Battery protectionAlternator protectionHeavy gauge wire harnessesCars, trucks, busesAgricultural machineryConstruction vehiclesCaravansMarine applications
Weight: 1 kg
