Tools & Equipment
CPS AFM100 Flush Machine
TO-28762
Description

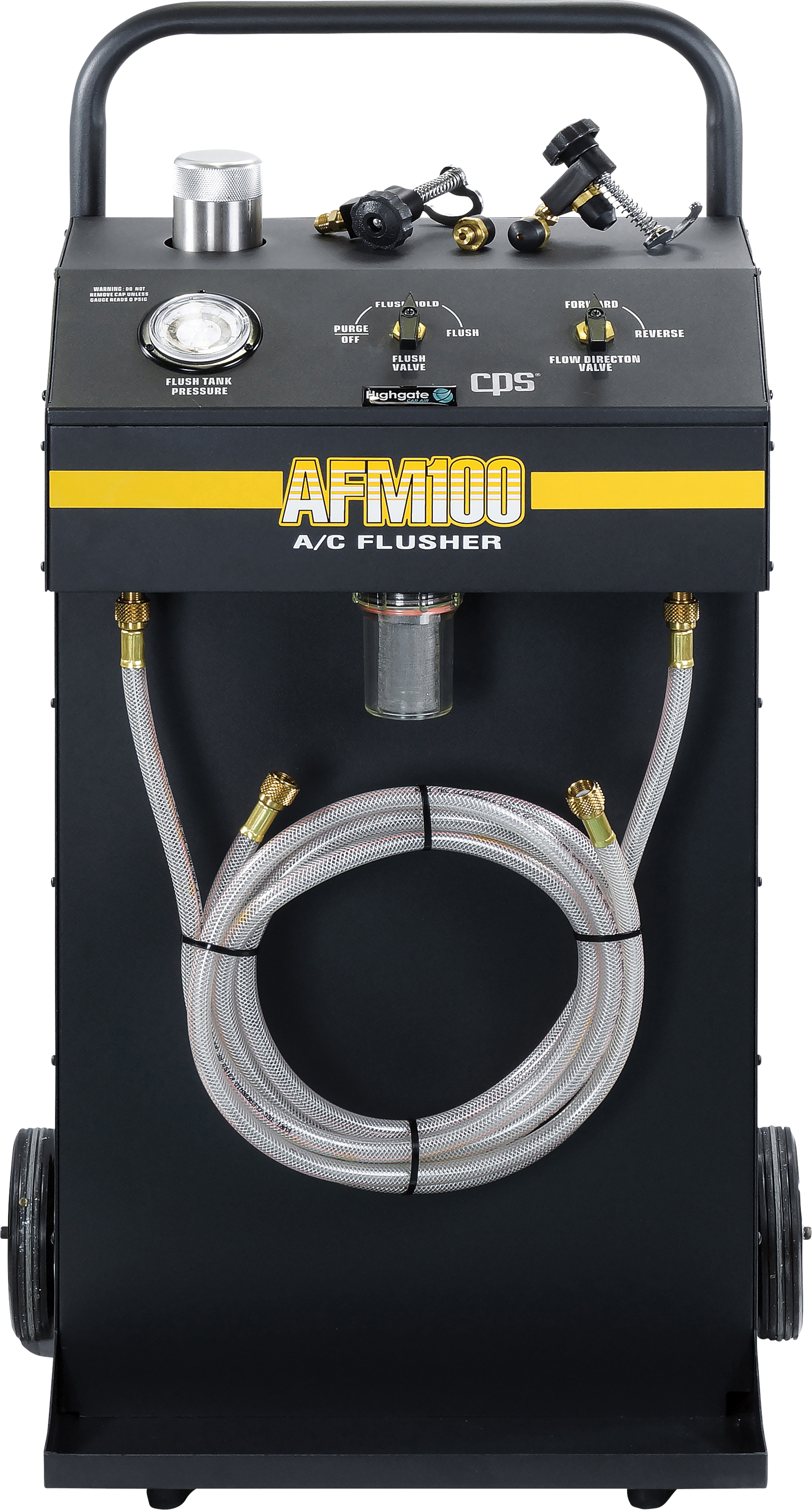

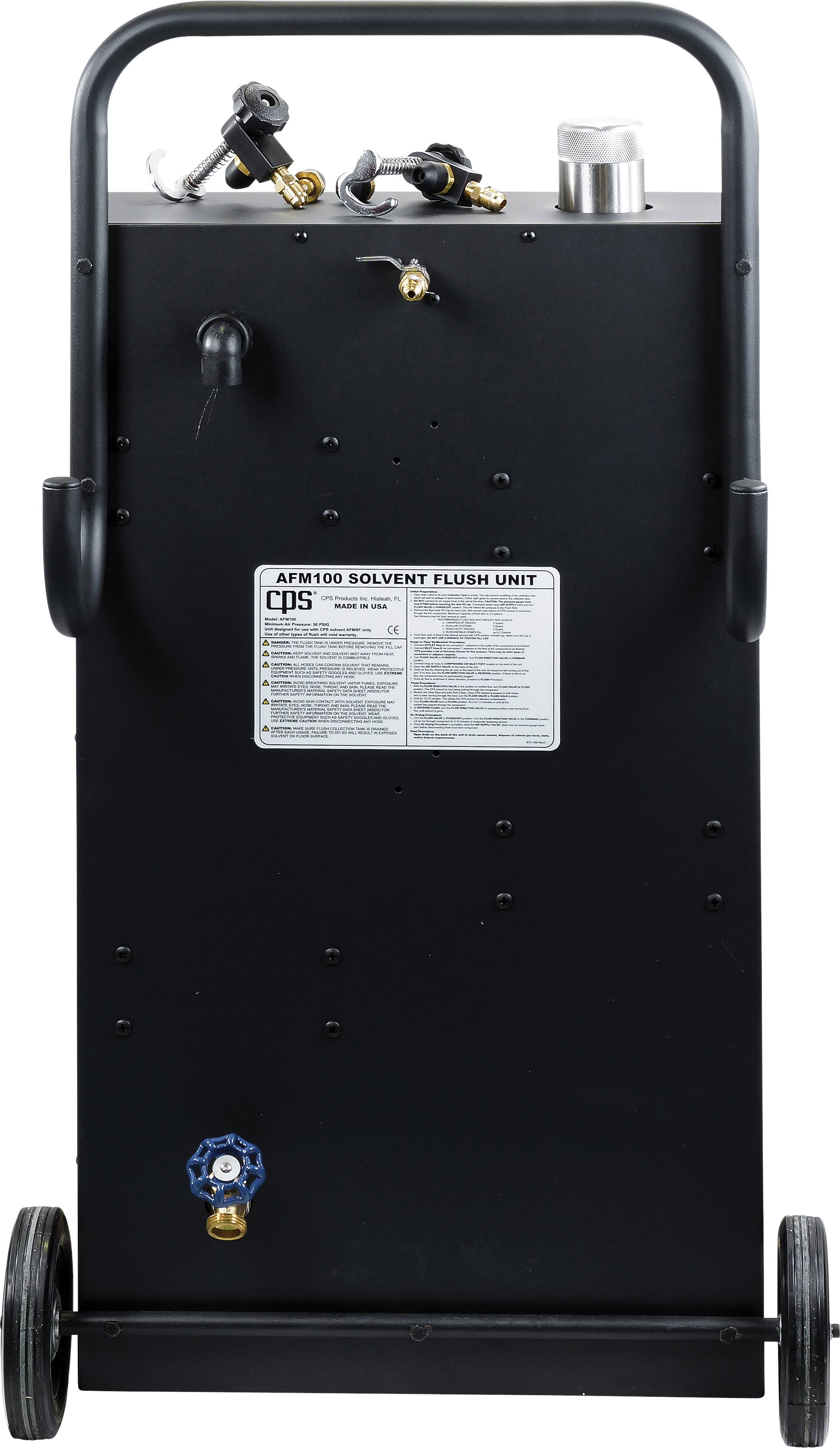

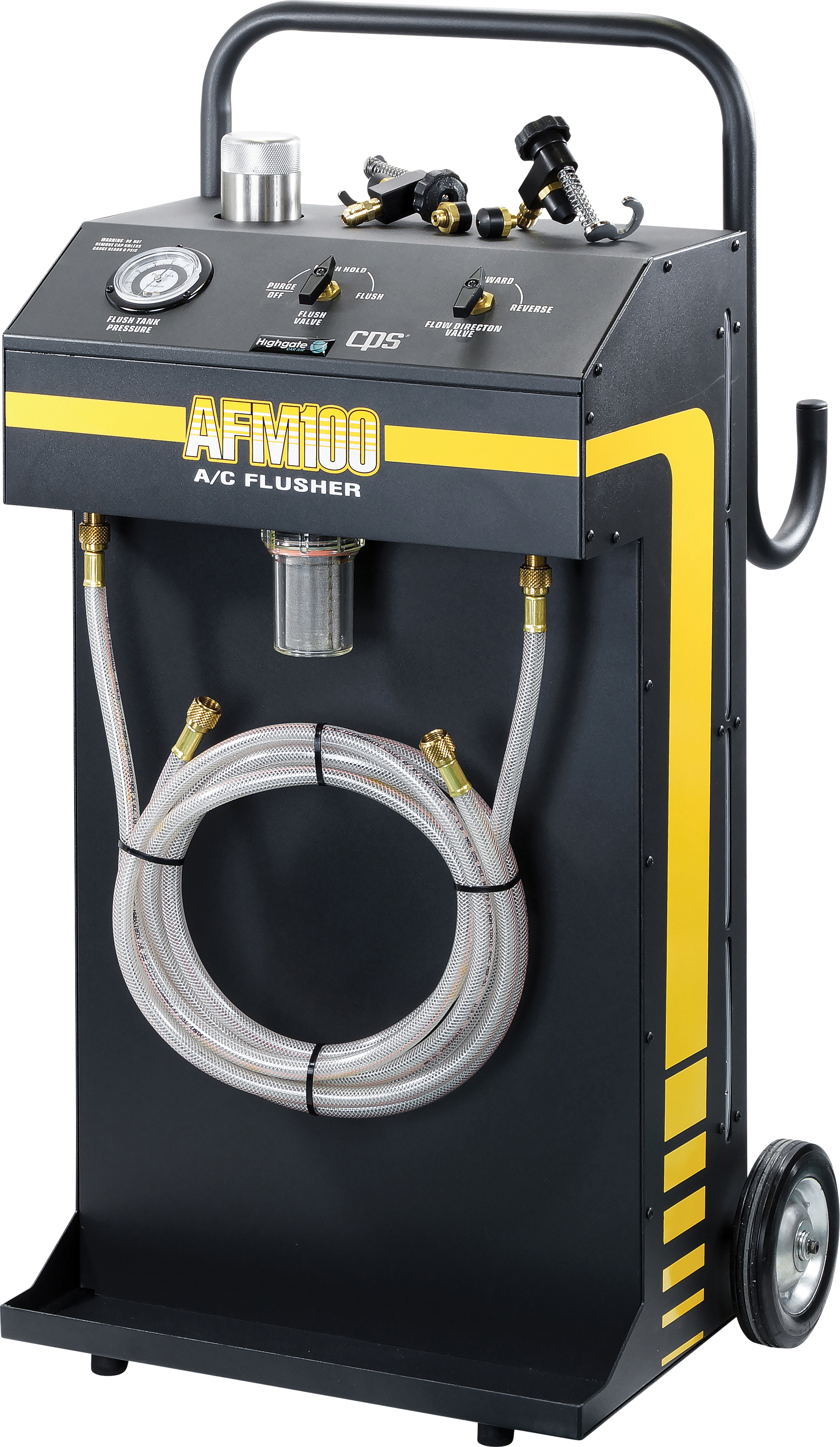

The CPS AFM100 Flush Machine is an air-operated A/C system flushing unit designed for both heavy and light-duty applications. It features two 2.5-gallon internal tanks and supports forward, reverse, and 'Flush Hold' soak modes for comprehensive cleaning of A/C components. This machine requires a minimum 50 PSIG shop air source for operation.
Specifications
| tank capacity | 2 x 2.5 gallons (approx. 9.5 litres each) |
| operation modes | Forward, Reverse, Flush Hold |
| air pressure requirement | Minimum 50 PSIG shop air |
| hoses included | 8-foot clear braided hoses |

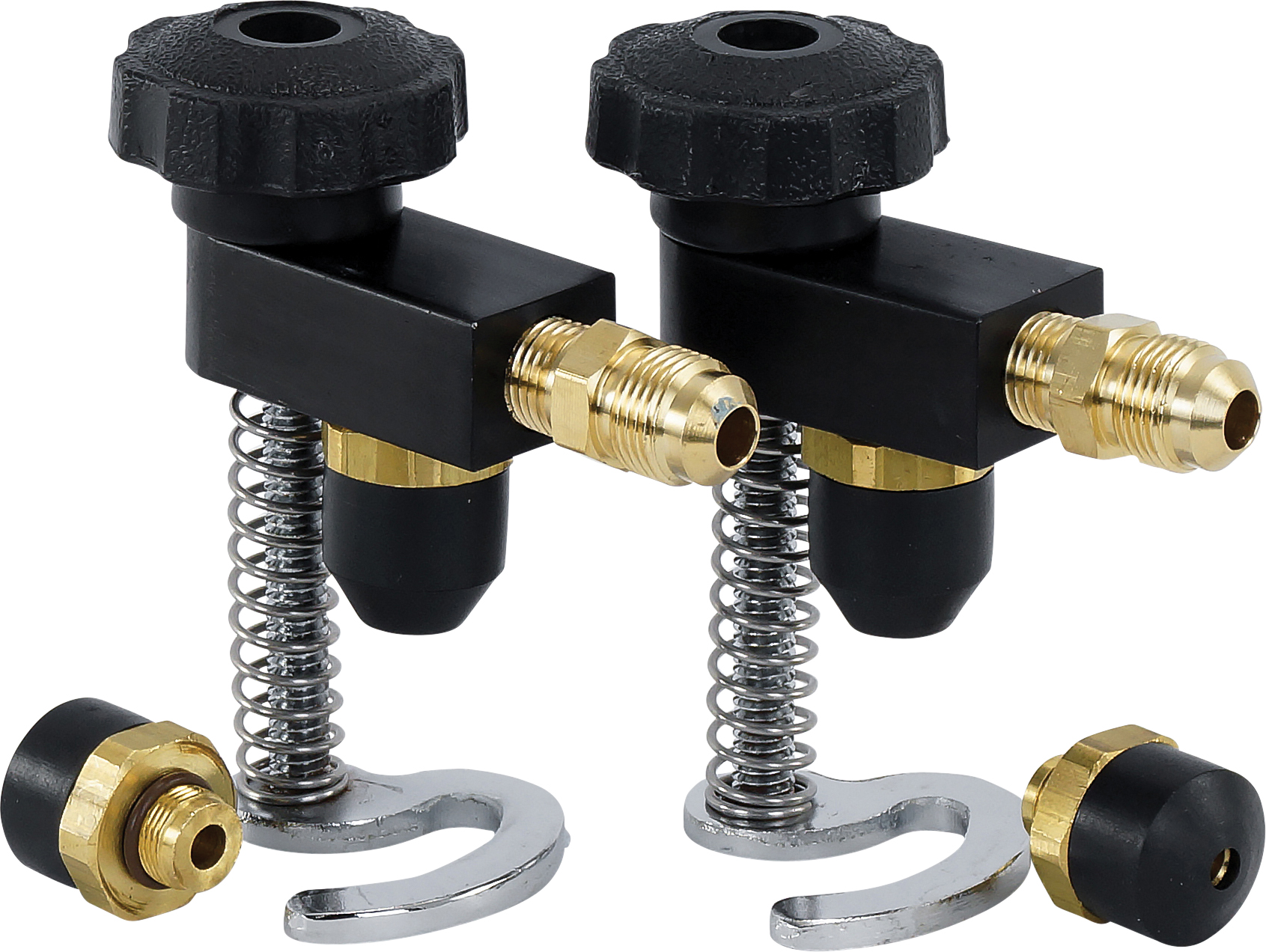

| adapters included | 2 universal adapters |
| construction material | All-steel with visible stainless steel filter |
| dimensions | 54.6 cm (W) x 47 cm (D) x 100 cm (H) (21.5'' W x 18.5'' D x 39.4'' H) |
| weight | 35.4 kg (78 lbs) |
Vehicle / Equipment Applications
Flushing A/C systemsCleaning evaporatorsCleaning condensersCleaning A/C linesAutomotive A/C serviceHeavy-duty vehicle A/C service
Weight: 1.5 kg
