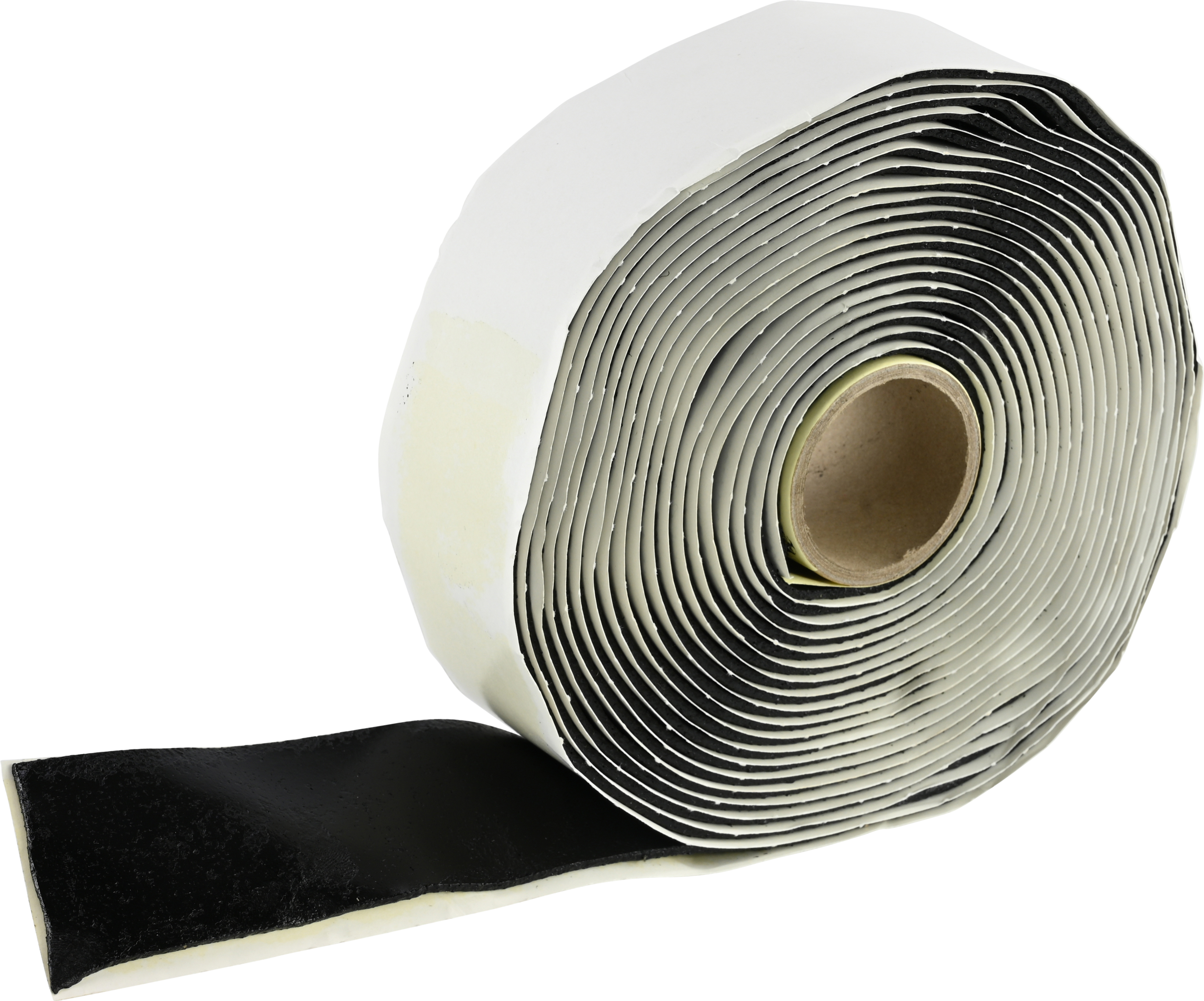

TAPE, 9M (30FT) X 50MM ROLL, TACKY, CORK IMPREGNATED
TA-61003
Description
This tacky, cork-impregnated insulation tape is supplied in a 9-metre (30-foot) roll with a width of 50mm (2 inches) and a thickness of 1/8 inch (3.175mm). It is a self-adhering, polymer-based material containing butyl rubber, asphalt, and 55% granulated cork by volume. Designed for HVAC/R applications, it prevents condensation on cold lines, insulates against heat loss on hot lines, and can be used for sound deadening and gasketing.
Specifications
| length | 9m (30ft) |
| width | 50mm (2 inches) |
| thickness | 3.175mm (1/8 inch) |
| composition | Polymer-based material (butyl rubber, asphalt, 55% granulated cork by volume) |
| operating temperature range | -29°C to +93°C (-20°F to +200°F) |
| thermal conductivity | 1.26 BTU (K-Factor) |
| ozone resistance | Excellent |
| water absorption | 0.02% |
| water vapor permeability | <0.21 perms |
| adhesion | Self-adhering, adheres firmly to all metals |
Vehicle / Equipment Applications
HVAC/R insulationCondensation prevention on pipes, fittings, and tubingHeat loss insulation on hot pipesSound deadeningGasketing
Weight: 1 kg
