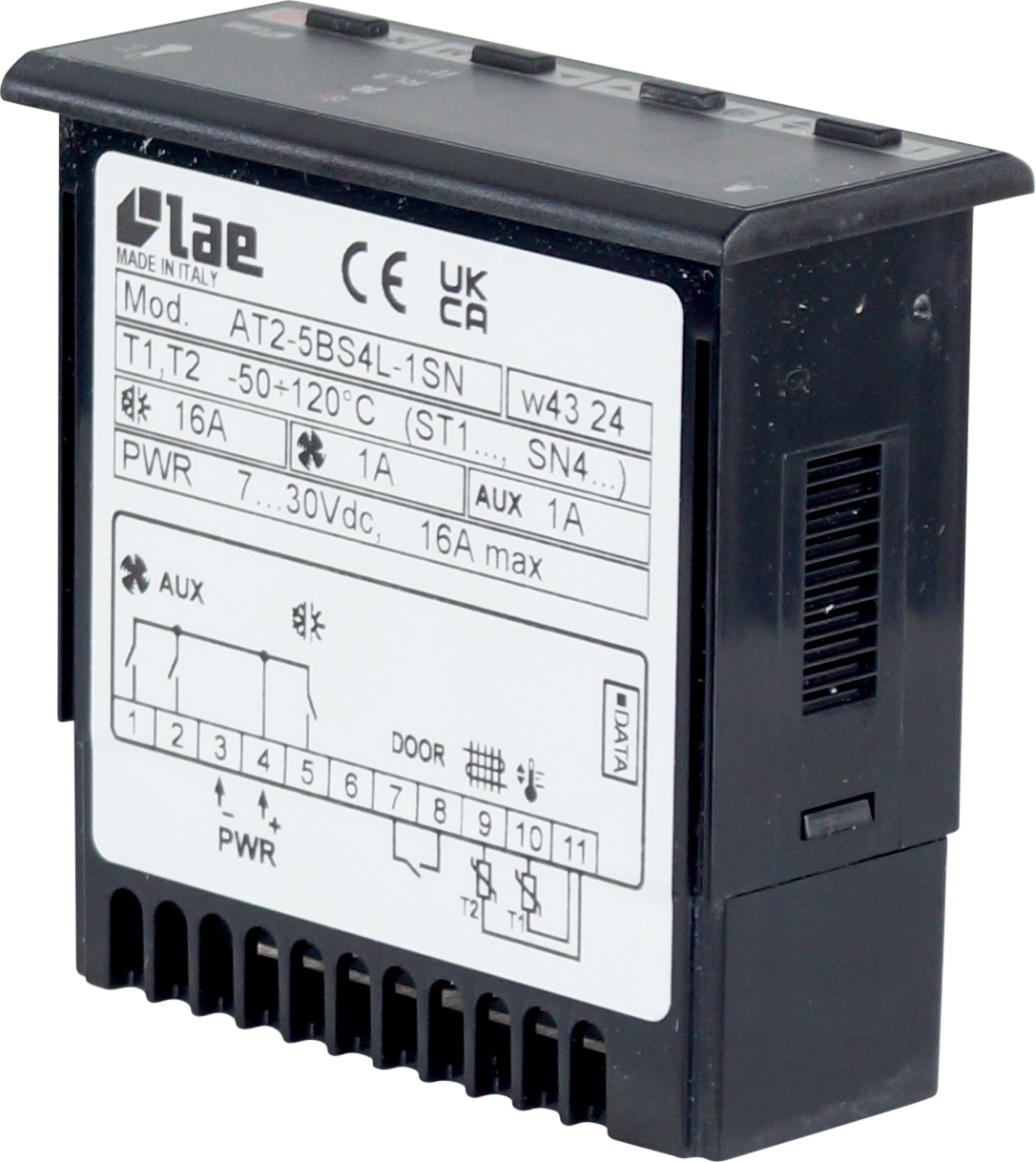

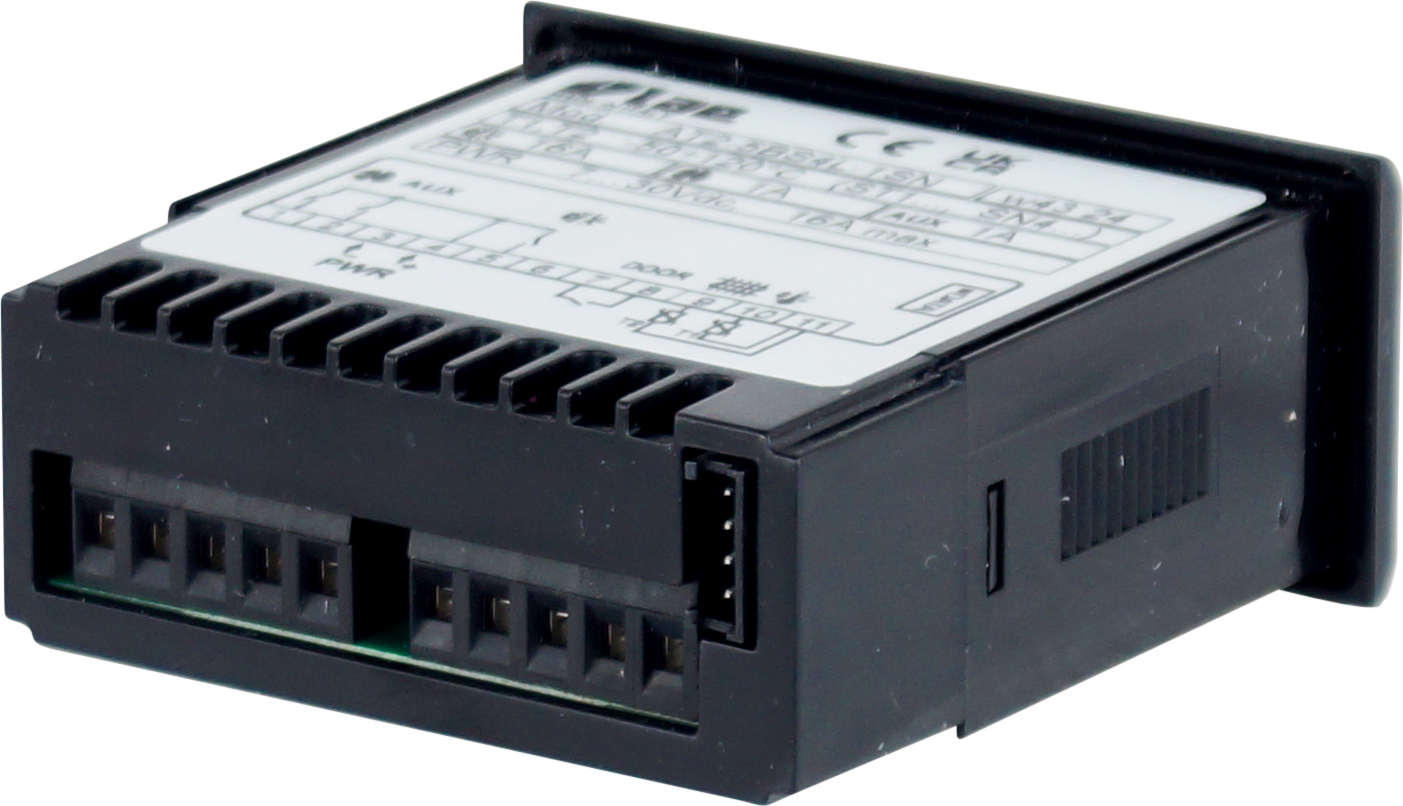

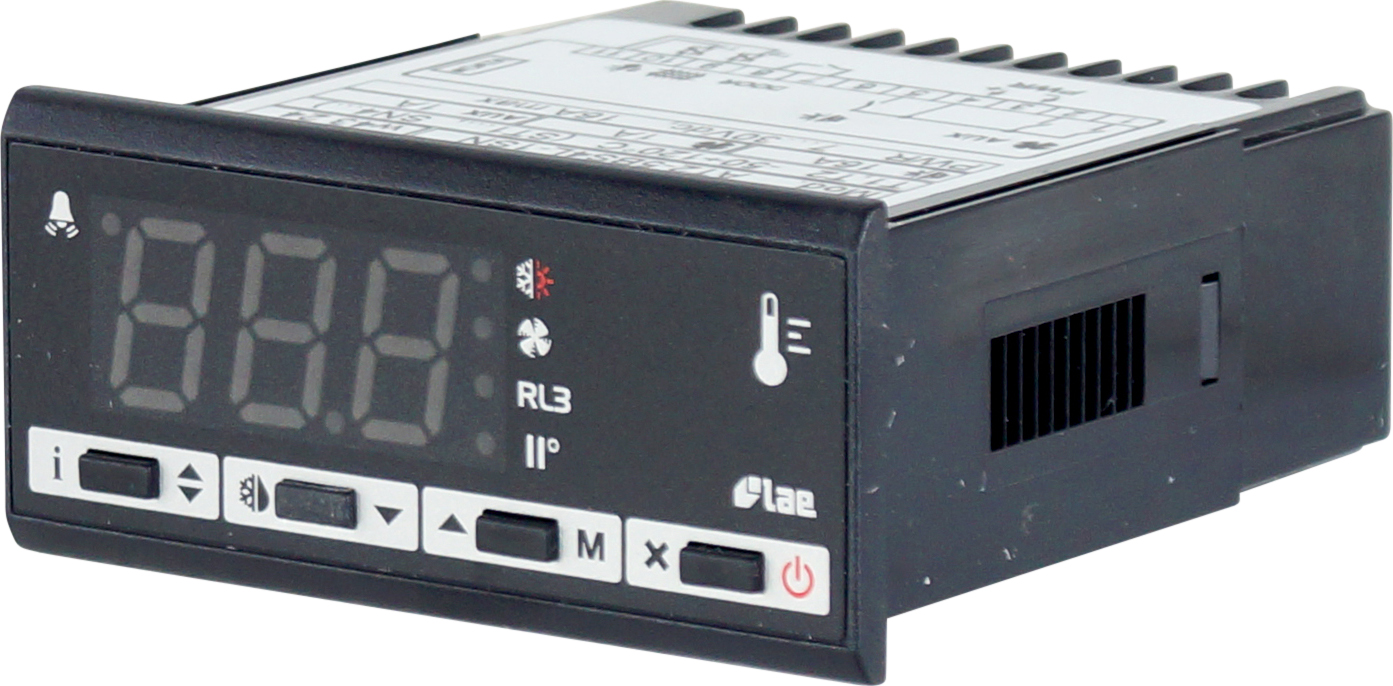

CONTROLLER, CABIN, LAE ELECTRONICS, AT2-5, WITH FAN, THERMOSTAT, COMPRESSOR CONTROL
SWE-41236
Description
The LAE Electronics AT2-5 is a digital cabin controller providing comprehensive control for both refrigeration and heating applications. It integrates fan, thermostat, and compressor control functions with configurable auxiliary outputs.
Specifications
| brand | LAE Electronics |
| model | AT2-5 |
| control range | -50°C to 120°C |
| power supply | 230VAC, 50/60Hz |
| outputs | 16(5)A compressor relay, 7A fan relay, 7A auxiliary relay |
| inputs | NTC10K or PTC temperature sensors, evaporator probe, door switch |
| dimensions | 77mm H x 35mm W x 77mm D (panel cut-out 71x29mm) |
| features | Selectable refrigerating/heating control, electrical/off-cycle/hot gas defrost, temperature/door open alarms, optional light control, connectivity to LAE supervisory systems, UL approved |
Vehicle / Equipment Applications
High or low temperature upright cabinetsCountersCold storesPlug-in display casesControl panelsHeated cabinets
Weight: 0.3 kg
