Denso
Pressure Switches

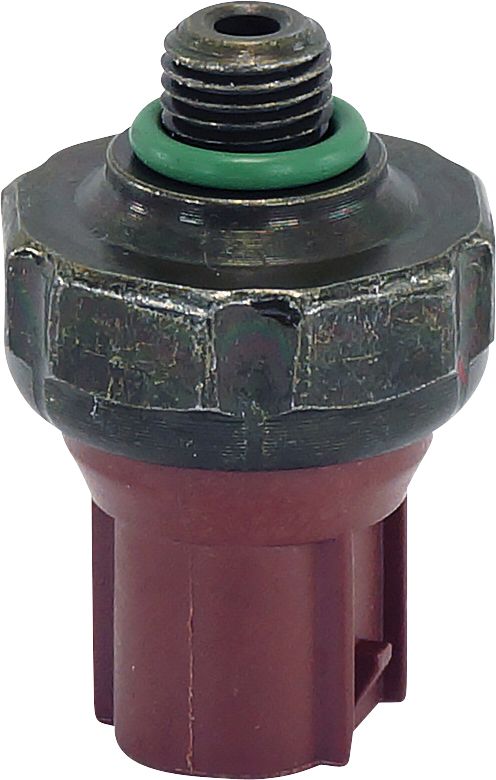

PRESSURE SWITCH, BINARY, MALE 3/8 INCH X 24 UNF, DENSO, MITSUBISHI
SW-90681
Description
This Denso binary pressure switch features a male 3/8 inch x 24 UNF thread, designed for integration into automotive air conditioning systems. It provides both high and low-pressure cut-out functions to protect the compressor from damage due to extreme refrigerant pressures.
Specifications
| thread size | Male 3/8" x 24 UNF |
| type | Normally Open |
| low pressure opens | 20 PSI Falling Pressure |
| low pressure closes | 24 PSI Rising Pressure |
| high pressure opens | 450 PSI Rising Pressure |
| high pressure closes | 355 PSI Falling Pressure |
| voltage | 12V |
| OEM cross references | UAC SW 10068C, AC Delco 1551129, Four Seasons 36574, Global Parts Distributors 1711421, NAPA 207457, Omega MT0201, Santech MT0201, Valtra Valmet V39418000, UAC SW 9066C, AC Delco 155920, Four Seasons 35829, Global Parts Distributors 1711281, NAPA 207092, Omega 2930703, Santech MT0374, Visteon 320014 |
Vehicle / Equipment Applications
Mitsubishi Pajero NJ (1991-2000)Mitsubishi Pajero NL (1991-2000)
Weight: 0.15 kg
