Pressure Switches

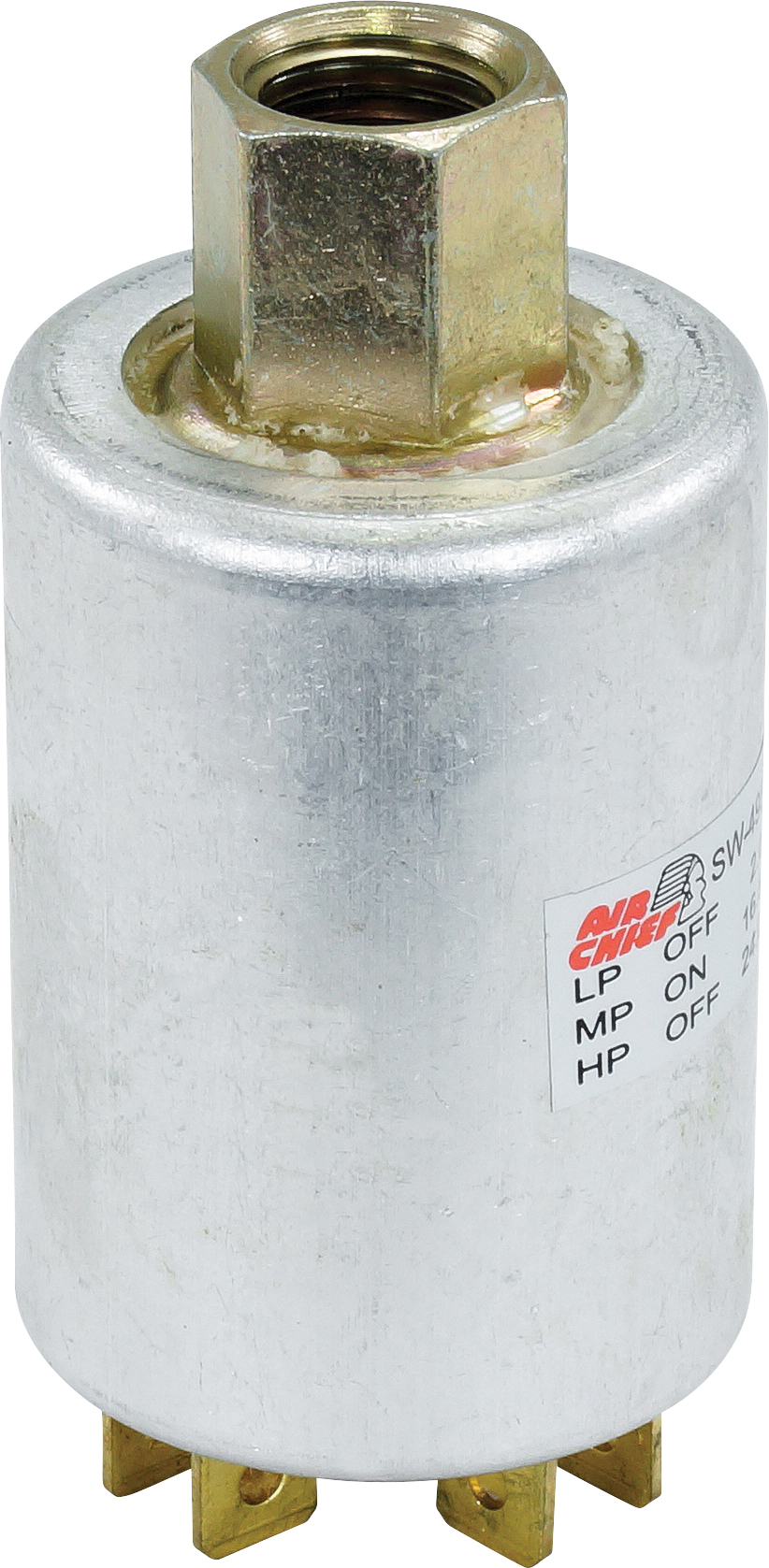

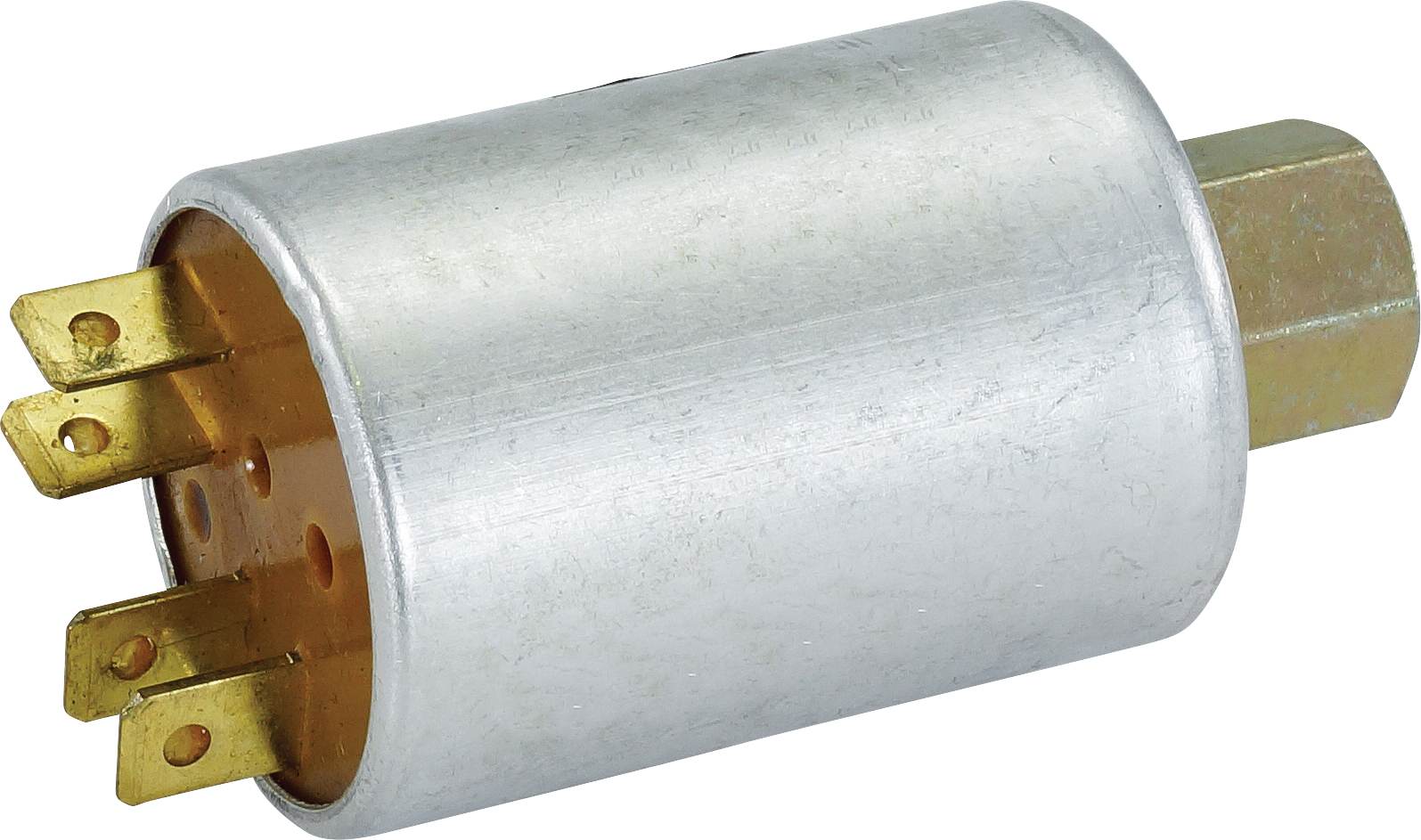

PRESSURE SWITCH, TRINARY, FEM, CUT-OUT HIGH 325PSI LOW 22PSI, NORMALLY OPEN
SW-49590
Description
This trinary pressure switch features a female fitting and is designed to protect the AC compressor by cutting out at a high pressure of 325 PSI and a low pressure of 22 PSI. It also incorporates a fan control function and is normally open.
Specifications
| normally open | true |
| high pressure cut out | 325 PSI |
| low pressure cut out | 22 PSI |
| thread | 7/16-20 Female |
| terminals | 4 |
| voltage | 12/24V |
| connector | .250 Male Spade |
| oem cross references | RD-5-4585-0, 1-4512, 11-2624, 1560, 1676658C1, 207094, 20709400B, 2299003, 232-8545, 404172, 4379-RD545830, 4379-RD545830P, 4379-RD559770P, 61510-0007, 61522-0007, 650633, 850-8952, 865700BSM, 923-1008, AA8025B, AAA8025B, ABP N83 318029, ABP N83 318149, AM80806, BC10000, E-807252, E4HS-14086-AA, K301-239, K301-313-1, PB7620, RD-5-4583-0P, RD545830, RDHRD545830P, RDT71R7550, ZGG19280 |
Vehicle / Equipment Applications
Heavy-duty truck AC systems
Weight: 0.15 kg
