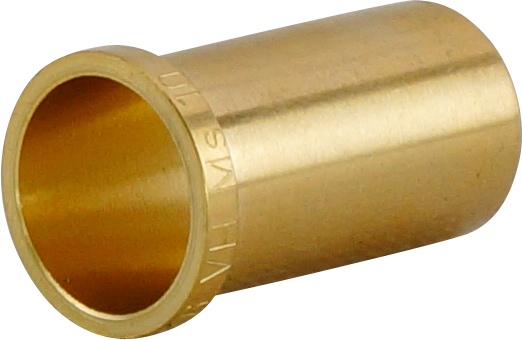

HOSE REPAIR FITTING, LOKRING, STABILISATION INSERT, 16MM
HR-81010
Description
This Lokring stabilisation insert is designed for use with Lokring connections, providing additional mechanical stability and aiding in the calibration of coiled tubes. It is essential for maintaining connection integrity, particularly in aluminium Lokring applications operating above 25 bar (360 psi).
Specifications
| tube diameter compatibility | 16mm (part of a range from 6mm to 41.3mm) |
| max operating pressure | 75 bar (1088 psi) for brass Lokring connections; 25 bar (360 psi) minimum for aluminium connections requiring this insert |
| admissible refrigerants | Suitable for all HFCs and mixtures, all HCs, R32, HFO, and CO2 (up to 75 bar); not suitable for NH3 |
| temperature range | -50 °C to 150 °C (-58 °F to 302 °F) |
| minimum tube wall thickness | 0.7 mm |
Vehicle / Equipment Applications
Refrigeration and air conditioning systemsIndustrial installations requiring solder-free tube connections
Weight: 0.3 kg
