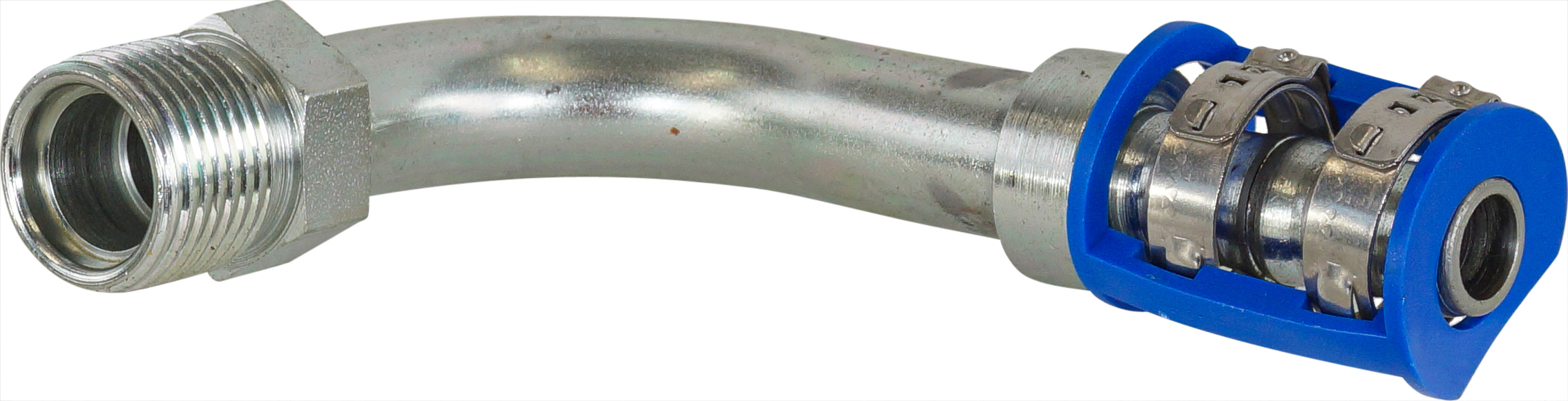

LOKCLIP, #10 MALE INSERT O-RING 90 FITTING QUICK CLIP
HR-54760
Description
This LOKCLIP #10 male insert O-ring 90-degree fitting is designed for quick clip connections in vehicle A/C systems, validated to SAE J2064 standards. It features a one-piece roll-formed steel tube with a non-brazed stem and includes two O-rings for enhanced sealing. The fitting is compatible with #12 (5/8 inch I.D.) hoses and R12 male switch ports, and is engineered for secure, leak-free connections.
Specifications
| fitting end | #10 Male Insert O-ring |
| hose compatibility | #12 (5/8 inch I.D.) hose |
| thread size | 7/8 inch - 14 THD |
| angle | 90 Degree |
| material | Steel (roll formed) |
| seal type | Dual O-ring |
| standards | SAE J2064 |
| max operating pressure | 25 bar (360 psi) |
| admissible refrigerants | R134a, HFO-1234y |
| temperature range | -40°C to 135°C (-40°F to 275°F) |
Vehicle / Equipment Applications
HVAC systemsR12 male switch ports
Weight: 0.3 kg
