Fittings & Hose

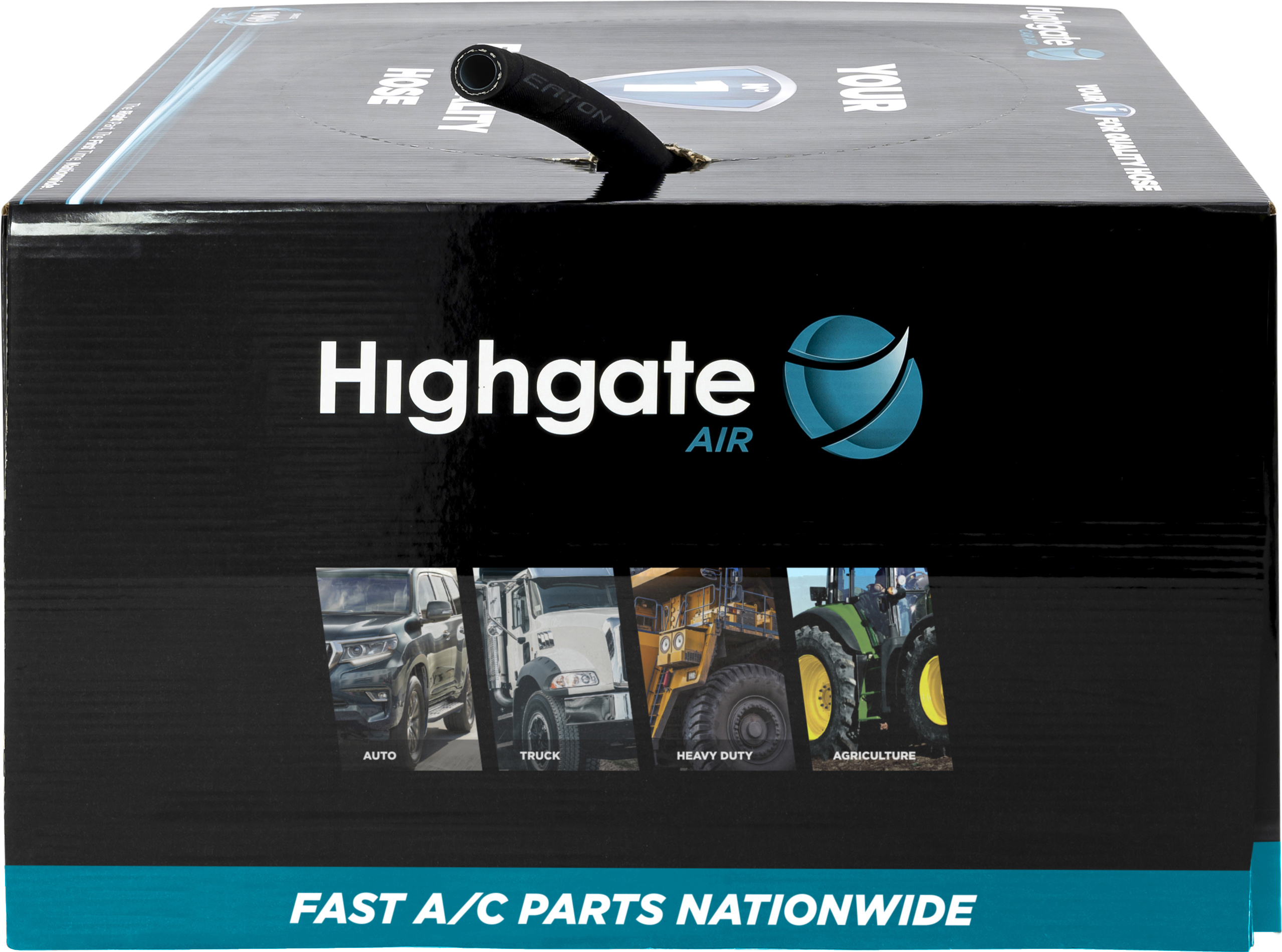

HOSE, REFRIGERANT, EATON E-Z CLIP, GH134 REDUCED BARRIER, #8 (10MM, 13/32 INCH ID), HEAVY DUTY, R134
HOE-22082-30
Description
This is a heavy-duty Eaton E-Z Clip GH134 multi-refrigerant hose designed for R134a systems. It features a reduced barrier construction and has an inside diameter of #8 (10mm, 13/32 inch).
Specifications
| hose id | 10.3mm (0.41 inches) |
| hose od | 17.8mm (0.70 inches) |
| max operating pressure | 35 bar (500 psi) |
| burst pressure | 175 bar (2500 psi) |
| min bend radius | 63.5mm (2.5 inches) |
| temperature range | -40°C to +135°C (-40°F to +275°F) |
| refrigerant compatibility | R134a, R404a, R22 |
| construction | Polyamide veneer tube, synthetic rubber cover, synthetic braided reinforcement |
| sae standard | SAE J2064 Type E Class 1 |
Vehicle / Equipment Applications
Transportation systemsRefrigeration systemsAir conditioning systems
Weight: 0.3 kg
