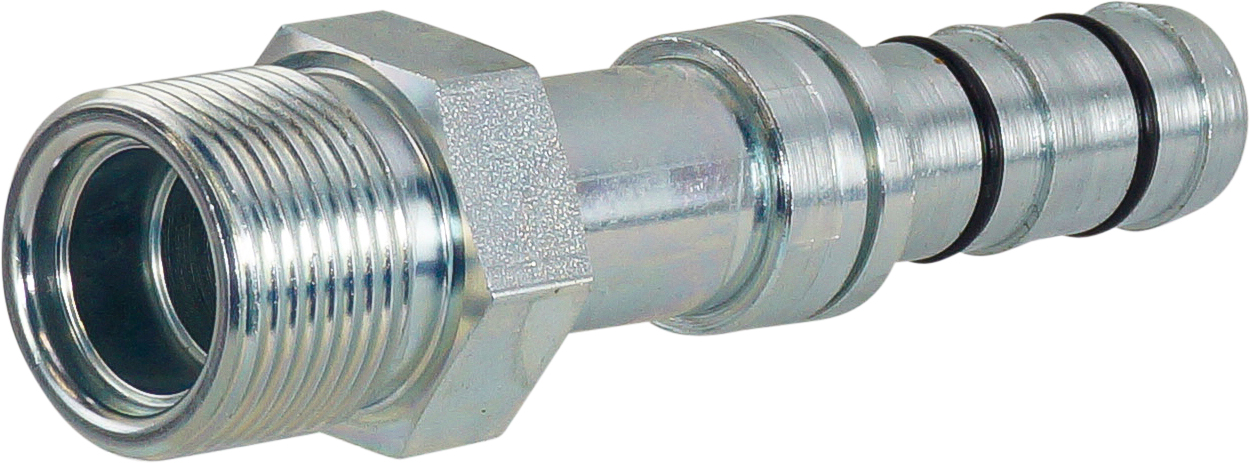

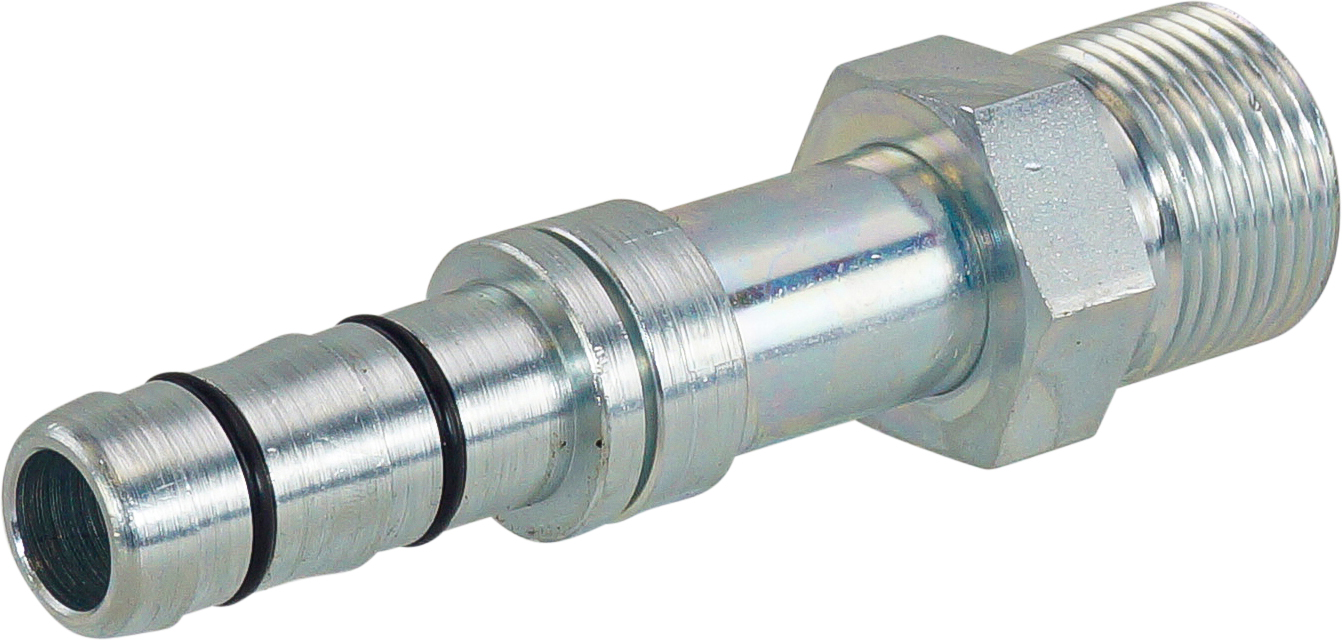

HOSE FITTING, EATON, E-Z CLIP, MIO, STR, #12, STEEL
HFE-85912
Description
This is a straight, #12 male steel hose fitting for the Eaton E-Z Clip air conditioning hose assembly system. It features a 1 1/16 - 14 thread and is designed for re-usable attachment with #12 Aeroquip hose. The E-Z Clip system provides a secure connection with a double O-ring seal and does not require crimp equipment.
Specifications
| Hose Size | #12 |
| Material | Steel |
| Fitting Style | E-Z Clip, Straight, Male |
| Thread | 1 1/16 - 14 |
| Attachment | Re-usable |
| Refrigerant Compatibility | R134a, R1234yf, R407C, R404A, R12 |
| Lubricant Compatibility | POE, PAG, Mineral Oil, Alkybenzene |
| Temperature Range | -40°C to +140°C (-40°F to +284°F) or -30°C to +125°C (-22°F to +257°F) |
| Seal Type | Double O-ring |
| OEM Cross-references | 232-8213, 2503875-0004, 2631204, 409240, 4379-RD5105361, 4379-RD5105361P, 4392EZ, 615-4064, 85100482, 85110670, ABP N83 310732, ABP N83 310732C, FJ3052-1212S, RD-5-10536-1P, RDH5105361P, RDHRD5105361P, RDT70R8302 |
Vehicle / Equipment Applications
Automotive air conditioning systemsTransportation air conditioning systemsRefrigeration air conditioning systemsHeavy duty trucksConstruction equipmentAgricultural equipmentVehicle air conditioning systemsCommercial air conditioning applications
Weight: 0.3 kg
