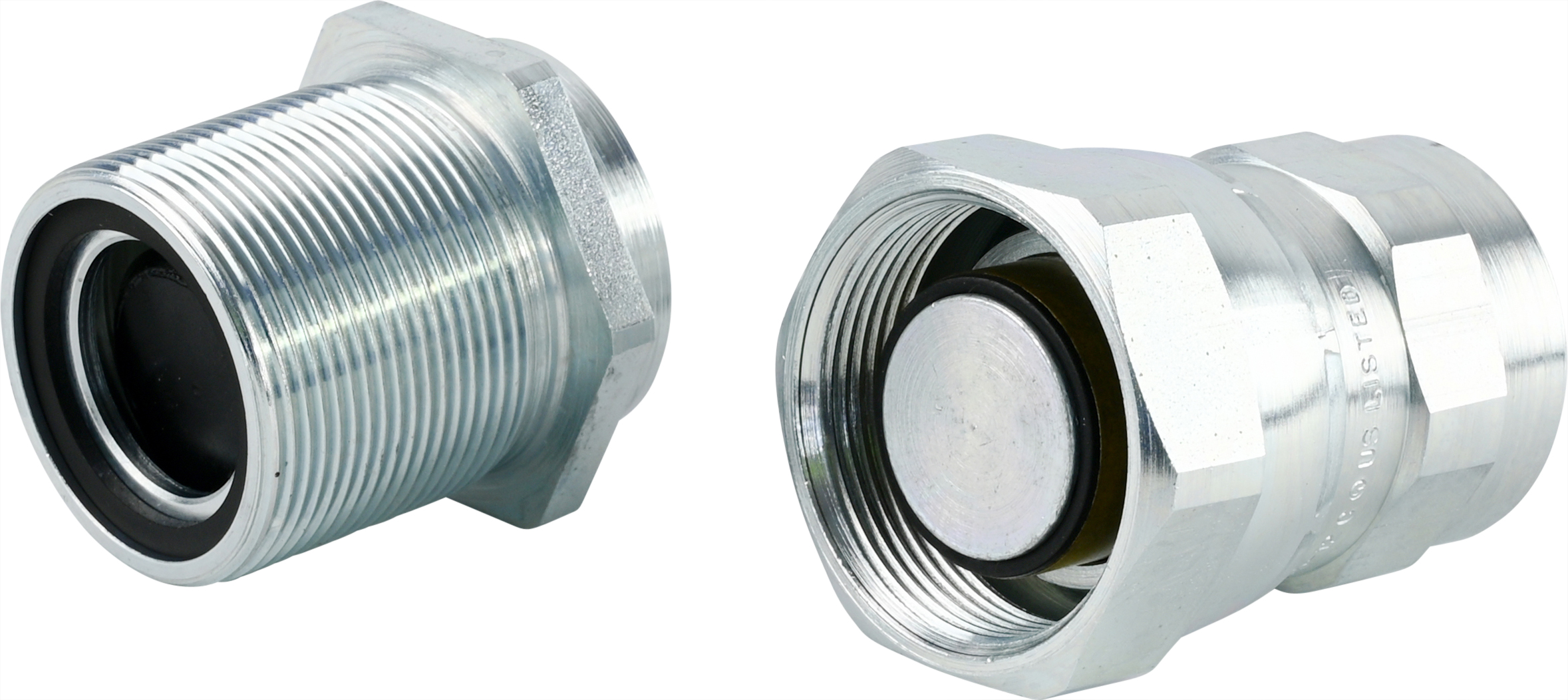

HOSE FITTING, MIO-MIO, #12, STEEL, QUICK-DISCONNECT ASSEMBLY
HF-71972
Description

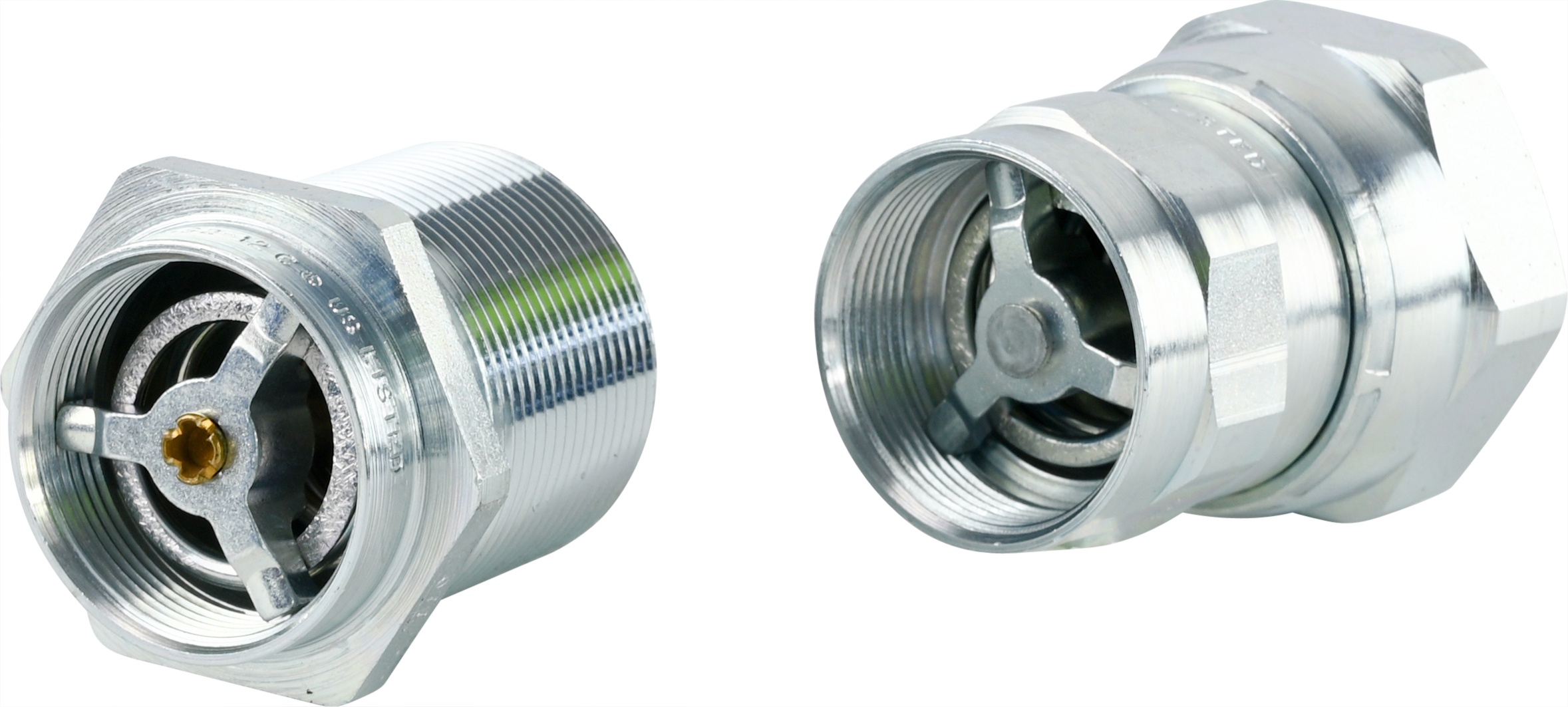

This is a #12 steel quick-disconnect hose fitting assembly, designed for efficient and secure connection and disconnection of hose lines. It features a flush face valve design to minimise fluid loss and air inclusion during operation.
Specifications
| Material | Hardened Steel |
| Body Size | 1/2 inch |
| Port Thread | #12 SAE Thread (3/4 inch O-Ring Boss) |
| Pressure Rating | 5,076 PSI |
| Max Flow Rate | 23.78 GPM |
| Nominal Flow Rate | 12 GPM |
| Seal Material | Buna-N Seals with Teflon backup ring |
| Operating Temperature | Up to 250° F |
| Interchangeability | ISO 16028 standard couplings |
Vehicle / Equipment Applications
Hydraulic linesRV applications (low-pressure propane, 12ft hose with quick-connect)Pressure washer applications
Weight: 0.3 kg
