Fittings & Hose
HOSE FITTING, BARB, MIO, 90 DEG, #6, ALUMINIUM
HF-64876
Description

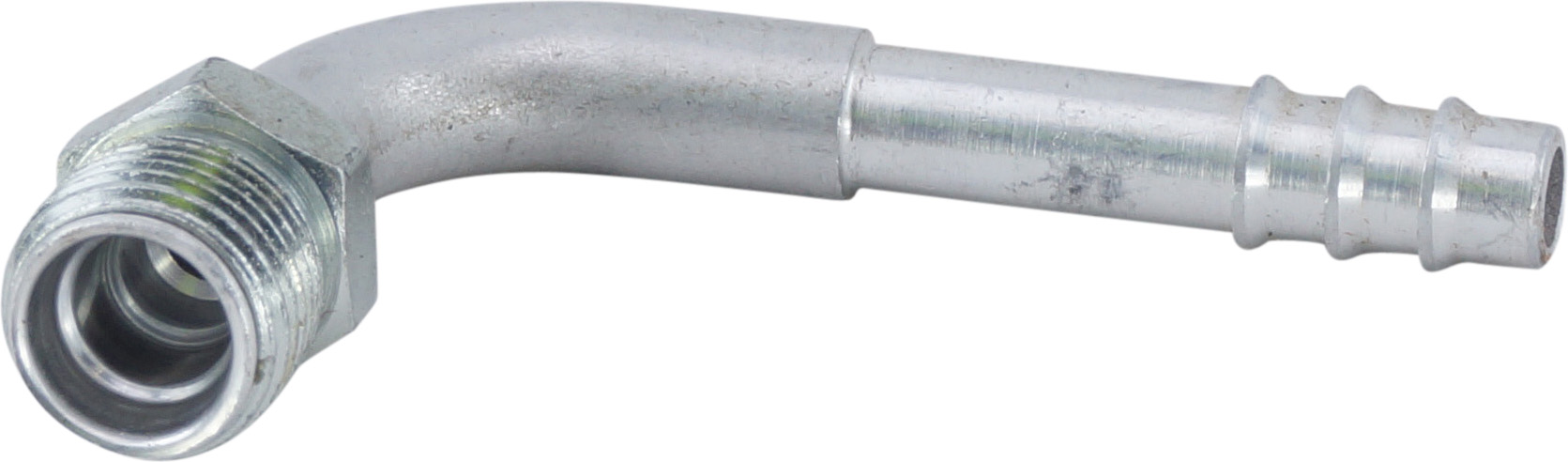

This is a 90-degree Male Insert O-Ring (MIO) barb hose fitting, constructed from aluminium for #6 hose applications. It features a #6 - 18 UNF thread size and is designed for secure barb-style hose connections.
Specifications
| fitting angle | 90 Degree |
| fitting type | Male Insert O-Ring (MIO) Barb |
| hose size | #6 |
| material | Aluminium |
| thread size | #6 - 18 UNF |
| compatible barb size | 3/8" Barb to -6AN O-Ring |
| max operating pressure | 300 psi (20.68 bar) |
| temperature range | -40°F to 302°F (-40°C to 150°C) |
Vehicle / Equipment Applications
Automotive A/C systemsBrakesBreather and vent linesFuel lines (in-tank and outside of tank)Gauge and sensor linesLow-pressure hydraulics (return lines)Vacuum linesOther oil, water, and air systems
Weight: 0.3 kg
