Fittings & Hose

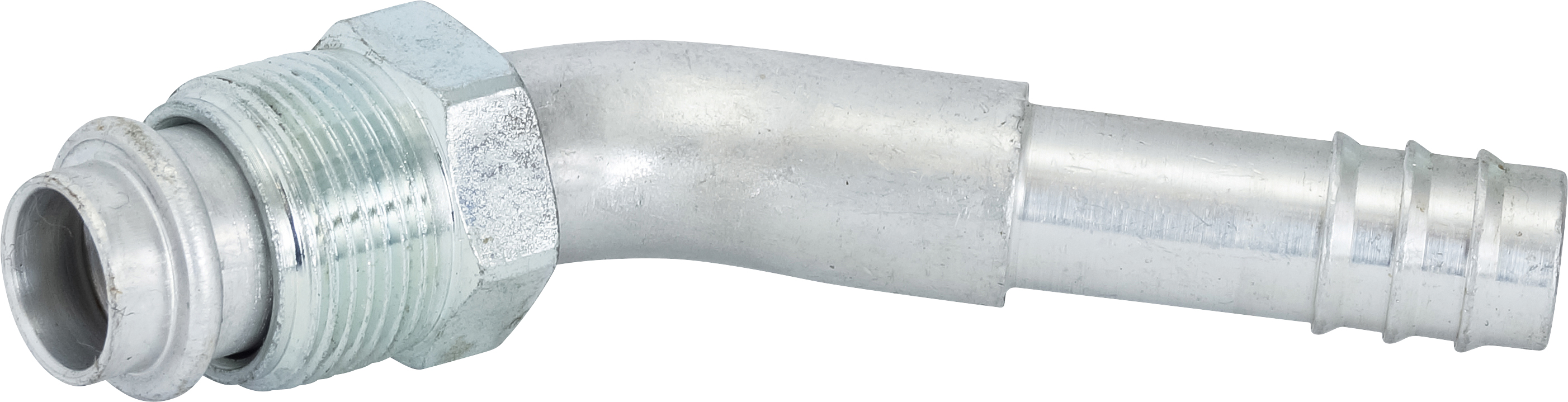

HOSE FITTING, BARB, MOR, 45 DEG, #10, ALUMINIUM
HF-64160
Description
This 45-degree barb hose fitting is constructed from 6061-T6 aluminium, designed for use with #10 AN hose. It features a push-lock style connection, suitable for soft rubber or socketless hoses. For optimal security, especially at pressures above 10 psi, hose clamps are recommended.
Specifications
| angle | 45 Degree |
| size | #10 AN |
| material | 6061-T6 Aluminium |
| barb size | 5/8 inch |
| thread size | 7/8-14UNF (-10 AN Female) |
| working pressure | Up to 1500 PSI |
| working temperature | -40°F to 250°F |
Weight: 0.3 kg
