Fittings & Hose

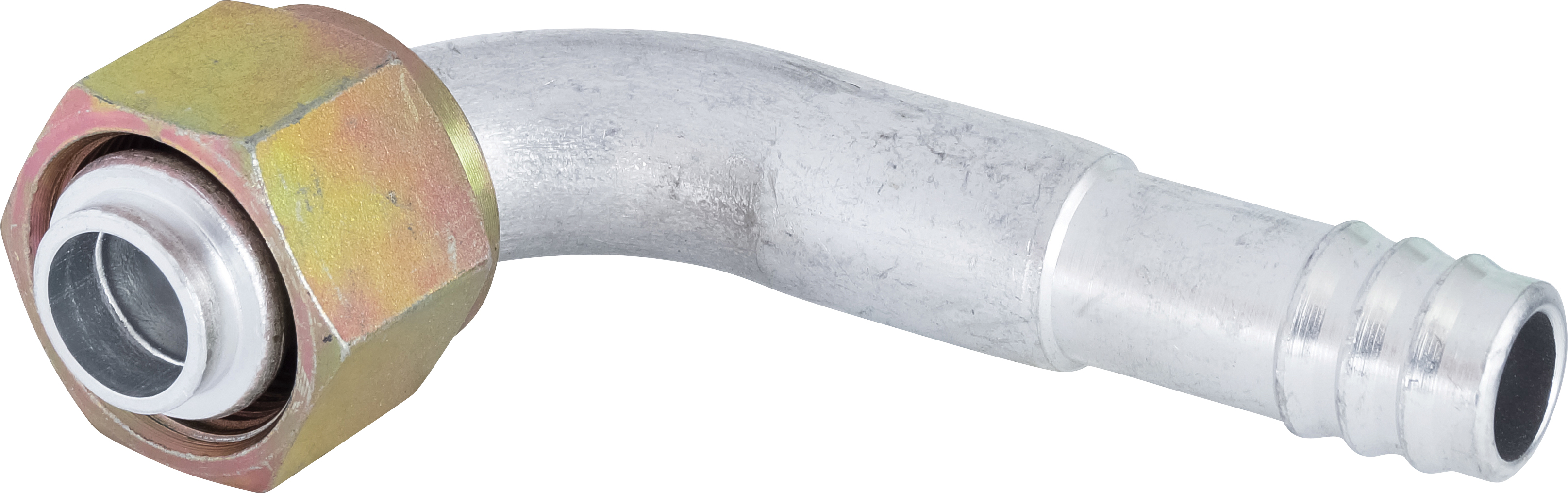

HOSE FITTING, BARB, FOR, 90 DEG, #12, ALUMINIUM
HF-63592
Description
This is a 90-degree barb hose fitting constructed from aluminium, designed for #12 hose applications. It features a female O-ring connection for a secure seal. This fitting is typically used in air conditioning systems to create a tight, angled connection.
Specifications
| Angle | 90 degrees |
| Size | #12 AN |
| Material | Aluminium (6061 T-6 alloy) |
| Connection Type | Barb, Female O-ring |
| Maximum Operating Pressure | Up to 17.24 bar (250 psi) |
| Maximum Operating Temperature | Up to 150°C (302°F) |
Vehicle / Equipment Applications
Breather and vent linesFuel (in-tank and outside of tank)Gauge and sensor linesLow pressure hydraulics (return lines)Vacuum linesOther oil, water, and air systems
Weight: 0.3 kg
