Fittings & Hose

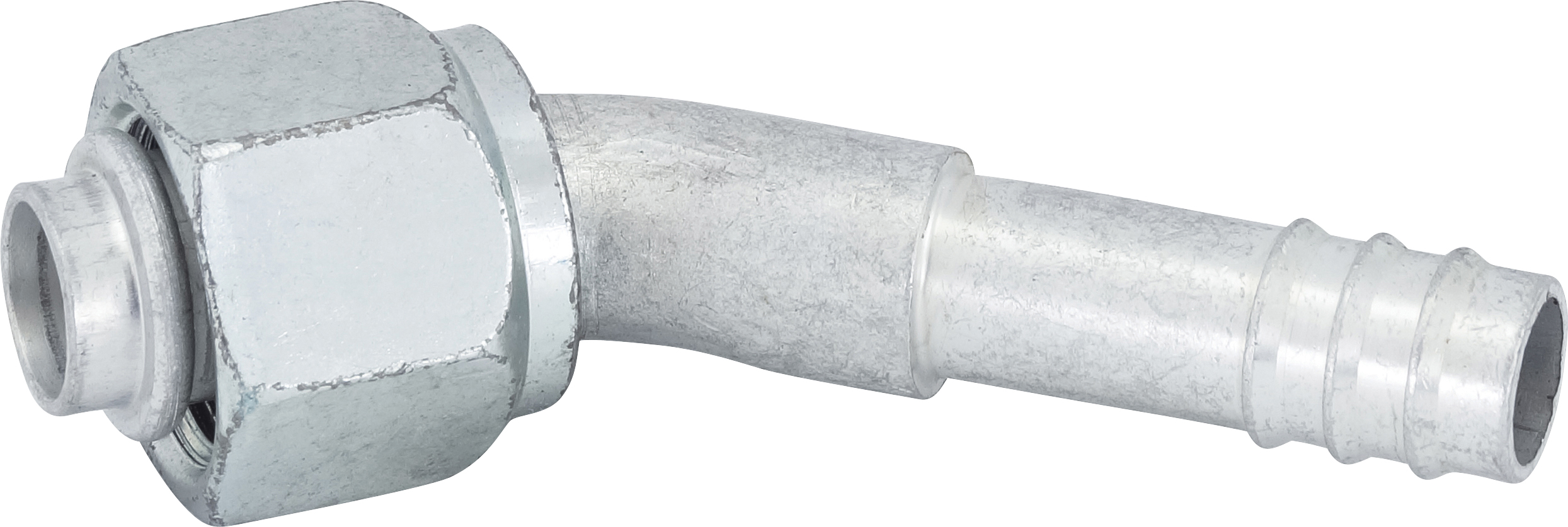

HOSE FITTING, BARB, FOR, 45 DEG, #10, ALUMINIUM
HF-63550
Description
This is a 45-degree barb hose fitting, designed for #10 AC refrigerant hose applications. It is constructed from aluminium and typically features an O-ring design for a secure seal. This fitting is suitable for push-lock style hose connections.
Specifications
| angle | 45 degrees |
| size | #10 AN (1/2" I.D. hose, 5/8" barb) |
| material | Aluminium |
| connection type | Barb (push-lock) to Female O-Ring (FOR) or Female AN |
| thread | 14 UNF (for O-ring side) |
Vehicle / Equipment Applications
Automotive AC systemsGeneral fluid transfer (oil, fuel, coolant, vacuum)
Weight: 0.3 kg
