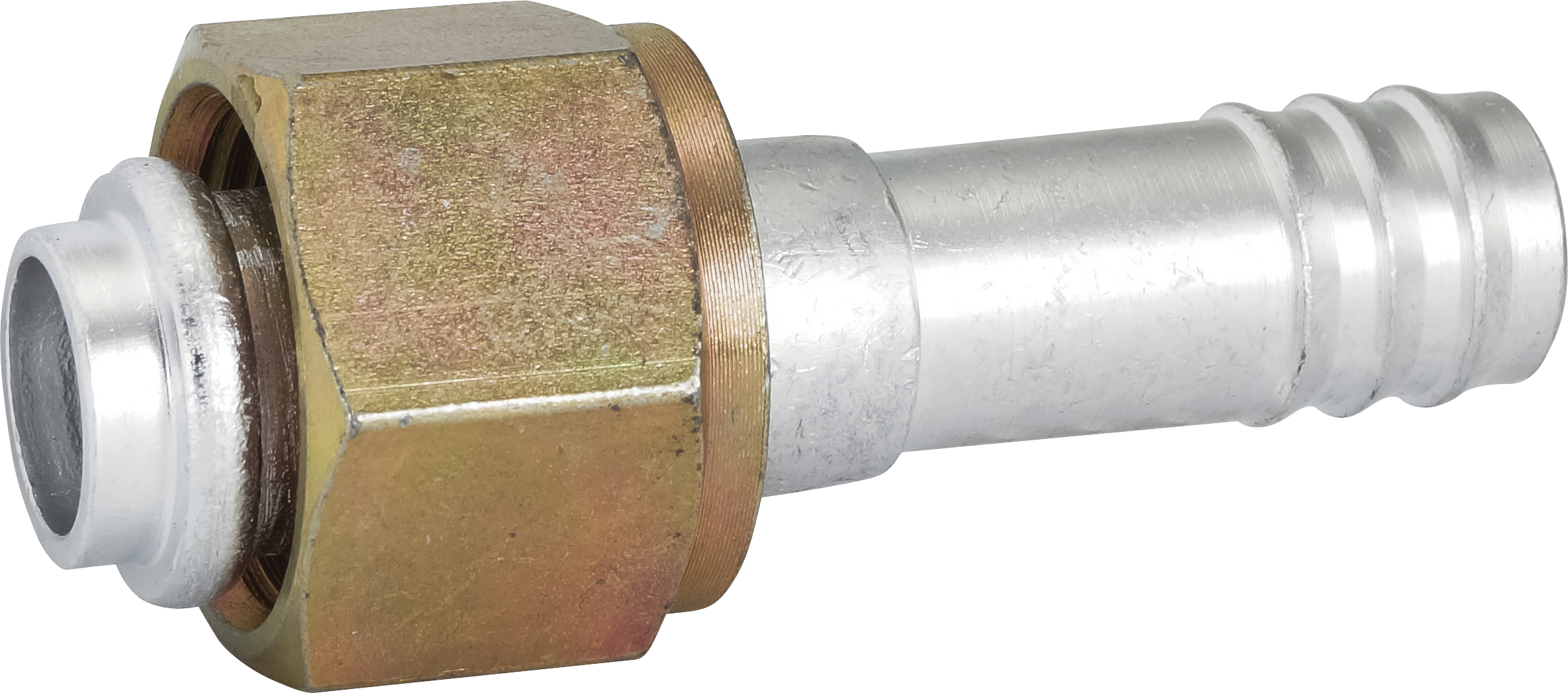

HOSE FITTING, BARB, FOR, STR, #12, ALUMINIUM
HF-63512
Description
The HF-63512 is a straight, female O-ring barb hose fitting constructed from aluminium, designed for #12 (3/4 inch ID) refrigerant hose. It features a 14-UNF thread for secure connection within air conditioning systems.
Specifications
| Material | Aluminium |
| Connection Type | Female O-Ring Barb, Straight |
| Hose Size | #12 (3/4 inch ID) |
| Thread | 14-UNF |
| Typical Working Pressure | Up to 150 psi |
| Typical Working Temperature | -40°C to 71°C (-40°F to 160°F) |
Vehicle / Equipment Applications
General automotive and heavy equipment air conditioning systems
Weight: 0.3 kg
