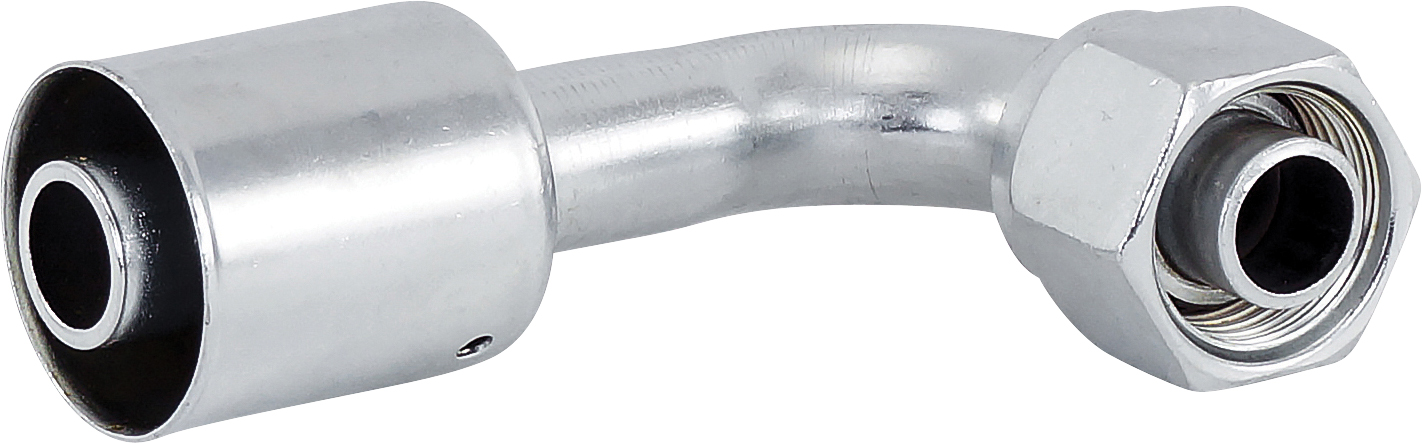

HOSE FITTING, BEADLOCK, FOR, 90 DEG, #10, #12, STEEL, STANDARD, STEP-UP
HF-61120
Description
This is a steel, 90-degree beadlock hose fitting designed for automotive and heavy equipment air conditioning systems. It is a crimp-type fitting that connects a #10 fitting size to a #12 reduced diameter barrier AC hose, functioning as a step-up connector.
Specifications
| material | Steel |
| angle | 90 degrees |
| hose size | #12 reduced diameter barrier AC hose |
| fitting size | #10 |
| attachment type | Permanent Crimp |
| oem cross references | 2088928-0006, 232-8276, 35-R1427-STL, 4379-RD589510, 4379-RD589510P, 4401SR, 610-4974, ABP N83 310520, E-808822R-10-12, FT54974, RD-5-8951-0P, RDH RD5 8951 0, RDHRD589510P, RDT70R9791S |
Weight: 0.3 kg
