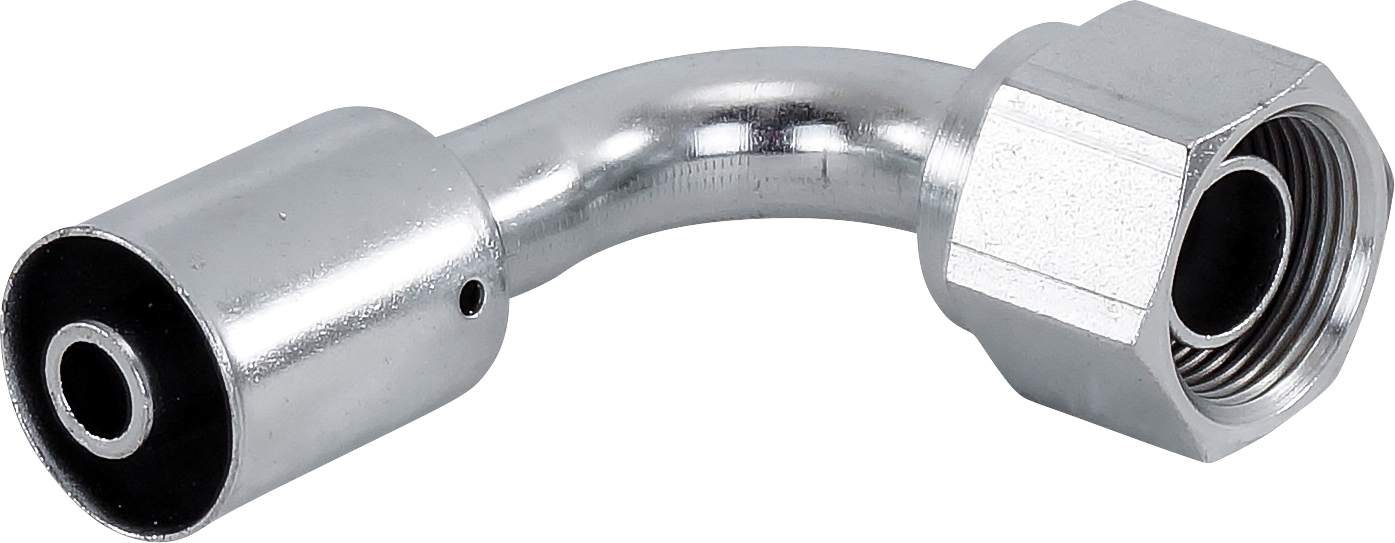

HOSE FITTING, BEADLOCK, FOR, 90 DEG, #12, #10, STEEL, STANDARD, STEP-DOWN
HF-61090
Description
This 90-degree step-down beadlock hose fitting is constructed from steel, designed to connect a #12 standard AC hose to a #10 standard AC hose. It features a female O-ring seal and is intended for use with a crimper tool for secure attachment.
Specifications
| type | Step-down beadlock |
| angle | 90 degrees |
| material | Steel |
| hose size | #12 to #10 |
| connection | Female O-ring, standard beadlock |
Vehicle / Equipment Applications
AC systems in heavy equipment where a reduction in hose size from #12 to #10 is required with a 90-degree bendAutomotive AC systems where a reduction in hose size from #12 to #10 is required with a 90-degree bend
Weight: 0.3 kg
