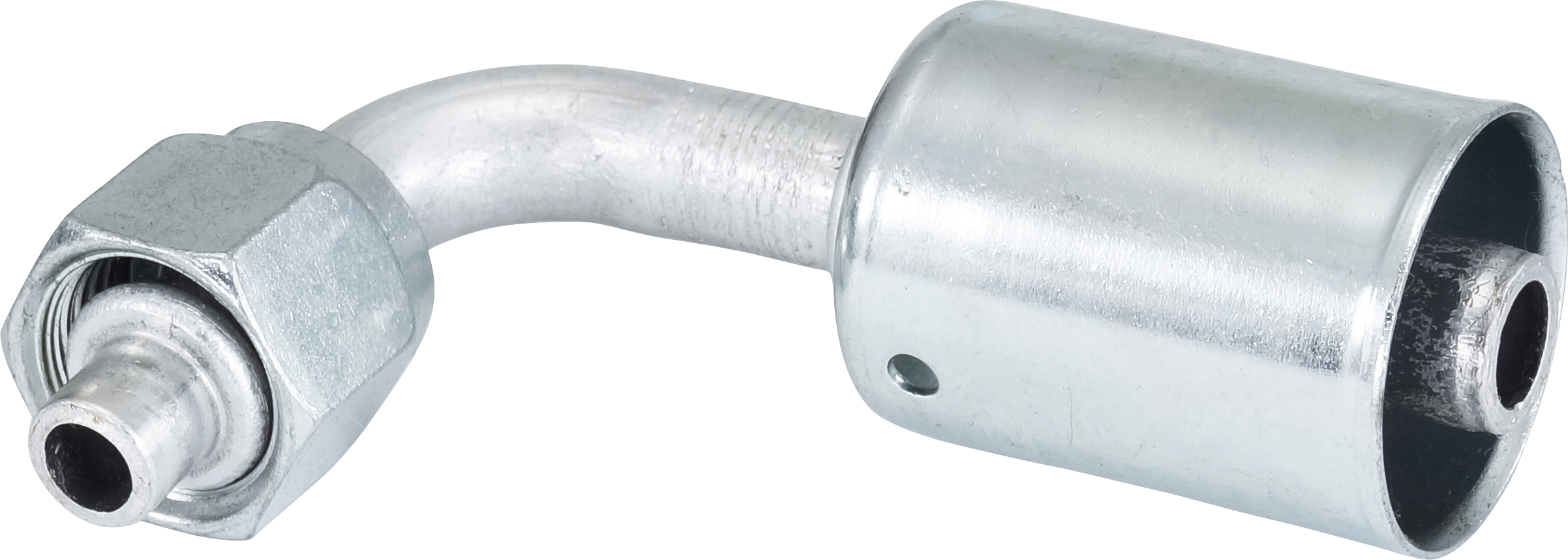

HOSE FITTING, BEADLOCK, FOR, 90 DEG, #6, #8, ALUMINIUM, STANDARD, STEP-UP
HF-60886
Description
This is a step-up beadlock hose fitting for air conditioning systems, featuring a 90-degree bend. It is designed to connect a #6 standard hose to a #8 fitting and is constructed from aluminium.
Specifications
| hose size | #6 standard diameter barrier AC hose |
| fitting size | #8 |
| angle | 90 degrees |
| material | Aluminium |
| fitting type | Beadlock, Female O-ring, Step-up |
| thread | 3/4-16 (for #8 fitting end) |
Vehicle / Equipment Applications
Mobile air conditioning systemsConnecting #6 standard diameter barrier AC hose to #8 components
Weight: 0.3 kg
